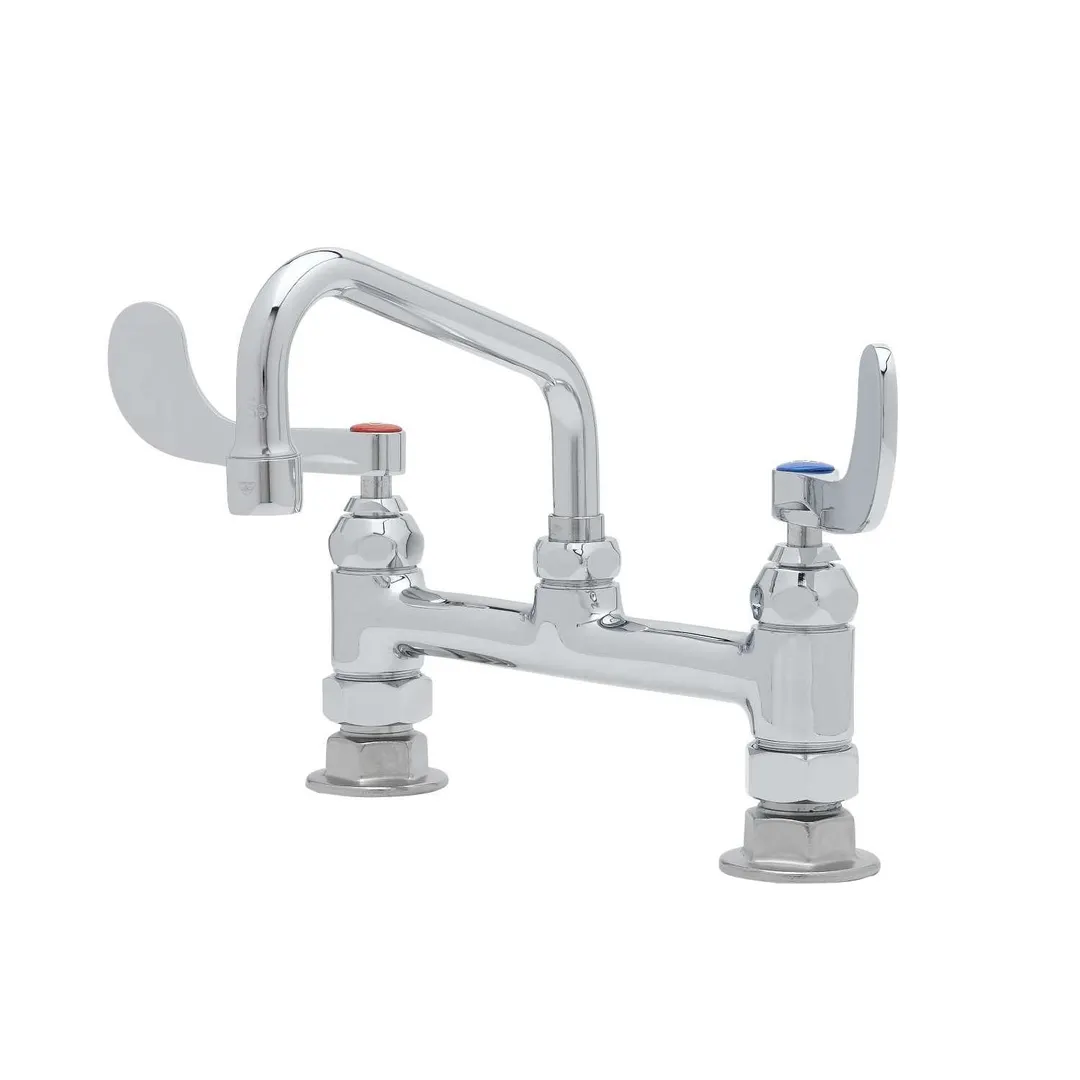

T&S Brass B-0220-061X-WH4 Double Pantry Faucet
General Info
The B-0220-061X-WH4, 8" deck mount mixing faucet with polished chrome plated brass body, 10" swing nozzle with stream regulator outlet, compression cartridges with spring checks, 4" wrist action handles and 1/2" NPT female inlets.
T&S Brass B-0220-061X-WH4 Features
- 8” deck mount mixing faucet with polished chrome plated brass body
- 10” swing nozzle
- Lock washer provided for rigid application
- Stream regulator outlet, Series 1
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent the cross flow of water
- 4" wrist action handles w/ color coded indexes
- 1/2” NPT female eccentric inlets w/ Ø 2” flanges
- Adjustable centers from 7 3/4” to 8 1/4”
- Material: Polished chrome plated brass body & tubular spout and chrome plated metal handles
T&S Brass B-0220-061X-WH4 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 18.39 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Mixing Faucet, deck mount, 8" adjustable center, 10" swing nozzle with stream regulator outlet (061X), lock washer included, quarter-turn Eterna cartridges with spring checks, 4" wrist action handles with color coded indexes, 1/2" NPT inlets, polished chrome-plated brass body, low lead content, ADA Compliant
