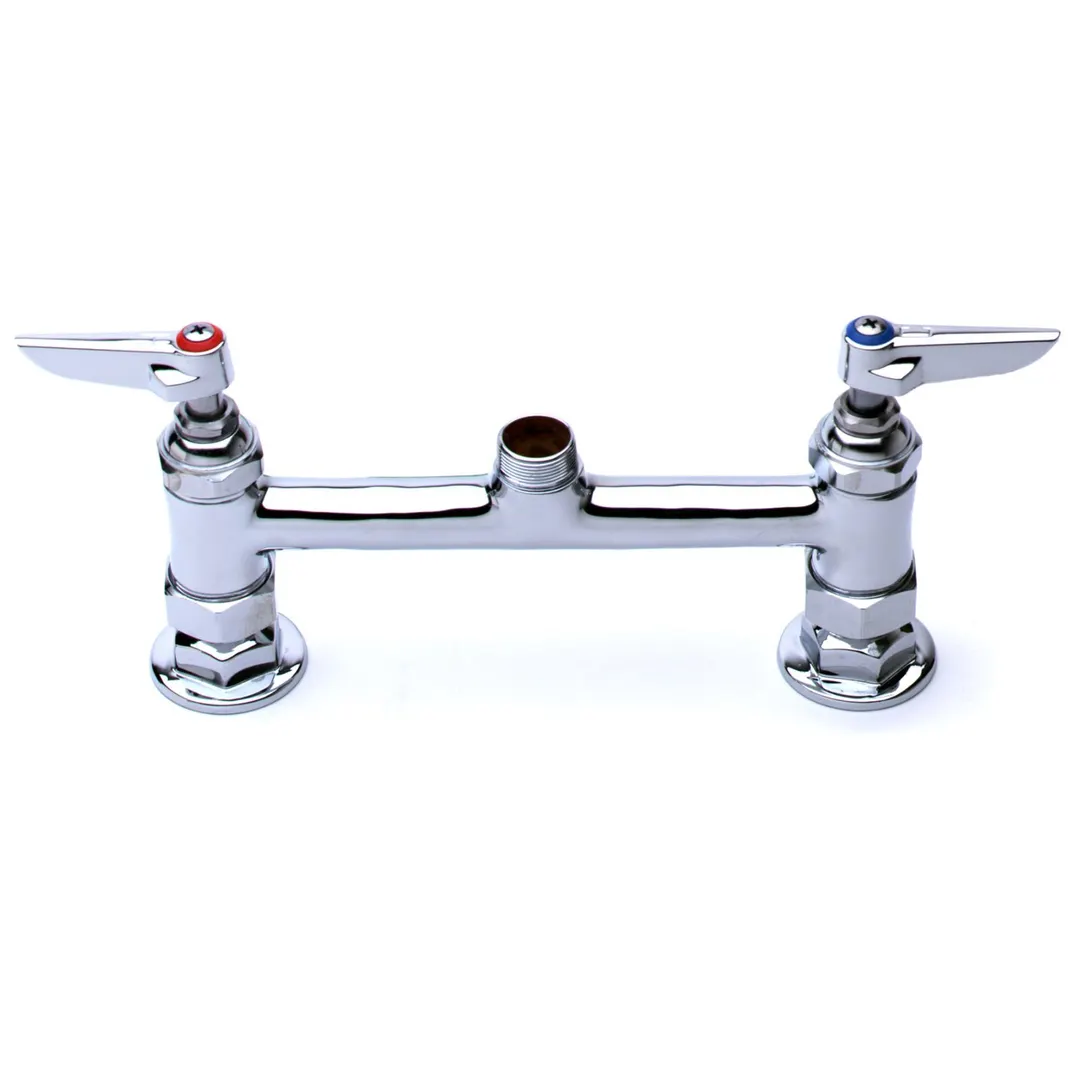

T&S Brass B-0220-LN Deck Mixing Faucet
General Info
The B-0220-LN, 8" deck mount mixing faucet with polished chrome plated brass body, swivel outlet (less nozzle), compression cartridges with spring checks, lever handles, and 1/2" NPT female inlets.
T&S Brass B-0220-LN Features
- 8” deck mount mixing faucet with polished chrome plated brass body
- Swivel outlet accepts T&S swing nozzles
- Lock washer provided for rigid application
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent the cross flow of water
- Lever handles w/ color coded indexes
- 1/2” NPT male inlets w/ Ø 2” flanges
- Adjustable centers from 7 3/4” to 8 1/4”
- Material: Polished chrome plated brass body and polished chrome plated metal handles
T&S Brass B-0220-LN Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 28.63 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Mixing Faucet, deck mount, 8" centers with 1/2" IPS eccentric flanged female inlets, less nozzle, quarter-turn Eterna cartridges with spring checks, lever handles, low lead, ADA Compliant
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
