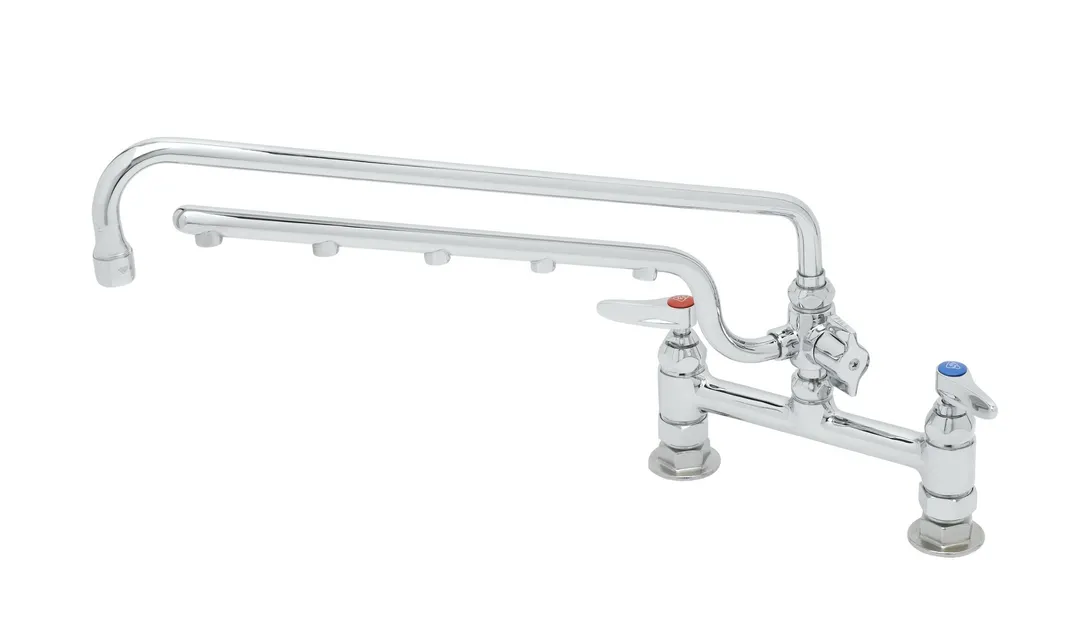

T&S Brass B-0220-U18 ULTRARINSE Deck Mount Mixing Faucet
General Info
The B-0220-U18, 8" deck mount mixing faucet with polished chrome plated brass body, 18" swing nozzle with stream regulator outlet, 1.5 GPM 16" multiple tip spray arm, compression cartridges with spring checks, lever handles, and1/2" NPT female inlets.
T&S Brass B-0220-U18 Features
- 8” deck mount mixing faucet with polished chrome plated brass body
- 18” swing nozzle
- 1.5 GPM 16" ULTRARINSE Multiple Spray Arm
- Lock washer provided for rigid application
- Stream regulator outlet, Series 1
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent the cross flow of water
- Lever handles w/ color coded indexes
- 1/2” NPT female eccentric inlets w/ Ø 2” flanges
- Adjustable centers from 7 3/4” to 8 1/4”
- Material: Polished chrome plated brass body & tubular spout and chrome plated metal handles
T&S Brass B-0220-U18 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate :
- Nozzle: 18.39 GPM [69.6 L/min] @ 60 psi [4.14 bar]
- Spray Arm: 1.5 GPM [5.67 L/min] @ 60 psi [4.14 bar]
- Other Details : See spec. sheet
From The Manufacturer
UltraRinse 8” deck mount mixing faucet with polished chrome plated brass body, 18” swing nozzle with stream regulator outlet, 1.5 GPM 16" multiple tip spray arm, compression cartridges with spring checks, lever handles, and 1/2” NPT female inlets. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.
