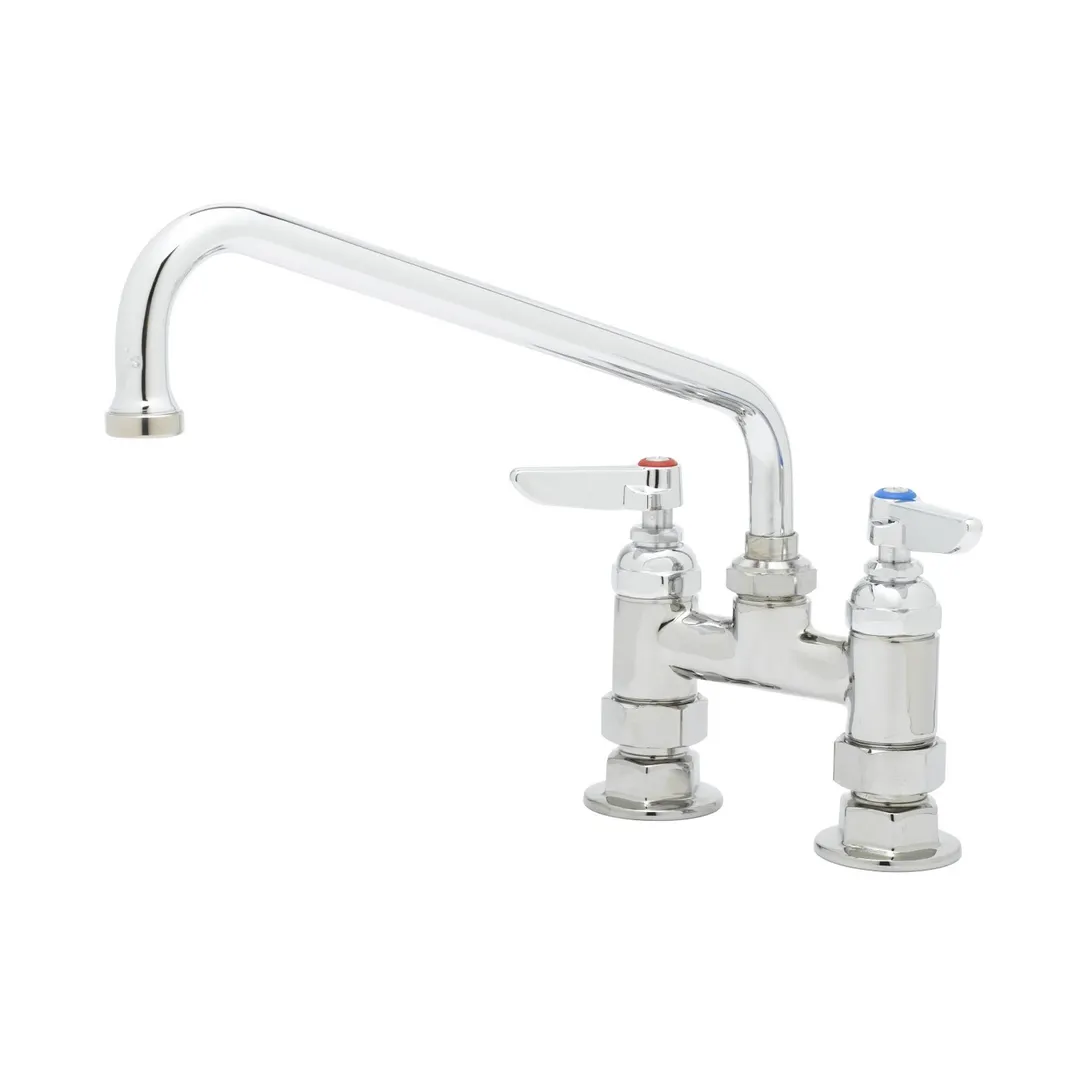

T&S Brass B-0226 Deck Mixing Faucet
General Info
The B-0226, 4" deck mount mixing faucet with polished chrome plated brass body, 10" swing nozzle with stream regulator outlet, compression cartridges with spring checks, lever handles, and 1/2" NPT female inlets.
T&S Brass B-0226 Features
- 4” deck mount mixing faucet with polished chrome plated brass body
- 10” swing nozzle
- Lock washer provided for rigid application
- Stream regulator outlet, Series 1
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent the cross flow of water
- Lever handles w/ color coded indexes
- 1/2” NPT female eccentric inlets w/ Ø 2” flanges
- Adjustable centers from 3 3/4” to 4 1/4”
- Material: Polished chrome plated brass body & tubular spout and polished chrome plated metal handles
T&S Brass B-0226 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 17.9 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Mixing Faucet, deck mount, 10" swing nozzle, 4" centers with 1/2" IPS eccentric flanged female inlets, quarter-turn Eterna cartridges, lever handles, low lead, ADA Compliant
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
