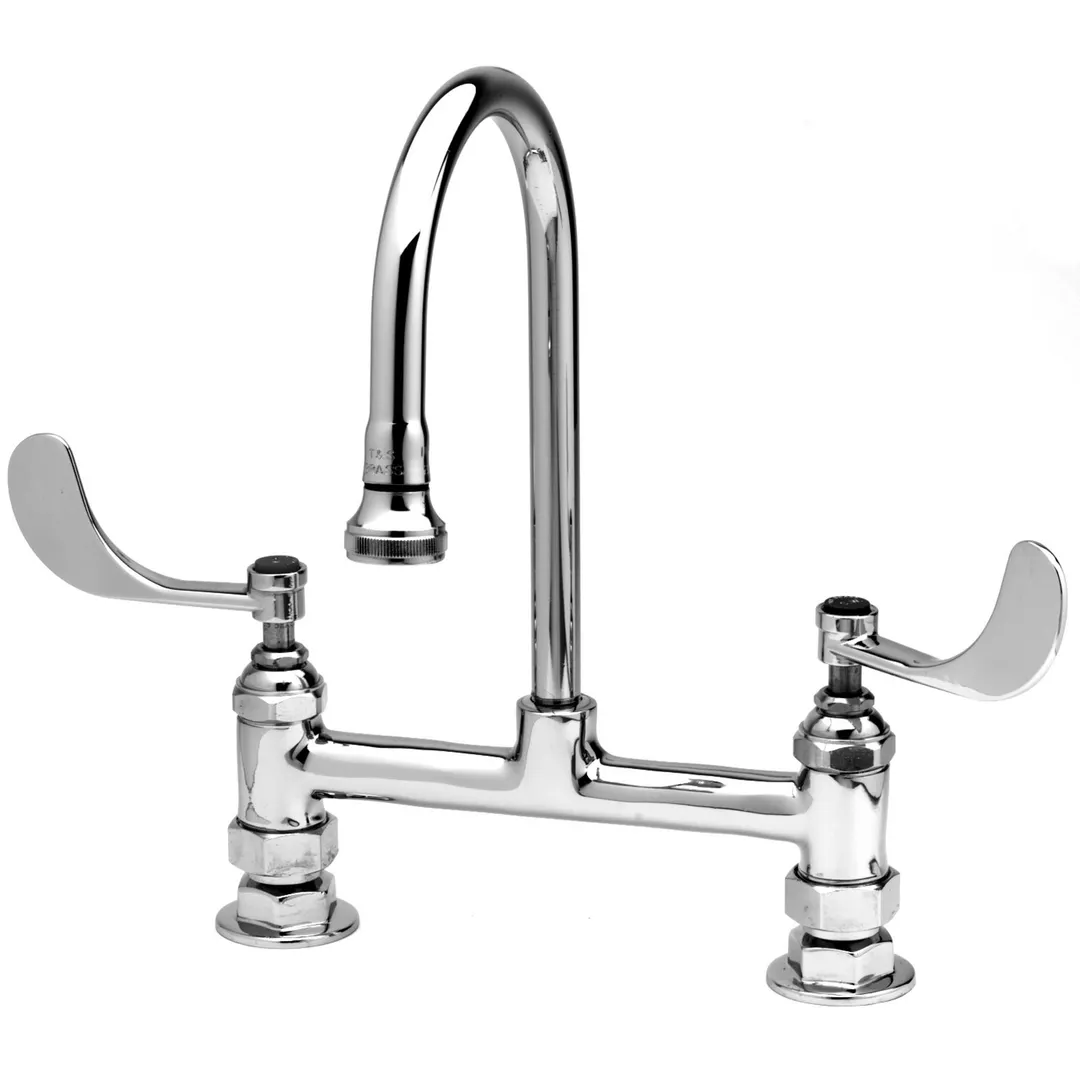

T&S Brass B-0323-04 Surgical Sink Faucet
General Info
The B-0323-04, 8" deck mount mixing faucet with polished chrome plated brass body, 5 3/4" swivel/rigid gooseneck with stream regulator outlet, compression cartridges with spring checks, 4" wrist action handles and 1/2" NPTfemale inlets.
T&S Brass B-0323-04 Features
- 8” deck mount mixing faucet with polished chrome plated brass body
- 5 3/4” swivel/rigid gooseneck
- Lock washer provided for rigid application
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent the cross flow of water
- 4” wrist action handle w/ color coded indexes
- 1/2” NPT female eccentric inlets w/ Ø2” flanges
- Adjustable centers from 7 3/4” to 8 1/4”
- Material: Polished chrome plated brass body, tubular spout and handles
T&S Brass B-0323-04 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 24.60 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Medical Faucet, deck mount, 8" center, rigid gooseneck, 4" wrist action handles, quarter-turn Eterna cartridges, low lead, ADA Compliant
