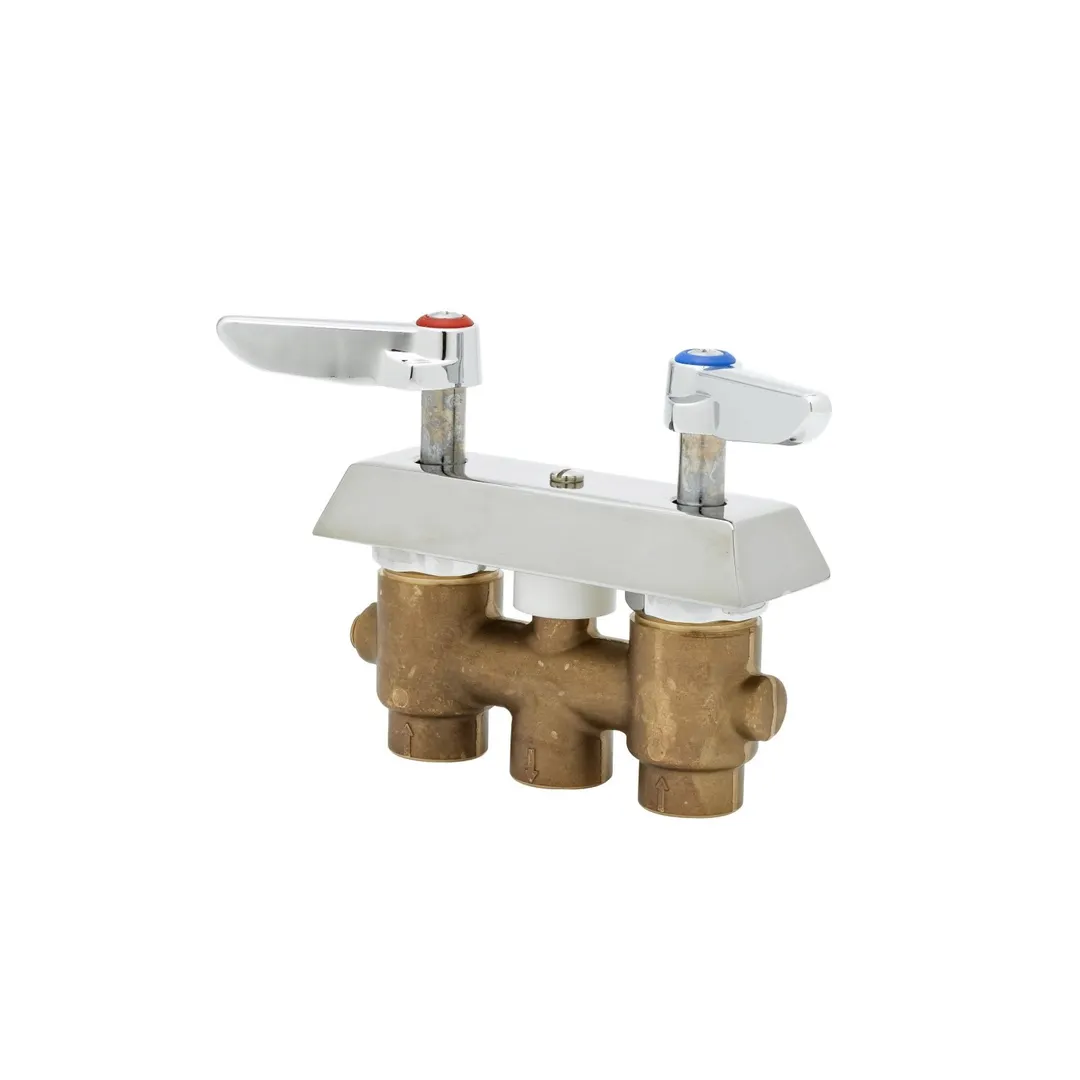

T&S Brass B-0513-01 Concealed Mixing Faucets: Concealed Mixing Faucet
General Info
The B-0513-01, 3" concealed mixing faucet, compression cartridges with spring checks, lever handles, 3/8" NPT female inlets and outlet, chrome plated escutcheon and check valves.
T&S Brass B-0513-01 Features
- 3” concealed mixing faucet
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
- Lever handles w/ color coded indexes
- 3/8” NPT female inlets
- 3/8” NPT female outlet
- Check valves
- Material: Brass body & check valves and chrome plated metal handles & chrome plated brass escutcheon
T&S Brass B-0513-01 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate :15.40 GPM [58.30 L/min] @ 60 psi [4.14 bar]
- Other Details : See spec. sheet
From The Manufacturer
Mixing Faucet, concealed, deck/wall mount, 3" centers, lever handles, compression cartridge, spray valve, low lead, adapter & check valves, NSF
