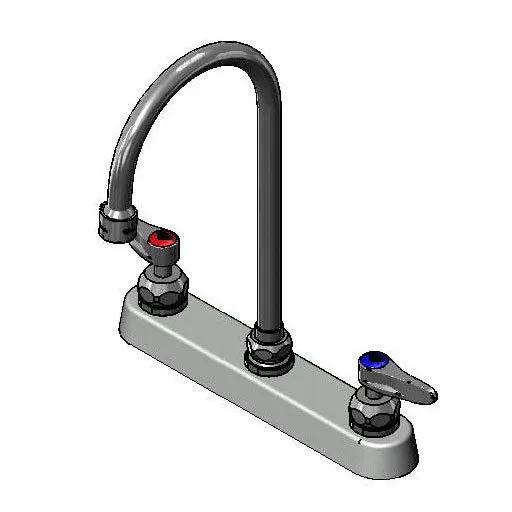

T&S Brass B-1120-5X-V22CR Workboard Mixing Faucet
General Info
The B-1120-5X-V22CR, 8" deck mount mixing faucet with chrome plated brass body, 5 3/4" swivel/rigid gooseneck with 2.2 GPM vandal resistant aerator, ceramic cartridges with check valves, lever handles, 1/2" NPT male inlets and chromeplated escutcheon.
T&S Brass B-1120-5X-V22CR Features
- 8” deck mount workboard mixing faucet w/ chrome plated brass body
- 5 3/4" swivel/rigid gooseneck
- 2.2 GPM vandal resistant aerator, Series 6 (B-0199-06)
- Lock washer provided for rigid application
- Quarter-turn Cerama cartridges with check valves to prevent cross flow of water
- Lever handles w/ color coded indexes
- 1/2” NPT male inlets
- Tailpieces and nuts for 1/4” NPT male connections
- Chrome plated escutcheon
- Material: Chrome plated brass body & tubular spout and chrome plated metal handles & escutcheon
T&S Brass B-1120-5X-V22CR Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 180 F
- Flow Rate : 2.2 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Workboard Mixing Faucet, deck mount, 8" centers, quarter-turn Cerama cartridges with check valves, lever handles with color coded indexes, 5-3/4" swivel gooseneck, 2.2 GPM vandal-resistant aerator, 1/2" NPT, chrome-plated brass body & spout, low lead, cCSAus, ADA Compliant
