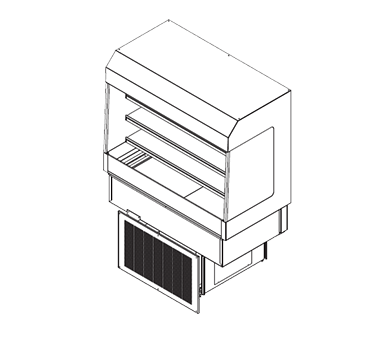

The Delfield ASM-36P Drop-In Air Screen Merchandiser
Why use Delfield Air Screen Merchandiser?
Air Screen Design Offers Design Flexibility
The open front not only puts product right in front of your customers but it is also great for speed of service and getting your customers through the line fast.
Ease Of Serviceability And Security Cover
Slide out condensing units allow for easy serviceability.
The drop-in air curtain merchandiser include a night security cover
Rear Loading Doors
Sliding, locking doors provide easy access for loading product from the back - perfect for units built into a serving line.
Delfield ASM-36P Specification
Interior and Exterior
Display section exterior sides are made of 18-gauge 1” stainless steel sides with 7/8” dual pane LOW-E argon filled insulated glass. Insulated sliding rear glass doors give operator access to the display case. Doors feature plexiglas ducts that direct air flow. The display section bottom shelf is a recessed pan, constructed with stainless steel. Recessed pan is insulated with high density foamed-in-place environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) polyurethane. Three 1/4” tempered glass shelves have three angle adjustments and are adjustable in 1” vertical increments. Stainless steel frames support the shelves. Four LED lights are standard, with an on/ off switch located in the control box. Two louvers are provided with the unit to provide proper air flow. Base cutouts to accommodate the louvers need to measure 17” x 28” (43cm x 71cm)
Refrigeration System
Refrigeration system consists of a full length base mounted evaporator coil with multiple fans circulating the air throughout the cabinet utilizing a thermostatic control. Refrigeration lines are piped to a single point connection with expansion valve. A sloped drain pan is placed below the coil with a 1 1/4” NPT connector. Units need to be plumbed directly to a drain or have an electric condensate evaporator (optional). Refrigeration system shall use HFC-404A refrigerant. Compressor and condenser coil shall be mounted below the display cabinet. Display section to maintain 36°F (2°C)to 40°F (4°C) degree temperatures at 80°F (28°C) degree ambient room temperature, 55% humidity.
Electrical
Units are supplied with a 9’ cord, plug, and junction box. ASM-36 and ASM-48 electrical connections are 115V, 60Hz, 1Ph. ASM-36 and ASM-48 with condensate evaporator electric connections are 115/208-230V, 60Hz, 1Ph.
Delfield ASM-36P Standard Features
- ASM-36P: 36.25” length drop-in air screen merchandiser
- Slim line fluorescent lighting showcases product
- Bottom shelf is a recessed pan, perfect for bottles
- Three 1” adjustable glass shelves with warm white LED lights standard
- Shelves can be positioned three ways: completely flat, slanted, and full tilt
- Slide out condensing unit allows for easy serviceability
- R404A refrigerant
- Drain requires hard plumbing (unless condensate evaporator option is selected)
- Sliding doors makes replenishment and loading easy
- Meets NSF7 type 2 requirements which maintains temperature in 80°F environment with 55% relative humidity
- Rear door lock
- Standard with two louvers, shipped loose, for proper airflow in base
- One year parts and labor standard warranty
