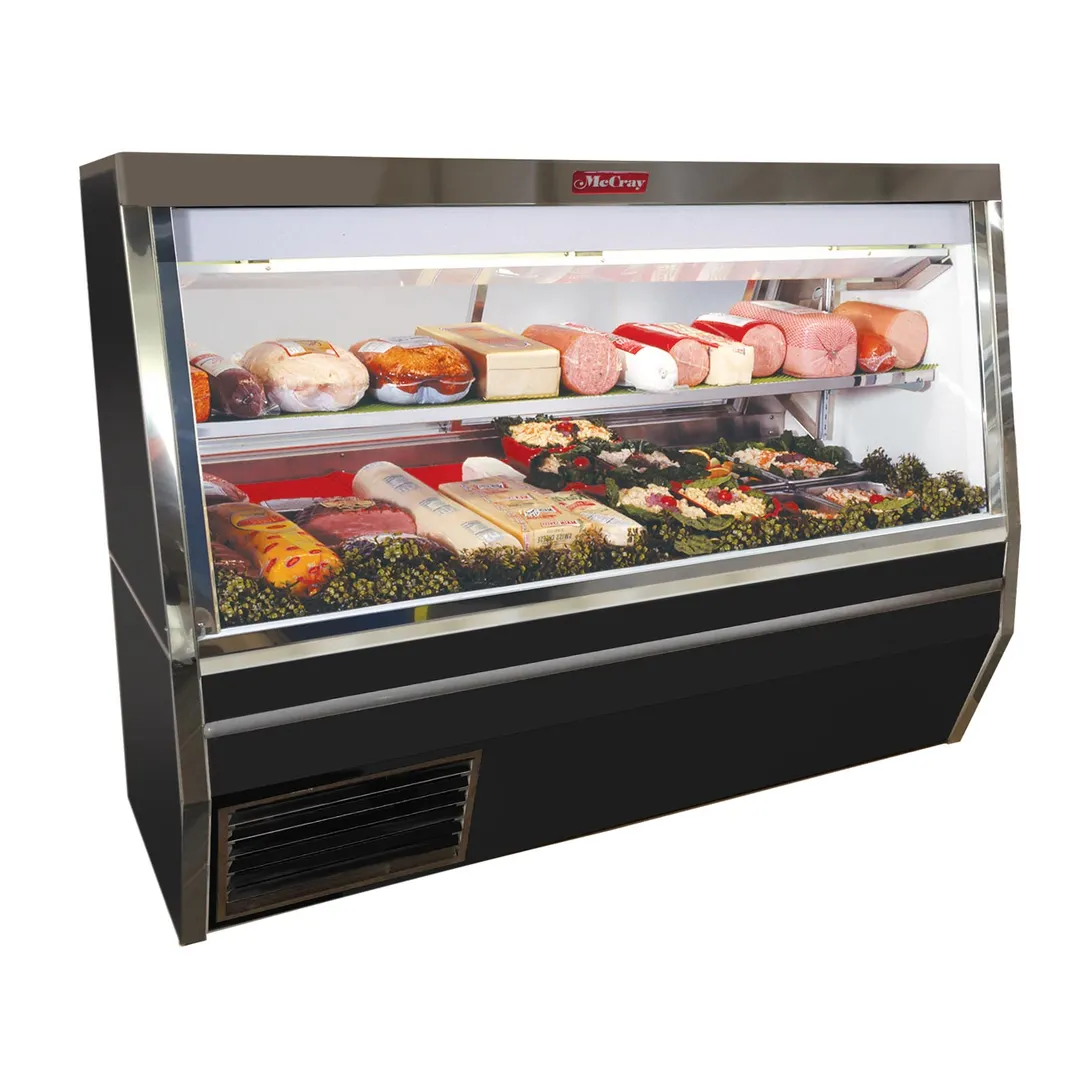

Howard-McCray SC-CDS34N-4-BE-LED 48" Flat Refrigerated Deli Display Case

Construction

UL Classified to ANSI/NSF 7
Foamed in place CFC free foam
Thermal insulated front glass 28”H
Heavy gauge steel super structure
Bottom storage
Drain is included for cleaning

Interior

White, black or stainless steel ends
Stainless steel heavy gauge mezzanine shelf
White aluminum floor (bottom storage area)
Air insulated baffle (prevents moisture from dripping into display area)

Exterior

Double pane rear removable doors
Newly designed rear compression door jamb
Removable front grille allows for cleaning
Removable rear grille for easy servicing
GFI protected outlet mounted rear
Removable rear top glass doors
Removable rear bottom doors
Rear exterior mounted switch
Rear mounted electronic control (thermostat)
1” Front Bumper

Finishes

Thermal formed doors and door tracks
White, black or stainless steel front and ends
Stainless steel mirror trim
Stainless steel heavy gauge top - 23.3” W
White, black or stainless steel exterior rear

Lighting

LED lighting
2 rows of lighting at top of unit

Electrical Requirements

115V 4', 6' & 8' with power cord
UL/CUL listed
115V-15AMP general purpose receptacle (wired separately) 10' & 12' only

Refrigeration

CopeVap system (eliminates need for condensate pan)
R513A expansion valve system
Full length gravity coil located at inside top of unit and in bottom day storage area
Self contained unit
Automatic defrost electronically controlled
Remotes available

From The Manufacturer

Deli Meat & Cheese Service Case, double duty, stand alone design 48"W, self-contained refrigeration, full length gravity coil system, upper & lower compartments, (1) adjustable mezzanine shelf, stainless steel top, black exterior & white interior, LED lighting, 1/4 HP, 115v/60/1-ph, 12.0 amp, **Removable external door adds 2", cULus, UL EPH Classified, UL-Sanitation

Manufacturer	Howard-McCray
Model Number	SC-CDS34N-4-BE-LED
Weight	530 lbs
Width	48″
Depth	36.25″
Height	55″
Service Type	full service
Display Case Type	double duty
Installation Type	free standing
Compressor Location	bottom mounted
Number of Shelves	1 shelf
Glass Style	flat
Refrigeration Type	gravity coil
Exterior Finish	black
Interior Finish	white
Voltage	115
Phase	1
Capacity (cu. ft.)	25.3
