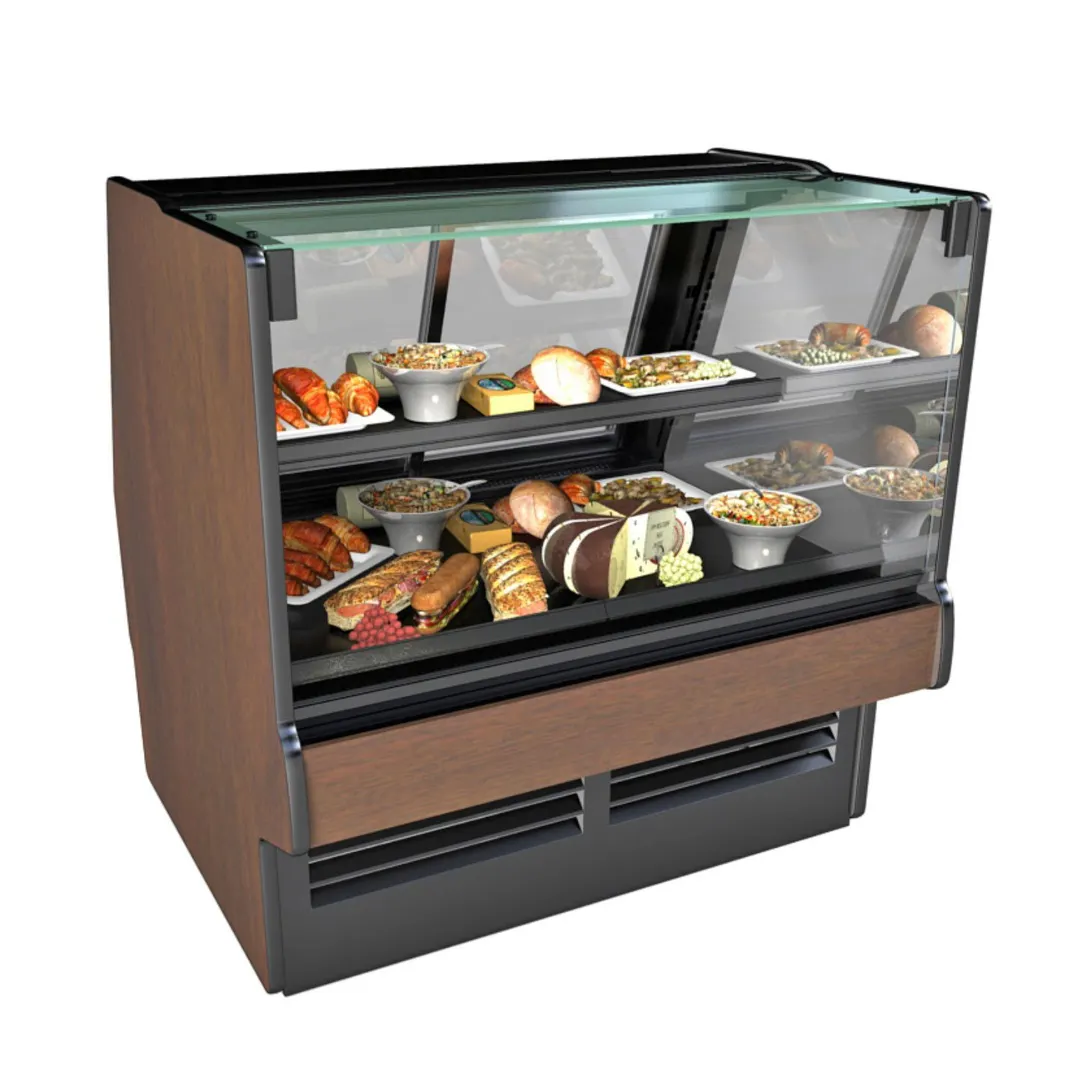

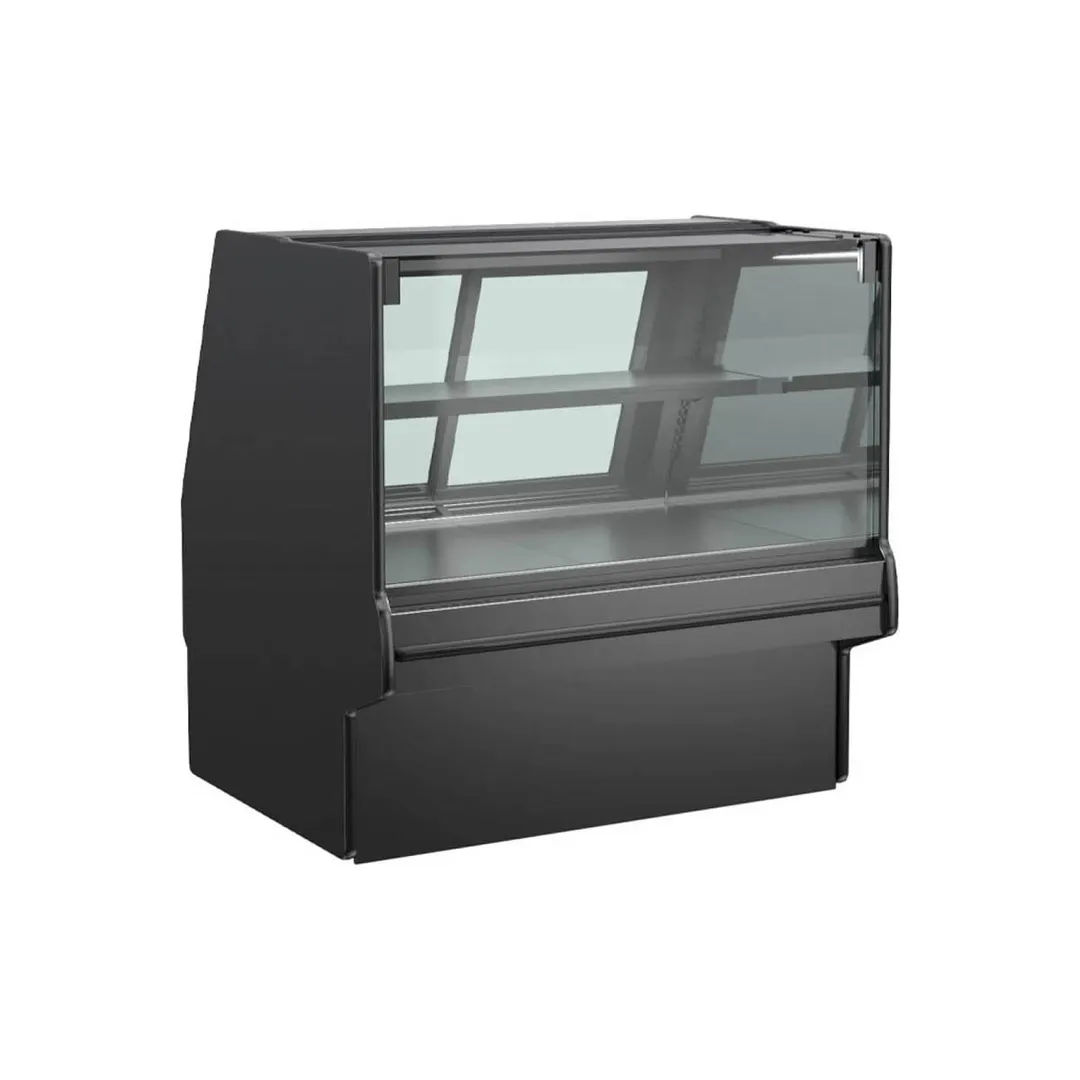

Structural Concepts GMDSV4R Refrigerated Service Case

Structural Concepts GMDSV4R Standard Features

Breeze™ w/EnergyWise s/c refrigeration
Compressor air intake from rear and out front panel at toe kick.Front panel cannot be blocked.
Condensate pan (self-contained refrig. only)
Flat upper front panel
Integrated average product temperature of 40°F or less
LED 4000K top & shelf lights
One year parts & labor; 5 year compressor warranty
Solid shelf, lighted
Vertical, UV bonded lift-up front glass w/o lock

Structural Concepts GMDSV4R Specifications

EXTERIOR COLOR : Laminated (non-premium) Confirm pattern/grain direction
INTERIOR COLOR : Black
LOWER FRONT PANEL COLOR : Painted - Black
TRIM COLOR : Black
BASE : Casters w/ levelers (n/a w/ remote ref.)
END PANEL LEFT : Full end panel w/mirror interior
END PANEL RIGHT : Full end panel w/mirror interior
UPPER REAR : Clear glass rear sliding doors w/o lock
ELECTRICAL CONNECT : 6' straight blade power cord (self-cont.)
REFRIGERATION : Breeze™ w/EnergyWise s/c refrigeration
SIZE : 51"L x 43"D x 51-5/8"H
WEIGHT : 950 lbs
OTHER DETAILS : See spec. sheet

From The Manufacturer

Fusion® Refrigerated Service Case, 51"W x 43"D x 51-5/8"H, Breeze with EnergyWise self-contained refrigeration system, straight lift-up front glass, (1) removable shelf with light, LED top light, sliding glass rear doors, full end panels with stainless mirrored interior, black interior, laminated exterior, ETL-Sanitation

Manufacturer	Structural Concepts
Model Number	GMDSV4R
Weight	950 lbs
Width	51″
Depth	43″
Height	51.63″
Service Type	full service
Display Case Type	single duty
Installation Type	free standing
Compressor Location	bottom mounted
Number of Shelves	1 shelf
Glass Style	flat
Refrigeration Type	forced air
Exterior Finish	laminate
Interior Finish	black
Voltage	110/120
Phase	1
