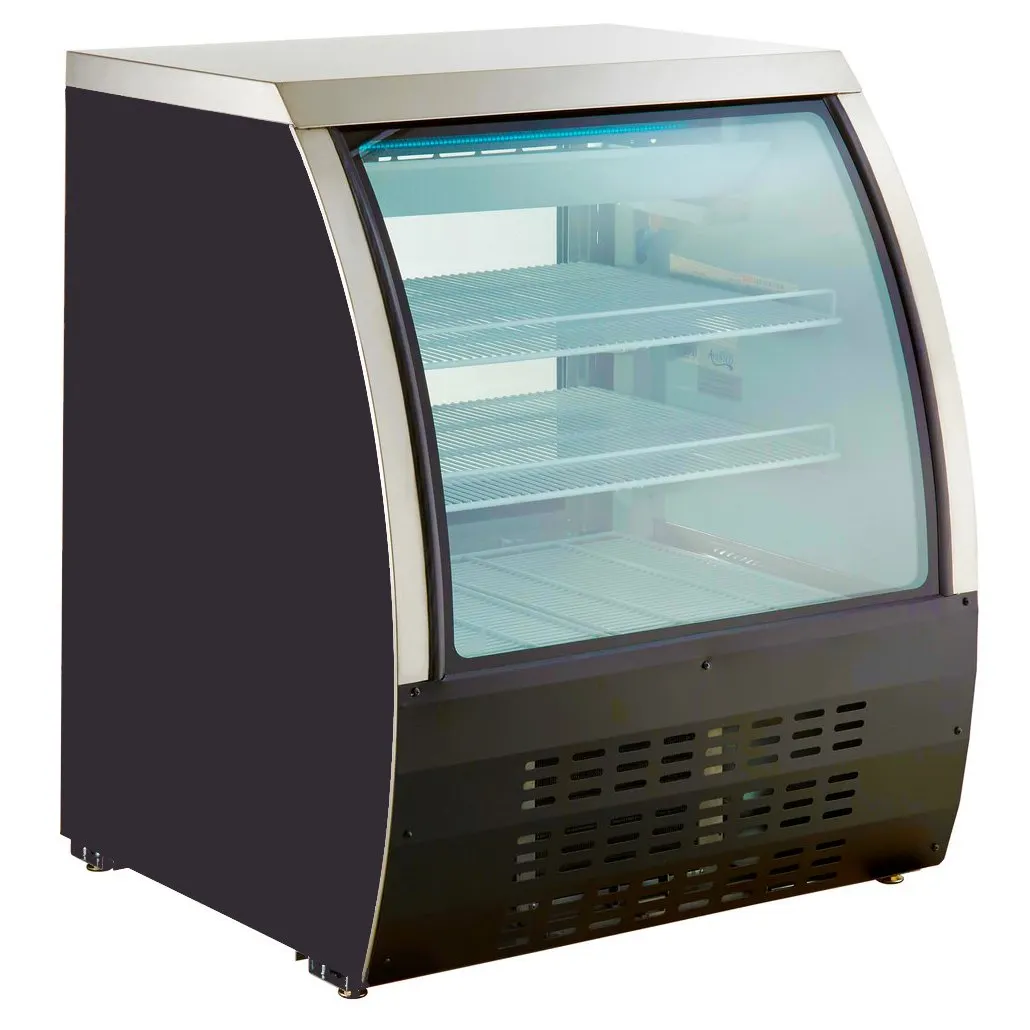

U-STAR USDC-36 36" Refrigerated Deli Display Case by Admiral Craft

Why Use Adcraft Deli Cases?

Deli cases are great for storing and promoting your most popular deli meats and cheeses. The curved glass front provides excellent product visibility, while the rounded corner design makes for easy cleaning. A high-humidity gravity coil refrigeration system helps maintain an optimal storage temperature, keeping displayed meats and cheese products fresh for extended periods of time. The insulated double-pane glass allows for greater energy efficiency and savings. All cases come standard with adjustable wire-coated shelves and LED lighting for enhanced visibility. ETL Listed and NSF approved.

Adcraft USDC-36 Specification

Cooling System, Shelving and Electrical Control

• Refrigeration units use environmentally friendly R-290 refrigerant
• Digital temperature controls maintain a temperature range of 33°F–41°F
• High humidity gravity coil system is ideal for keeping deli meats and cheeses fresh
• Condensing unit is rear mounted and slides out for easy cleaning
• Automatic defrost system
• 115V/60 connection for all models
• 8’ power cord with NEMA 5-15 plug from the back of the unit
• Heavy duty epoxy coated steel shelves are adjustable and can hold up to 90 lbs each
• Shelving system has adjustable angle settings

Cabinet Construction, Operating Conditions and Door(s)

• Exterior is constructed with a stainless steel 21” deep worktop and black coated steel sides, back and front
• Interior is constructed with a 304 type stainless steel floor and painted aluminum sides
• The cabinet is insulated throughout with a foamed-in-place high density cell polyurethane insulation
• Adjustable leg levelers attached to the frame
• Rear doors slide open for easy access to the products inside
• Damage-resistant curved front glass provides excellent product visibility for merchandising
• These models are designed to operate in an environment where the temperature and humidity donot exceed 75°F and 55% relative humidity
• These deli cases are only intended to be used for meats, chesses and salads.
• These cases are not intended to hold or display pies, cakes or other pastries.

Adcraft USDC-36 Features

• Exterior is constructed with a stainless steel top and black coated steel sides, back and front
• Interior has a painted aluminum liner and 304 stainless steel floor
• High humidity gravity coil refrigeration system for optimal product freshness
• R-290 refrigerant ensures ideal operating temperatures
• Damage-resistant curved front glass
• Foamed-in-place polyurethane high density cell insulation throughout the entire cabinet
• Adjustable epoxy coated steel shelves
• LED lighting for enhanced product visibility
