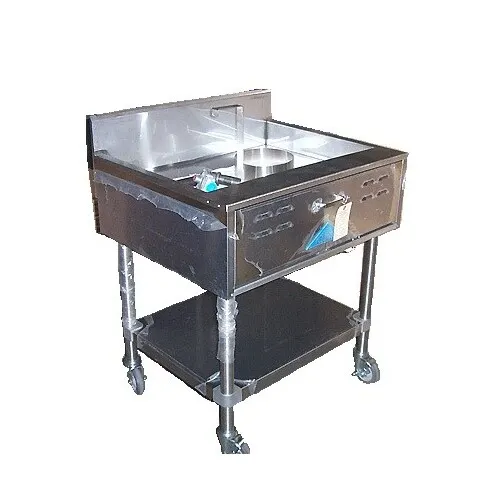

Comstock-Castle TS2932SF Donut Fryer

Comstock-Castle TS2932SF Standart Features

Construction

Easy cleaning, corrosion resistant stainless steel finish, welded with aluminized inner framing. Double wall construction with heavy insulation combined with a special flue design for cooler operation. Adjustable 4˝ stainless steel legs for easy leveling. Installation clearances for non-combustible surfaces are 2˝ on sides and 6˝ in the rear, combustible surface clearances are 6˝ and 6˝. Hinged front door panel protects controls.

Burners

Long life, cast iron “H” pattern burners combined with a special “V” shaped tank design directs heat for excellent air circulation.

Controls

Snap Action thermostat for fast recovery, 100% safety shut off, high limit control for back-up safety, automatic standing pilot and brass burner valves. Pressure regulators are set at the factory for natural gas and easily convertible to propane. Optimal pressures are 4˝ WC for natural gas and 10˝ WC for propane. Manifold size is ¾˝ NPT. All controls are tested and confirmed in good working order. Calibration and adjustments are the responsibility of the installer.

Tank

Easy cleaning, corrosion resistant stainless steel with angled bottom ¾˝ gate valve for rapid draining.

Floor Model

Tubular stainless steel legs and stainless steel stablilzing under shelf to bring the tank surface to 36˝.

Accessories

Extra hearth decks, wire racks, gas hoses, flue adapters, draft diverters, carrying handles, knob protectors, matching stands and casters are listed in the price list.

Comstock-Castle TS2932SF Specification

Doughnut/Funnelcake Fryer, floor model, gas, 32" wide x 36" high to fry tank surface, snap action thermostat, high limit control, stainless steel tank, front & sides, stainless steel legs, 75,000 BTU, NSF, ETL
