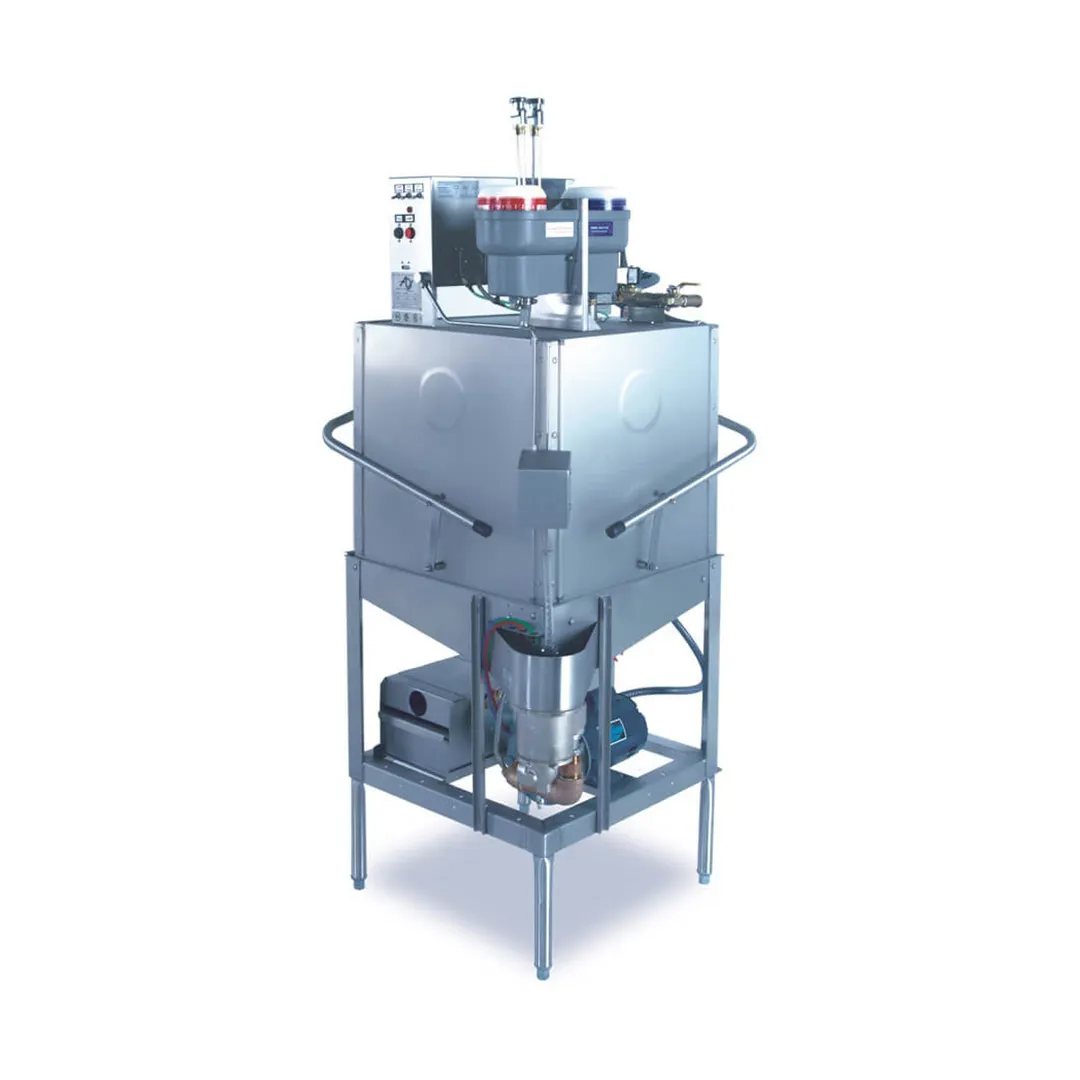

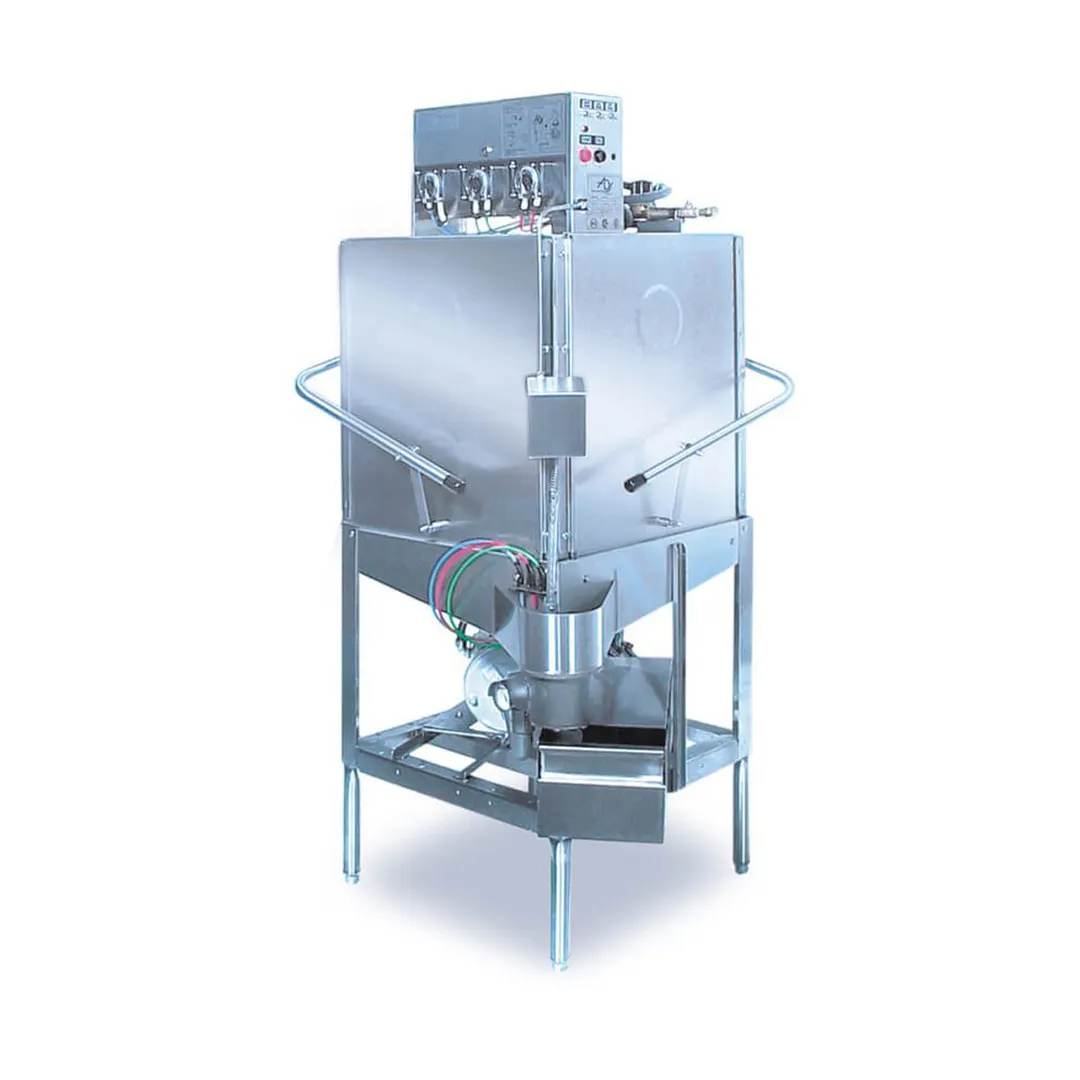

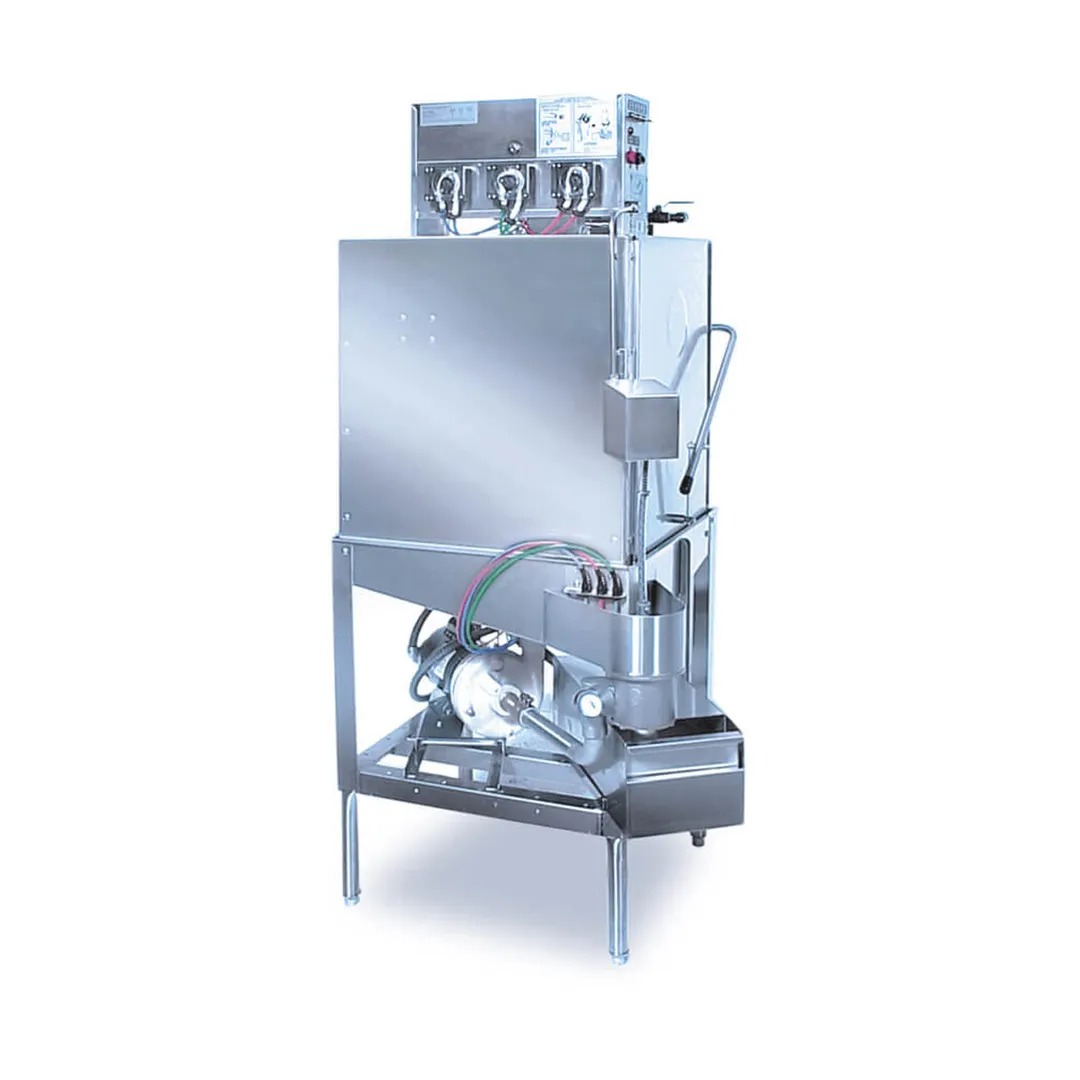

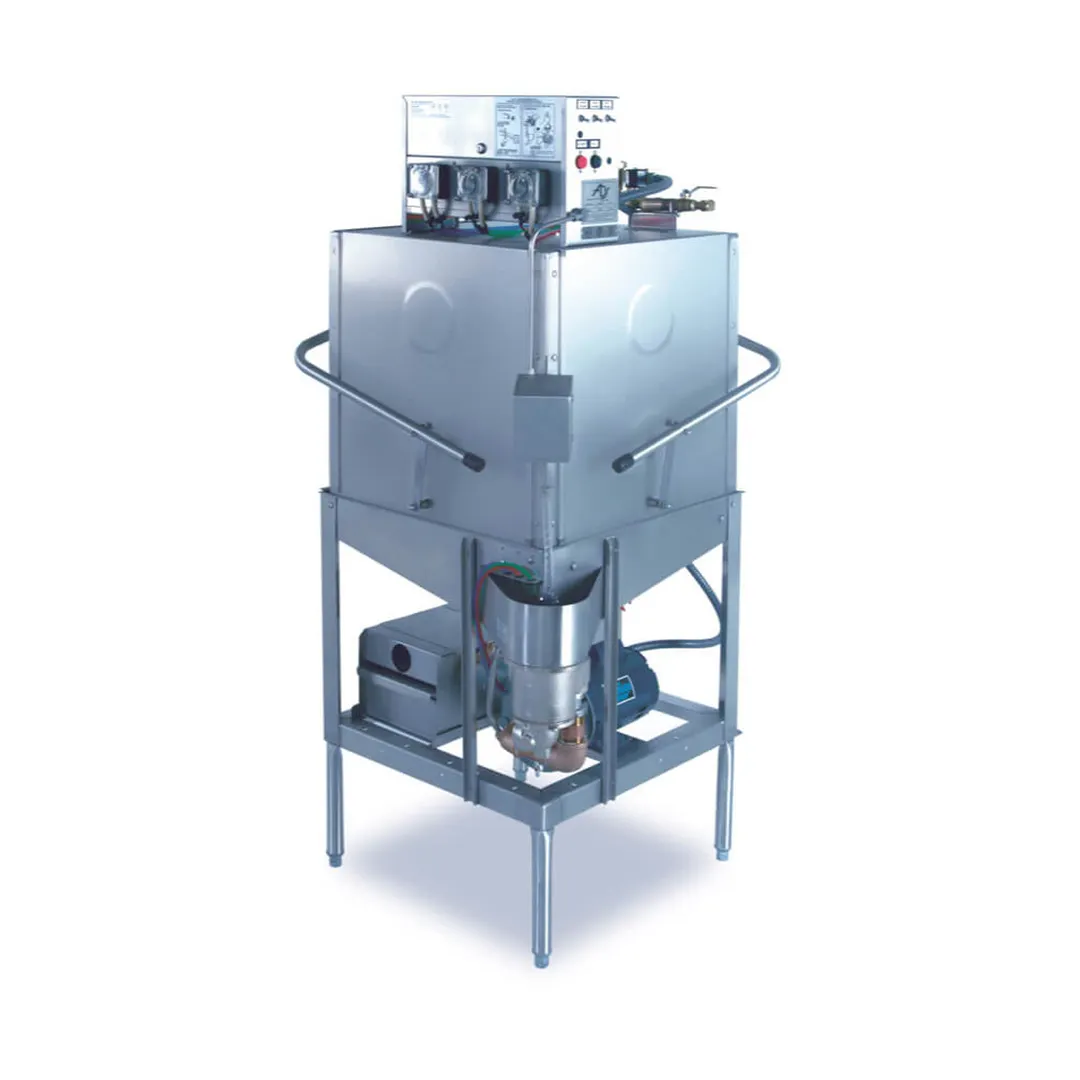

American Dish AF-3D-S-3DUP 25" Door Type Dishwasher, 37 Racks/Hr - 82 Gal/Hr - Low Temp

SKU AME-AF-3D-S-3DUP

American Dish AF-3D-S-3DUP 25" Door Type Dishwasher, 37 Racks/Hr - 82 Gal/Hr - Low Temp 2 image

American Dish AF-3D-S-3DUP 25" Door Type Dishwasher, 37 Racks/Hr - 82 Gal/Hr - Low Temp 3 image

American Dish AF-3D-S-3DUP 25" Door Type Dishwasher, 37 Racks/Hr - 82 Gal/Hr - Low Temp 4 image

$5,596.44/Each

for Best Pricing

American Dish AF-3D-S-3DUP 25" Door Type Dishwasher, 37 Racks/Hr - 82 Gal/Hr - Low Temp

The image above may not exactly represent the product

$5,596.44/Each

for Best Pricing

0% Interest for 30 Days with

Credit Key

Apply Now

Calculate Estimated Shipping Cost

View Wishlist

View Comparelist

Financing Available

Small payments, big returns—view financing details now!

Resources

Spec Sheet

American Dish AF-3D-S-3DUP Specs

Manufacturer	American Dish
Model Number	AF-3D-S-3DUP
Weight	306 lbs
Width	25″
Depth	34.25″
Height	71.25″
Design	universal (straight-thru/corner)
Racks	single
Temperature	low temp chemical
Dishwasher Type	Standard
Rack capacity	approximately (37) racks/hour
Construction	stainless steel
Tank Heat	electric
Voltage	115
Drain Type	gravity drain
Door Clearance	20"
Number Of Wash Cycle	1
Phase	1
Water Consumption(Approx)	82 Gallons Per Hour

View All American Dish Products >

Description

Reviews

American Dish Model "3D-S" Series by The SERVICEABLE Machine

Standard Features

Eliminates the need for check valves and vacuum breakers
Protect intake of pump.
Pump slides forward providing for easier repair.
All plumbing is connected using zero-interference Stainless/Terelene Couplers.
Perfect for pizza applications.
Provides easy screen removal in both corner and passthrough models
Corner outside sump with built-in scrap accumulator
Also available with solid chemical dispensing
Allows for quick release spray arm removal for ease of cleaning
Convertible Design
Great door clearance 20.5"
Run indicator light
Quick Service 1 1/2 HP pump
Simple to clean
Quick release spray arms
Available with solid
Stainless steel air gap chemical dispensing

From The Manufacturer

Dishmachine, door type, low temp chemical sanitizing, convertible 3-doors up, (37) racks/hour, 1-1/2 HP pump, 20-1/2" door opening, auto start, air-gap fill, built-in chemical dispensing, built-in scrap accumulator

Compare to Similar ItemsShop All Door Type Dishwashers

	American Dish AF-3D-S-3DUP 25" Door Type Dishwasher, 37 Racks/Hr - 82 Gal/Hr - Low Temp	American Dish AFC-3D-S 29" Door Type Dishwasher, 37 Racks/Hr - 82 Gal/Hr - Low Temp	American Dish AF-ES-3DUP 25" Door Type Dishwasher, 37 Racks/Hr - 34 Gal/Hr - Low Temp	American Dish AF-3D-S 25" Door Type Dishwasher, 37 Racks/Hr - 82 Gal/Hr - Low Temp	American Dish AFC-ES 25" Door Type Dishwasher, 37 Racks/Hr - 34 Gal/Hr - Low Temp	American Dish AF-ES 25" Door Type Dishwasher, 37 Racks/Hr - 34 Gal/Hr - Low Temp	Jackson WWS CONSERVER XL-HH 29" Door Type Dishwasher, 39 Racks/Hr - 63 Gal/Hr - Low Temp Free Shipping	Jackson WWS CONSERVER XL-E 30.5" Door Type Dishwasher, 39 Racks/Hr - 40 Gal/Hr - Low Temp Free Shipping	American Dish L-3DW-S-3DUP 25" Door Type Dishwasher, 55 Racks/Hr - 66 Gal/Hr - Low Temp
Price	Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingPlus Shipping
Voltage	Voltage115	Voltage115	Voltage115	Voltage115	Voltage115	Voltage115	Voltage115, 230	Voltage115, 230	Voltage115
Phase	Phase1	Phase1	Phase1	Phase1	Phase1	Phase1	Phase1	Phase1	Phase1
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)25	WIDTH (SIDE - SIDE)29	WIDTH (SIDE - SIDE)25	WIDTH (SIDE - SIDE)25	WIDTH (SIDE - SIDE)25	WIDTH (SIDE - SIDE)25	WIDTH (SIDE - SIDE)29.25	WIDTH (SIDE - SIDE)30.38	WIDTH (SIDE - SIDE)25
Manufacturer	ManufacturerAmerican Dish	ManufacturerAmerican Dish	ManufacturerAmerican Dish	ManufacturerAmerican Dish	ManufacturerAmerican Dish	ManufacturerAmerican Dish	ManufacturerJackson WWS	ManufacturerJackson WWS	ManufacturerAmerican Dish
Temperature	Temperaturelow temp chemical	Temperaturelow temp chemical	Temperaturelow temp chemical	Temperaturelow temp chemical	Temperaturelow temp chemical	Temperaturelow temp chemical	Temperaturelow temp chemical	Temperaturelow temp chemical	Temperaturelow temp chemical
Rack capacity	Rack capacityapproximately (37) racks/hour	Rack capacityapproximately (37) racks/hour	Rack capacityapproximately (37) racks/hour	Rack capacityapproximately (37) racks/hour	Rack capacityapproximately (37) racks/hour	Rack capacityapproximately (37) racks/hour	Rack capacityapproximately (39) racks/hour	Rack capacityapproximately (39) racks/hour	Rack capacityapproximately (55) racks/hour
Construction	Constructionstainless steel	Constructionstainless steel	Constructionstainless steel	Constructionstainless steel	Constructionstainless steel	Constructionstainless steel	Constructionstainless steel	Constructionstainless steel	Constructionstainless steel
Energy Efficiency	Energy Efficiency-	Energy Efficiency-	Energy Efficiency-	Energy Efficiency-	Energy Efficiency-	Energy Efficiency-	Energy Efficiency-	Energy EfficiencyENERGY STAR®	Energy Efficiency-
Design	Designuniversal (straight-thru/corner)	Designcorner	Designuniversal (straight-thru/corner)	Designstraight-thru	Designcorner	Designstraight-thru	Designuniversal (straight-thru/corner)	Designuniversal (straight-thru/corner)	Designuniversal (straight-thru/corner)
Racks	Rackssingle	Rackssingle	Rackssingle	Rackssingle	Rackssingle	Rackssingle	Rackssingle	Rackssingle	Rackssingle
Tank Heat	Tank Heatelectric	Tank Heatelectric	Tank Heatelectric	Tank Heatelectric	Tank Heatelectric	Tank Heatelectric	Tank Heatelectric	Tank Heatelectric	Tank Heatelectric
