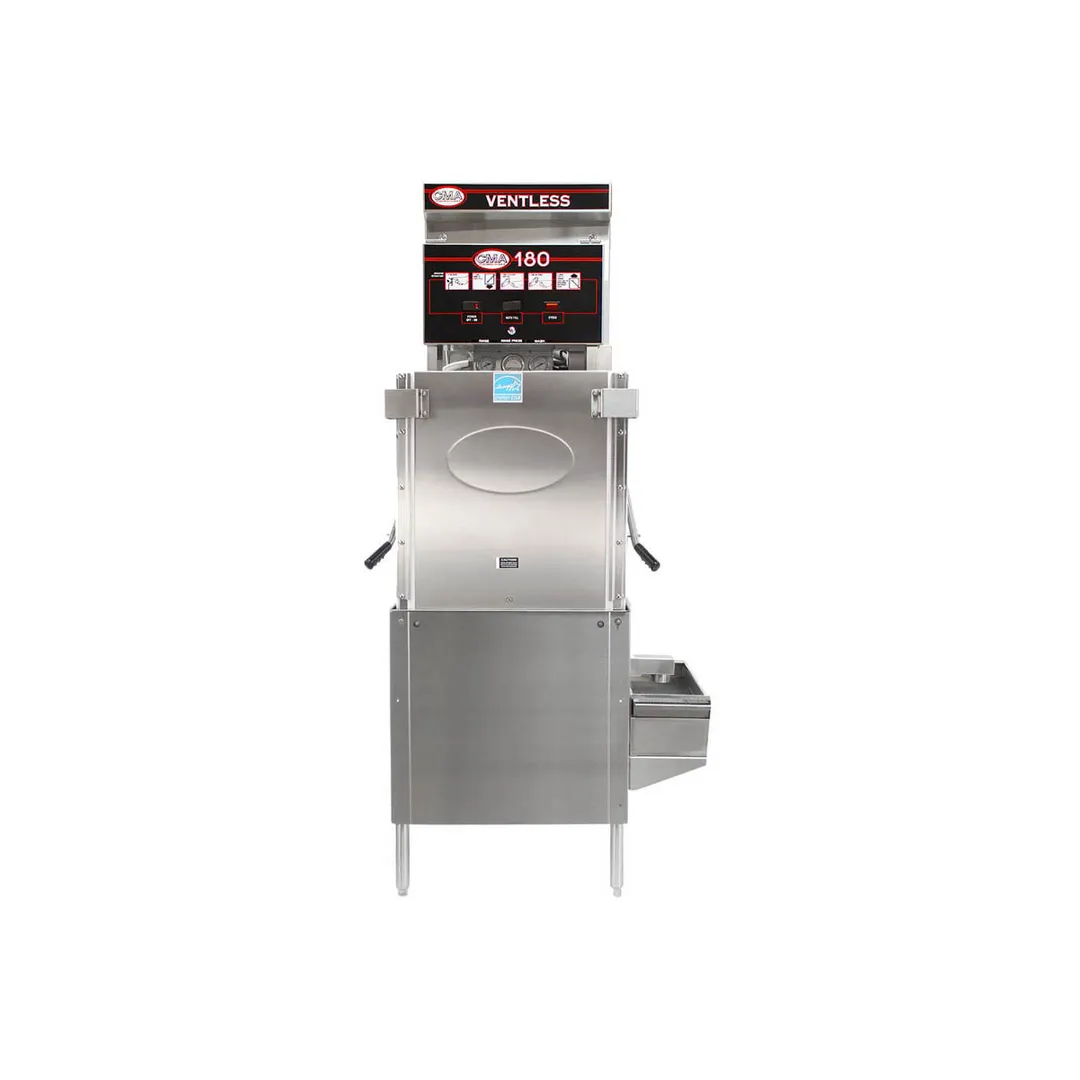

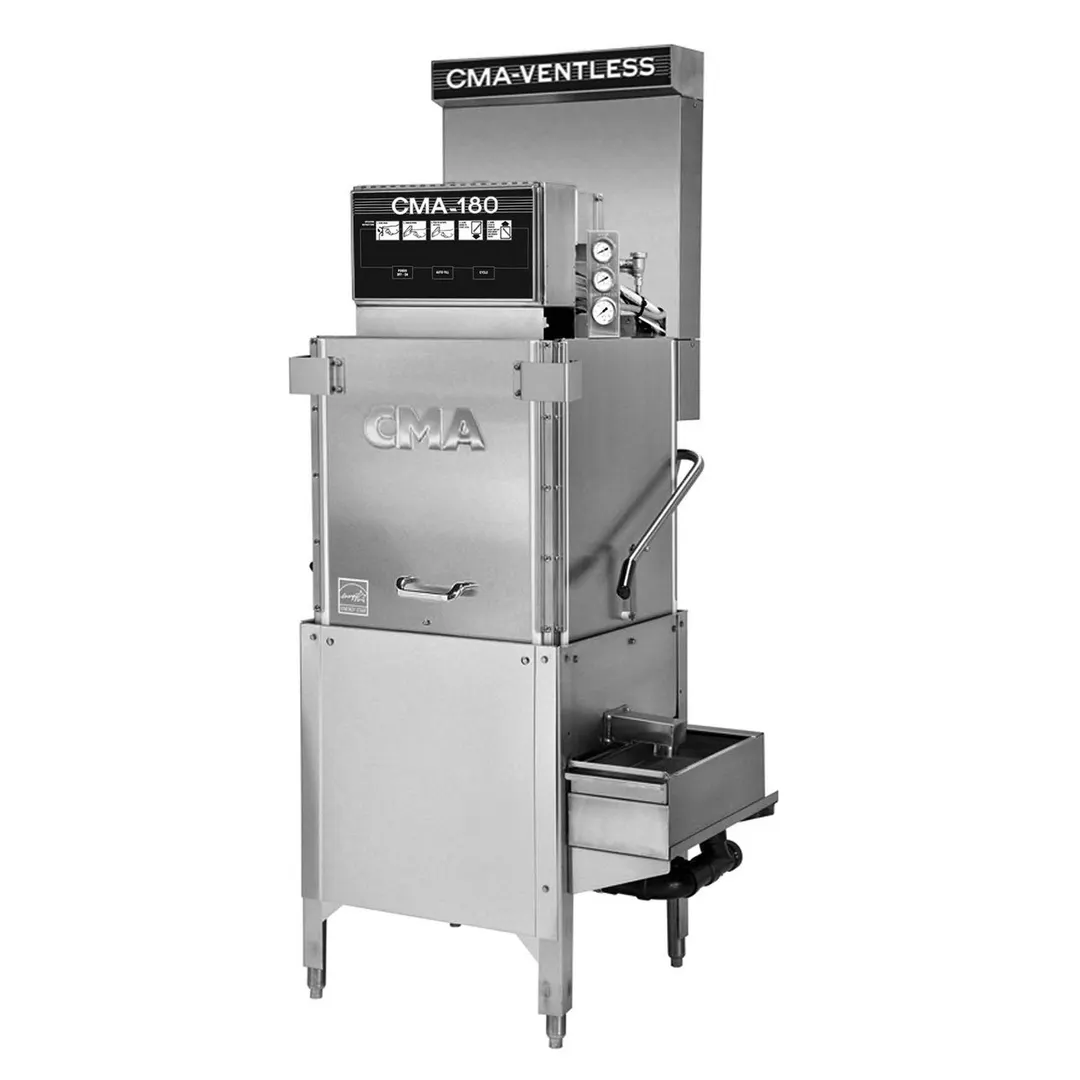

CMA Dishmachines High Temperature 3-Door Ventless Single Rack Dishwasher
CMA MODEL: 180-VL
- The “Ventless” option is a Heat Recovery Condensation Removal System:
- Captures and distributes normally exhausted heat from the wash/rinse tank, using this FREE energy to pre-heat cold water prior to feeding the booster heater. Water entering the booster heater has been pre-heated, reducing the energy cost to bring booster temperature to required 180 degrees, potentially saving THOUSANDS of $dollars$ in operating costs.
- NO VENT HOOD REQUIRED: Saves THOUSANDS $ on installation.
Standard Features
- Replaces need for independent vent hood.
- Final Rinse Valve receives cold water (41-65°F) that is processed through a "Heat Recovery System" providing nearly cost-free heating capabilities for water supplied to the Booster Heater, which reduces the heat recovery time for the Booster Heater.
- Heat recovery system captures water vapor from the wash and rinse cycle, and condenses it to heat the incoming cold water and evacuate the steam from the wash chamber.
- Door-actuated start.
- Safe-T-Temp feature assures 180°F sanitizing rinse every cycle.
- 12kW electrical booster heater.
- Booster-safety thermostat.
- 6kW wash tank heater.
- Low max. 0.89 US gallons of water usage per rack.
- Minimum 90-second cycle. (60 second wash/rinse and 30 second steam evacuation)
- 40 racks per hour (based on 90-second cycle).
- Fully automatic cycle for easy operation.
- Water level safety control.
- Maximum clearance for dishes is 17-1/2".
- All Stainless Steel construction.
- Wash tank screens, which filter recirculating wash water, prevent soil from entering spray arms.
- 3-door feature for straight or corner applications.
- Automatic heat exchange condenser wash-down feature.
- Rinse PRV supplied (Pressure Regulating Valve).
- Field convertible from three phase to single phase.
Avaliable Option
- Alternative electrical available for export.
- Stainless steel dishtables
- Dual power supply connections
From The Manufacturer
Energy Mizer® Ventless Dishwasher, 3 door, door type, 25-1/2"W x 29"D x 86-5/16"H, ventless heat recovery & condensation removal, high temperature sanitizing with built-in 12.0 kW booster heater, approximately (40) racks/hour, 17-1/2" dish clearance, Safe-T-Temp rinse feature, fully automatic cycle, 6.0 kW wash tank heater, automatic heat exchanger condenser & wash-down, door safety interlock system included, rinse pressure regulating valve & wash tank screens, stainless steel construction, adjustable feet, straight or corner application, 1 HP wash pump motor, cULus, ASTM, NSF
