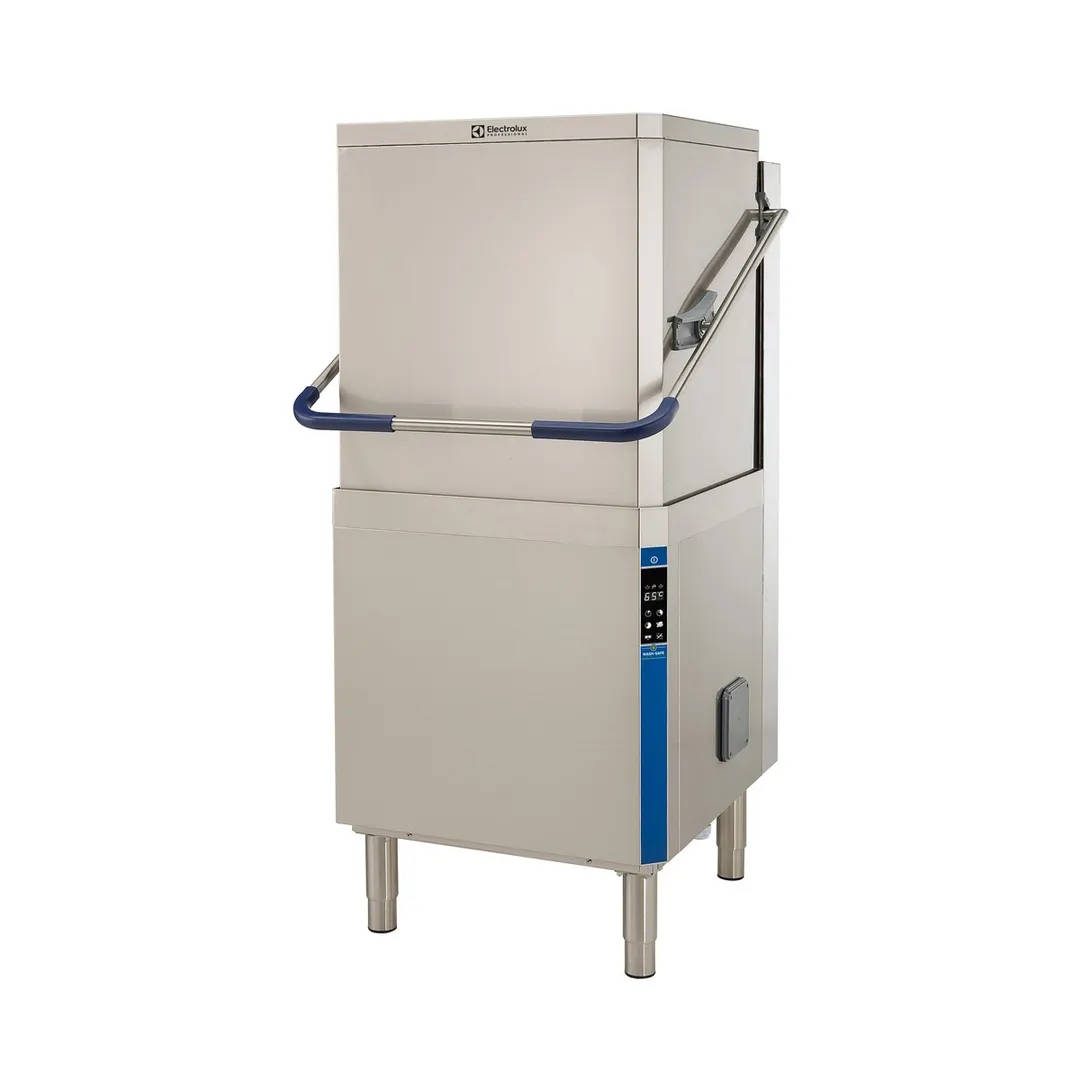

Electrolux Professional Warewashing GreenandClean Hood Type Dishwasher, Manual with ZERO LIME Device and CLEAR BLUE System
Short Form Specification
- Unit to be Electrolux Green and Clean EHT hot water sanitizing dishwasher with WASH SAFE CONTROL. Electrical characteristics to be 240 volts or 208 volts, three phase operation. Energy Star 2.0 ceritified product. Unit to feature atmospheric built-in booster system with built-in rinse booster pump thus guaranteeing rinse pressure during rinse cycle. Maximum water consuption of 1/2 gal (2 L) per rack. Washing performance is guaranteed by a powerful 1.1 HP (0.8 kW) wash pump and upper and lower stainless steel revolving washing spray arms. Features ZERO LIME Device to automatically descale the whole hydraulic circuit and washing chamber. Features "WASH SAFE CONTROL" led light. Green light will indicate that all items washed have been properly rinsed. CLEAR BLUE filtering to system remove majority of soil from the wash water. 304 Stainless steel construction to include double skin insulated hood, external, front and side panels, wash tank, tank filter plus wash and rinse arms. Field convertible from straight to corner operation. Includes drain pump, detergent and rinse aid pumps and is equipped with flexible fill hoses. Delivered on height-adjustable feet. Covered by Electrolux Platinum Star Service Program two-year parts and one-year labor warranty, installation startup and performance check-up after one year from installation.
Standard Features
- ZERO LIME Device ensures total scale removal from the hydraulic circuits and the washing chamber allowing for lower energy consumption thanks to the high-efficiency of the heating elements.
- CLEAR BLUE advanced filtering system provides cleaner wash water and higher active detergent thus ensuring better washing performances and lower running costs.
- Requires only 1/2 gal (2 L) of water per rack thus ensuring low energy, water, detergent and rinse aid consumption.
- Energy Star 2.0 certified product.
- Built-in atmospheric booster sized to raise incoming cold water to a minimum of 180°F (82°C) for sanitizing rinse. No external booster is required. Constant temperature above 180°F (82°C) throughout the rinsing cycle.
- ETL C and US and ETL-Sanitation approved (ANSI/NSF 3 sanitation standard).
- Green light of "WASH SAFE CONTROL" confirms that items have been rinsed properly.
- Unique temperature interlock guarantees required temperatures in both the wash and final rinse.
- Maximum capacity per hour of 63 racks or 1.134 dishes.
- 57/84/150 seconds cycles (ETL-S mode).
- Incorporated Soft Start feature to offer additional protection to more delicate items.
- Slanted wash arms and sloped ceiling to avoid detergent-filled wash water dropping on clean dishes after the rinsing phase, thus guaranteeing ideal washing results.
- Cycle may be interrupted at any time by lifting the hood.
- Automatic self-cleaning cycle and self-draining wash pump and booster to avoid bacteria proliferation.
- State-of-the-art electronic controls with built-in programming, selfdiagnostics for serviceability and automatic interior rinse-down cycle.
- Built-in rinse aid and detergent pumps with automatic initial and continuous cycle loading for perfect result while minimizing service and maintenance needs.
- Three phase electrical connection.
- Deep drawn pressed 6.4 gal (24 L) tank in front position with no welded points offer a guaranteed water tight solution and eliminates dirt traps.
- Vertical self-draining wash pump ensures no bacteria proliferation and bad smells during non-operation hours.
- Booster highly resistant to chlorinated water thanks to robotised TIG welding technology.
From The Manufacturer
(LV504263) Dishwasher, hood type, (60) racks/hour, hot water sanitizing with built-in booster heater, corner mounted electronic controls with built-in programming, 57/84/150 seconds cycles, soft start feature, Wash Safe Control, Zero Lime Device, Clear Blue advanced filtering, automatic self-cleaning cycle, detergent & rinse aid pumps, 304 stainless steel construction, adjustable feet, includes: (2) cutlery container (864242), plate basket (867002) & cup basket (867007), 208v/60/3-ph, 28 amps, 2 HP, 12.9 kW heat, cETLus, ETL-Sanitation, ENERGY STAR® (field convertible corner or straight thru) (replaces discontinued model WT65-208v)
