Hobart AM16T-BAS-2 36.5" Door Type Dishwasher, 60 Racks/Hr - 40.2 Gal/Hr - High Temp w/Booster

Short Description

Specified unit will be a Hobart AM16 Tall Base electric high temperature dishwashing machine. Features include 3-sided pillarless hood, touchscreen controls with WiFi connectivity, NSF pot and pan rating for 2-, 4- and 6-minute cycles, 27" door opening, pumped drain, auto door start with auto fill, interchangeable stainless steel rinse arms and X-shaped wash arms, delime cycle, advanced diagnostics and service connection, up to 60 racks per hour, .67 U.S. gallons per rack pumped final rinse.

Standard Features

• .67 gallons per rack pumped final rinse
• 60 racks per hour – hot water sanitizing

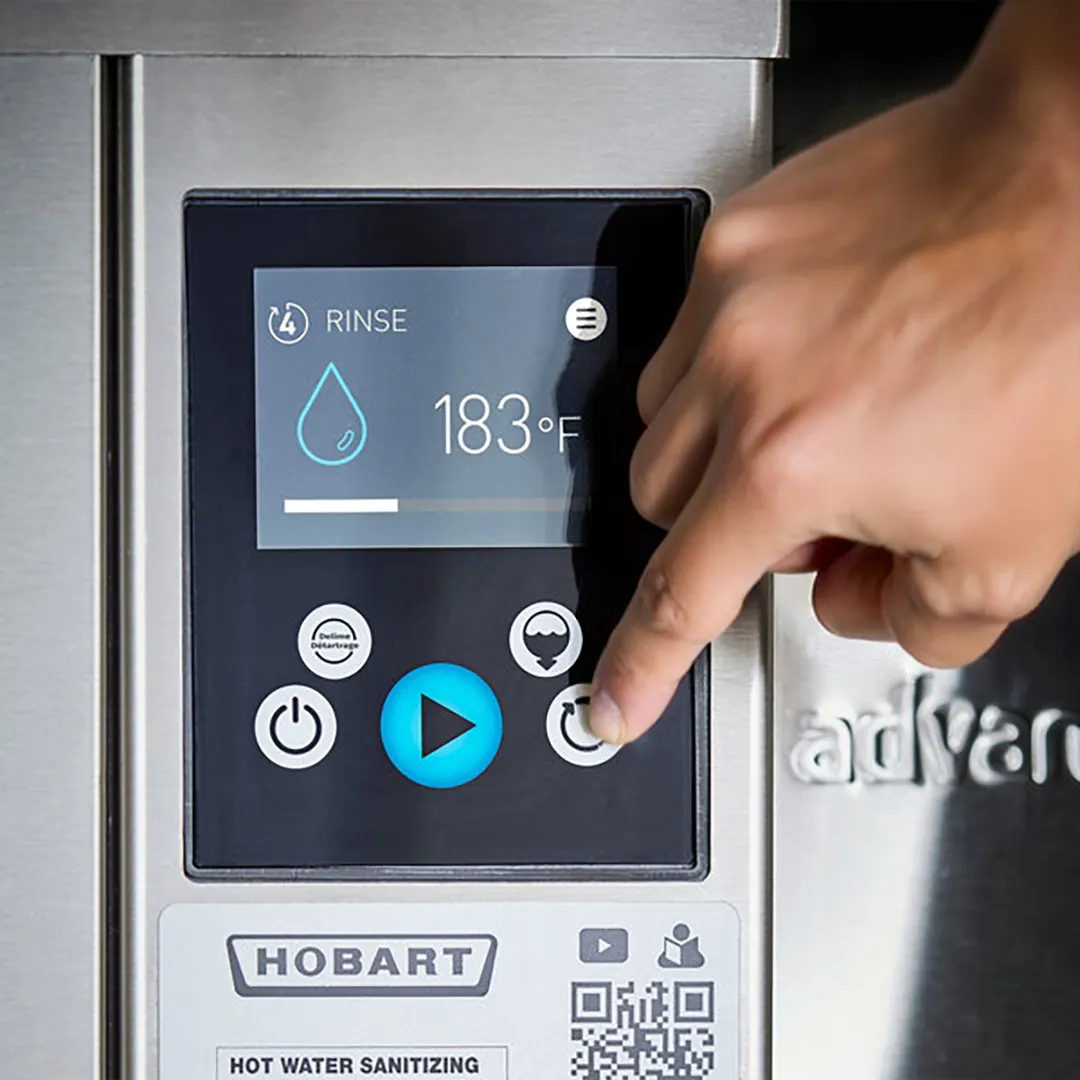

• User-friendly smart touchscreen controls
• WiFi connectivity

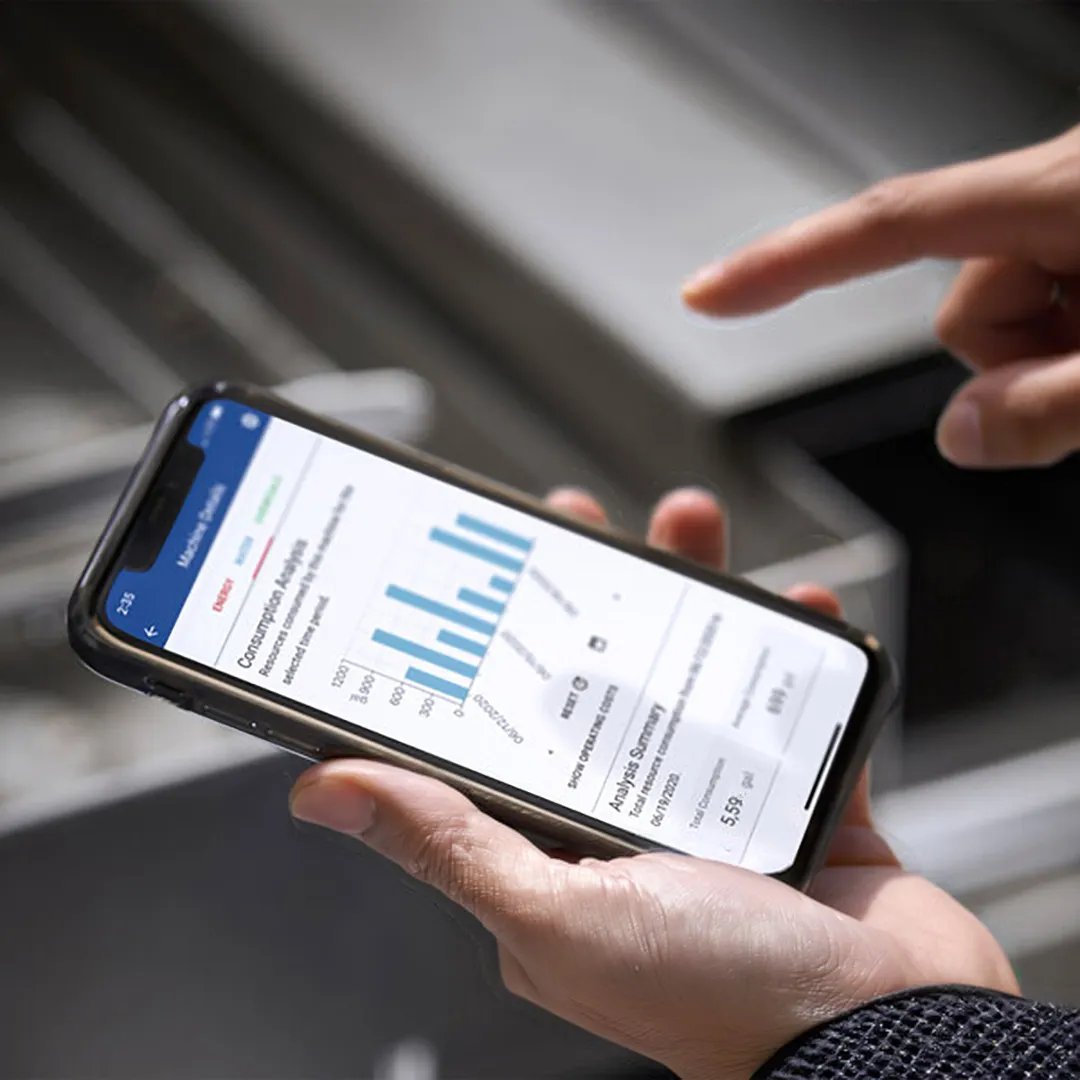

• SmartConnect app and cloud with machine status, temperature logs, error code reporting, and cost, consumption and usage analysis
• Two stage filtration

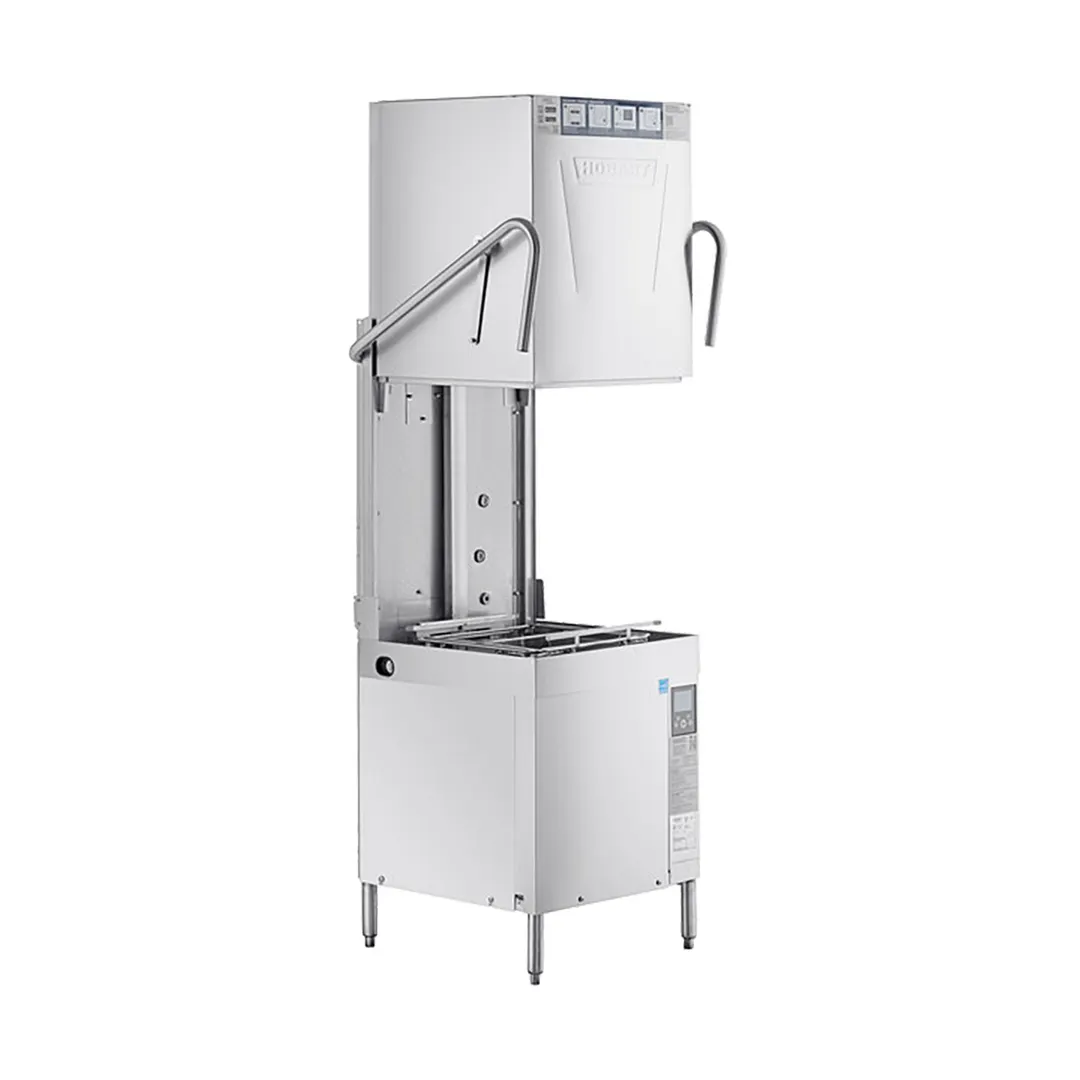

• Pillarless opening
• 3-sided hood
• Single point electrical connection standard, field convertible to dual point connection
• 3 phase standard, field convertible to single phase
• Temperature and chemical lock outs (with Hobart equipped chemical pumps)
• Pumped drain
• Timed wash cycles for 1, 2, 4 or 6 minutes
• NSF pot and pan rating for 2-, 4- and 6- minute cycles
• Sense-A-Temp™ 70°F rise electric booster heater
• Self-draining, high efficiency wash pump with stainless steel impeller
• 27" door opening for 18" x 26" sheet pans or 60-quart mixing bowl
• Stainless steel drawn tank, tank shelf, chamber, trim panels, frame and feet
• Spring counterbalanced chamber with UHMW guides

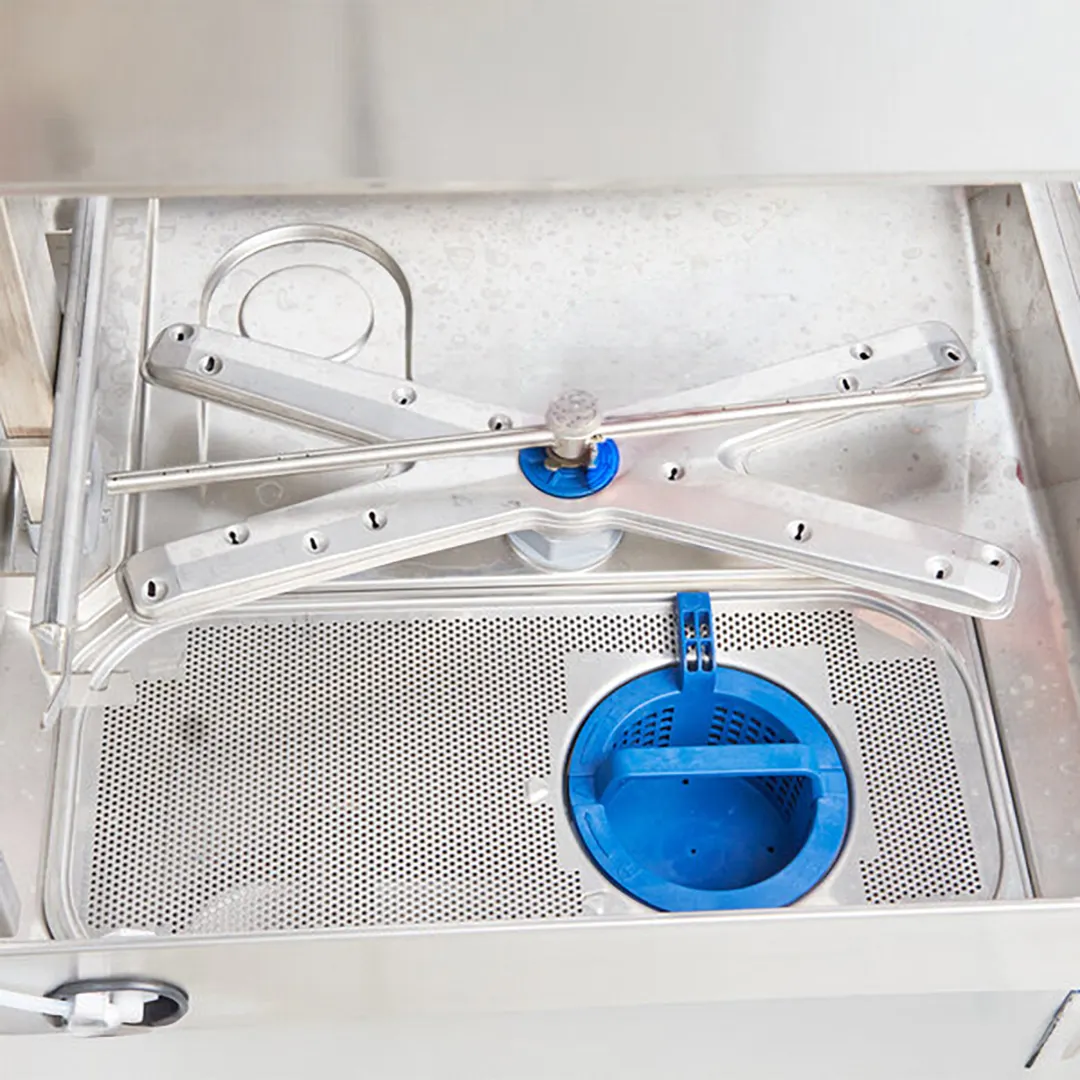

• X-shaped revolving, interchangeable upper and lower anticlogging wash arms
• Revolving, interchangeable upper and lower rinse arms
• Slanted, self-locating, one-piece scrap screen and basket system
• Automatic fill
• Door actuated start
• AutoClean
• Vent fan control
• Service diagnostics
• Straight-through or corner installation
• Delime cycle with notification (field activated)
• Sheet pan rack
