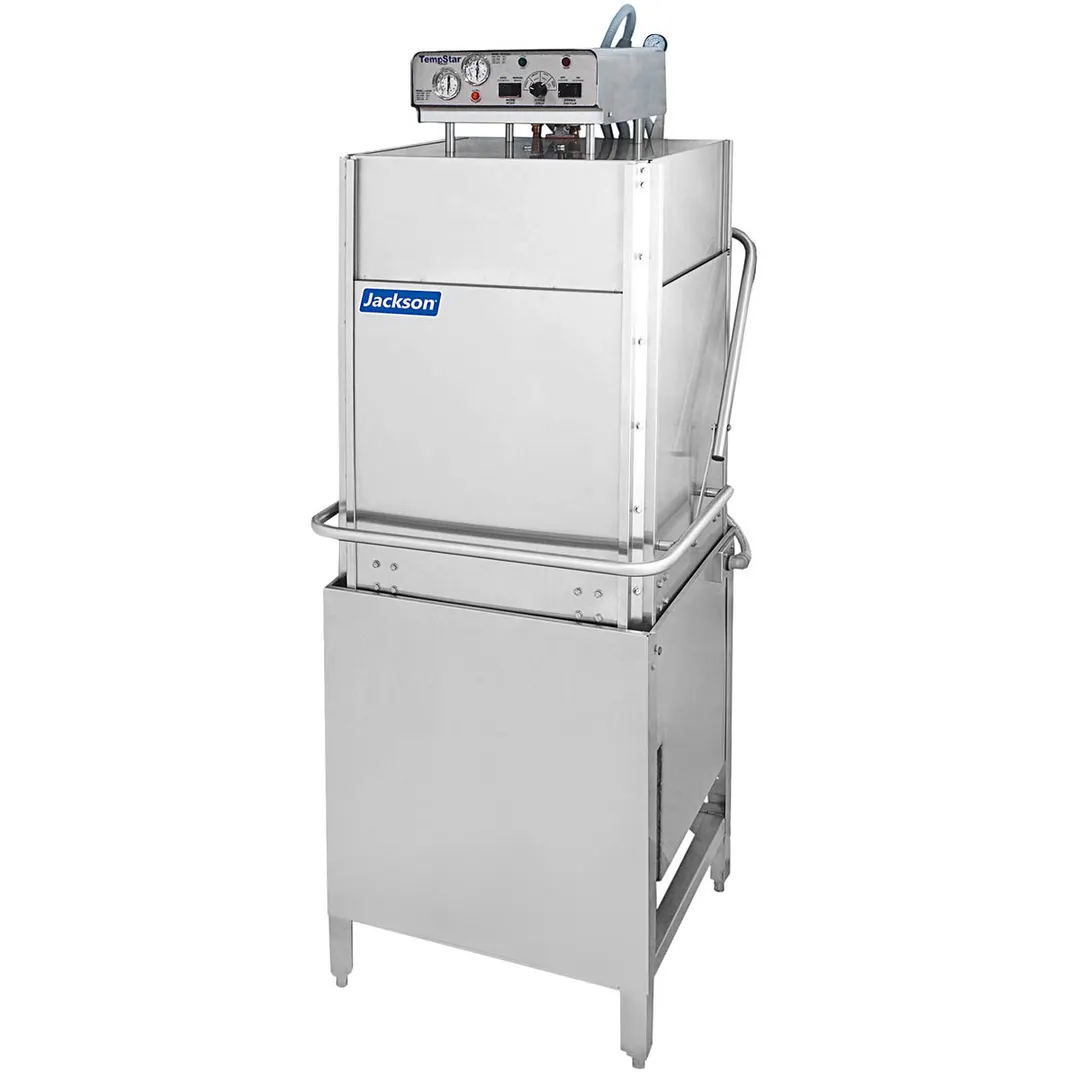

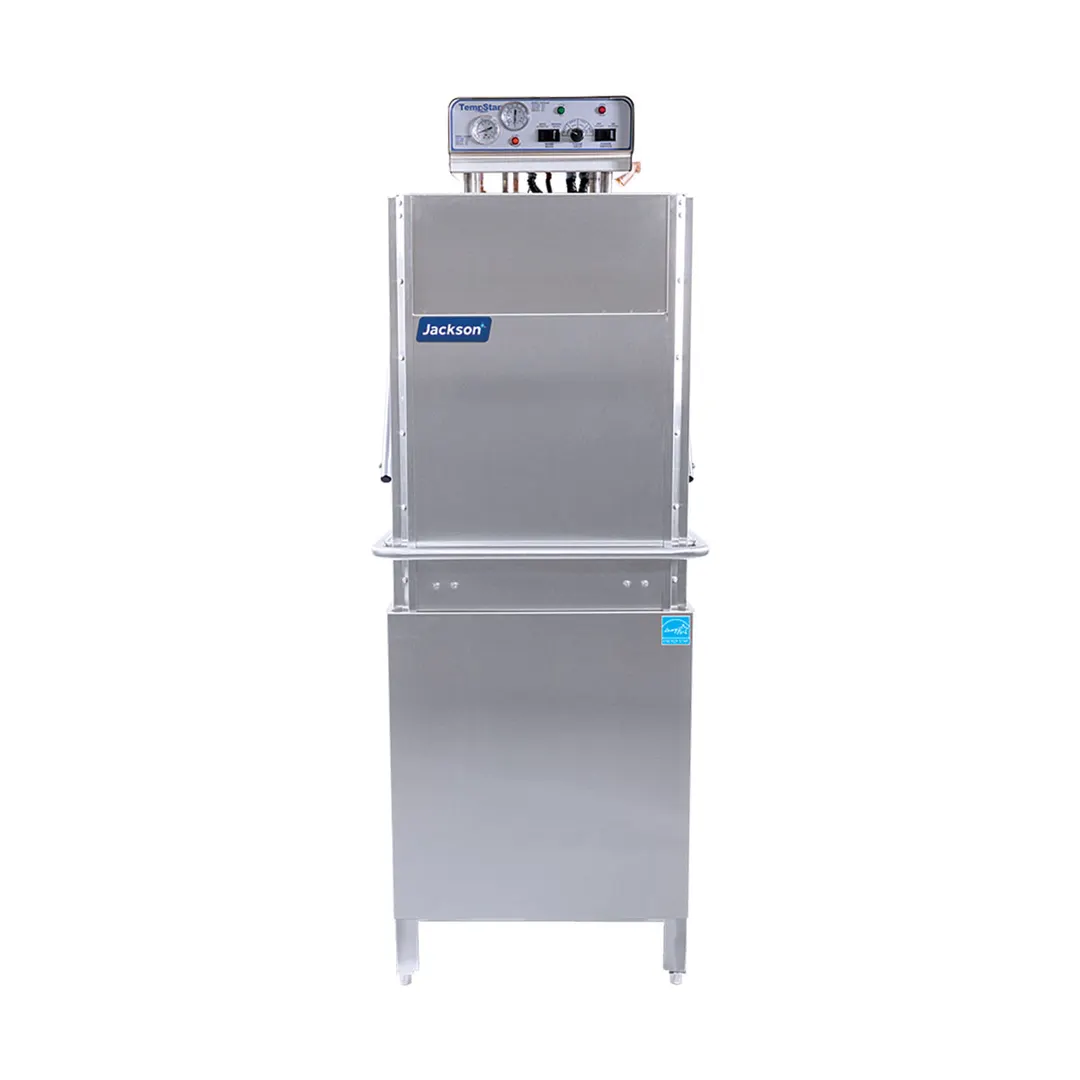

Jackson WWS TEMPSTAR W/O 32" Door Type Dishwasher, 58 RPH - 52 Gal/Hr - High Temp without Booster

Description

Specified unit will be a Jackson TempStar high temperature sanitizing door-type dishwasher, rated by ETL Sanitation to NSF/ANSI Standard 3. Unit will be ENERGY STAR® certified. Unit to be rated for 63 racks per hour, 0.89 gallons per rack, and will include a builtin 70 °F rise (40 °F rise optional) booster heater with Sani-Sure™ final rinse system, four (4) selectable timed cycles, and top mounted controls. Other features include automatic tank fill, delime mode, vent fan control, interchangeable wash/rinse arms, and 1 HP stainless steel wash pump motor. Constructed of durable stainless steel with adjustable bullet feet

Standard Features

• Built-in 70 °F (38.9 °C) rise booster heater with Sani-Sure™ final rinse system; 40 °F (22.2 °C) rise booster heater is available at no cost and must be specified at time of order
• Automatic tank fill
• Door-actuated start
• Four (4) selectable timed cycles
• Top-mounted controls for ease of operation
• Delime/manual wash mode
• 17-1/4” (438 mm) door opening accepts 18” (457 mm) trays
• Specially designed stainless steel nozzles provide superior cleaning action
• Interchangeable wash/rinse arms screw out for simple cleanup
• Door switch
• 1 HP self-draining stainless steel wash pump
• Vent fan control shuts vent fan off when machine is idle
• Large scrap basket
• Single point connections for all utilities
• Field convertible from straight through to corner and vice versa (kit required)
• Field convertible from 3-phase to single-phase and vice versa (kit required)
• Low watt density electric wash tank heater
• Hi-limit thermostat and low water protection
• Detergent/rinse additive signal connection fuse box
• Front stainless steel dress panel
• Uses standard 20” X 20” (508 mm X 508 mm) racks
• Adjustable bullet feet
• Durable stainless steel construction
