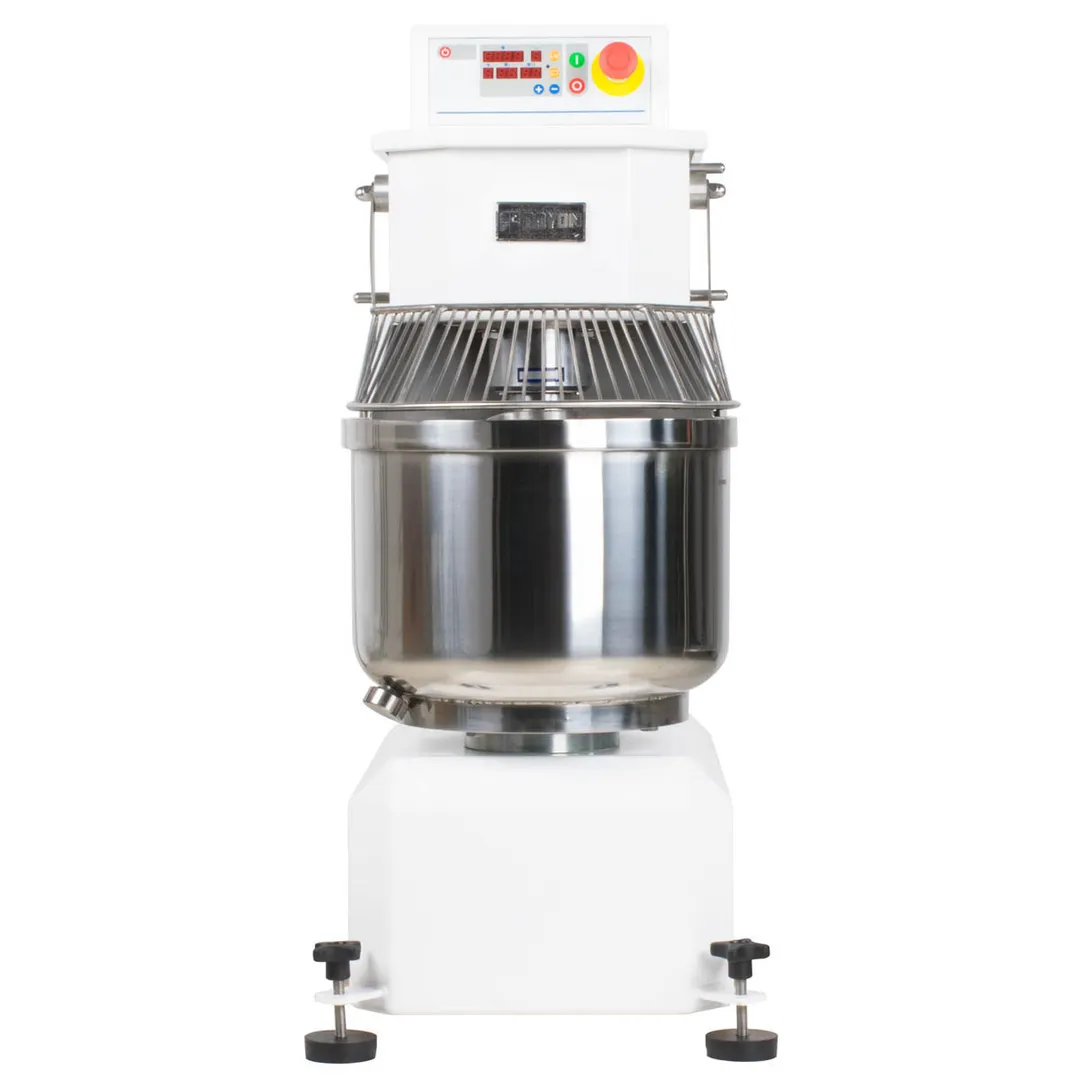

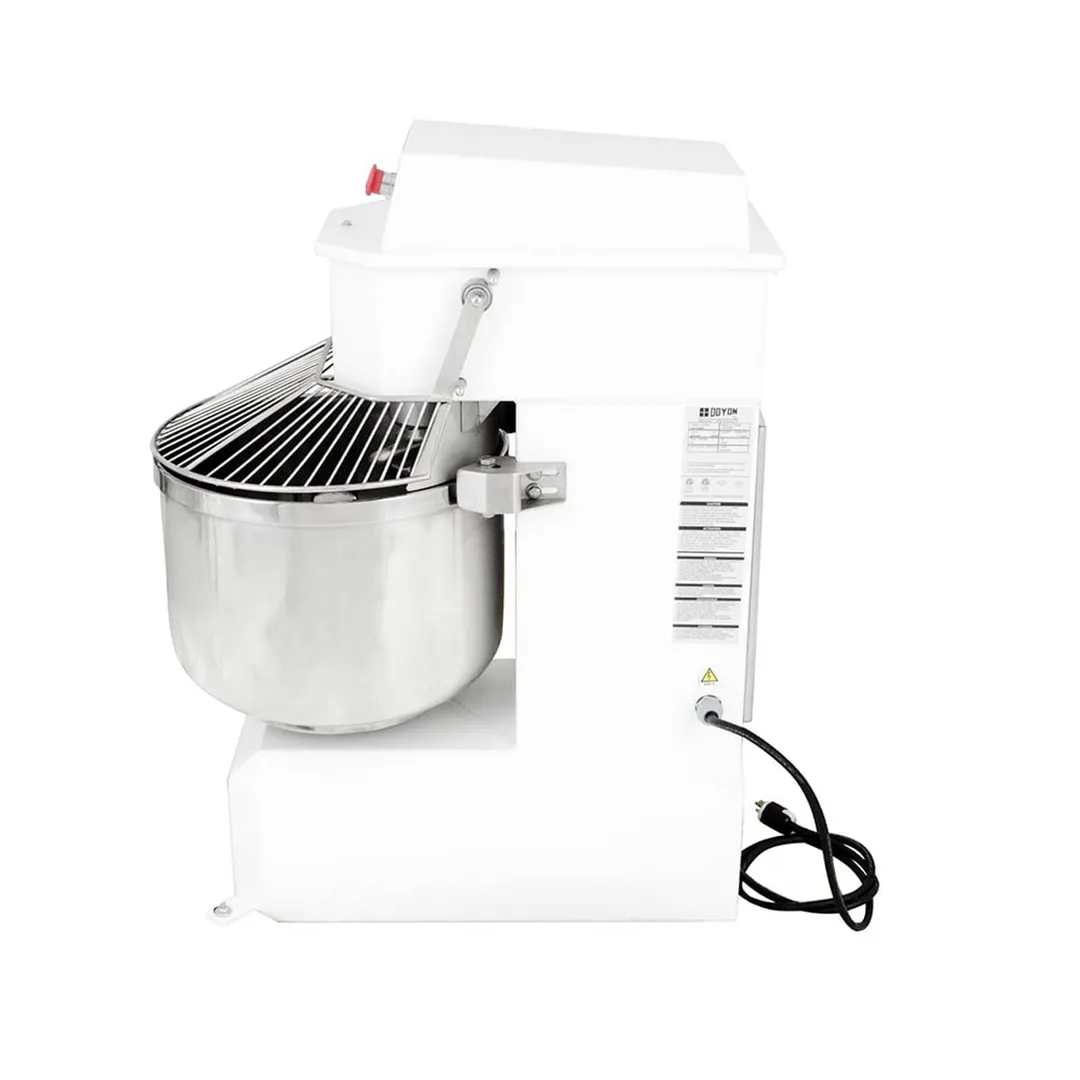

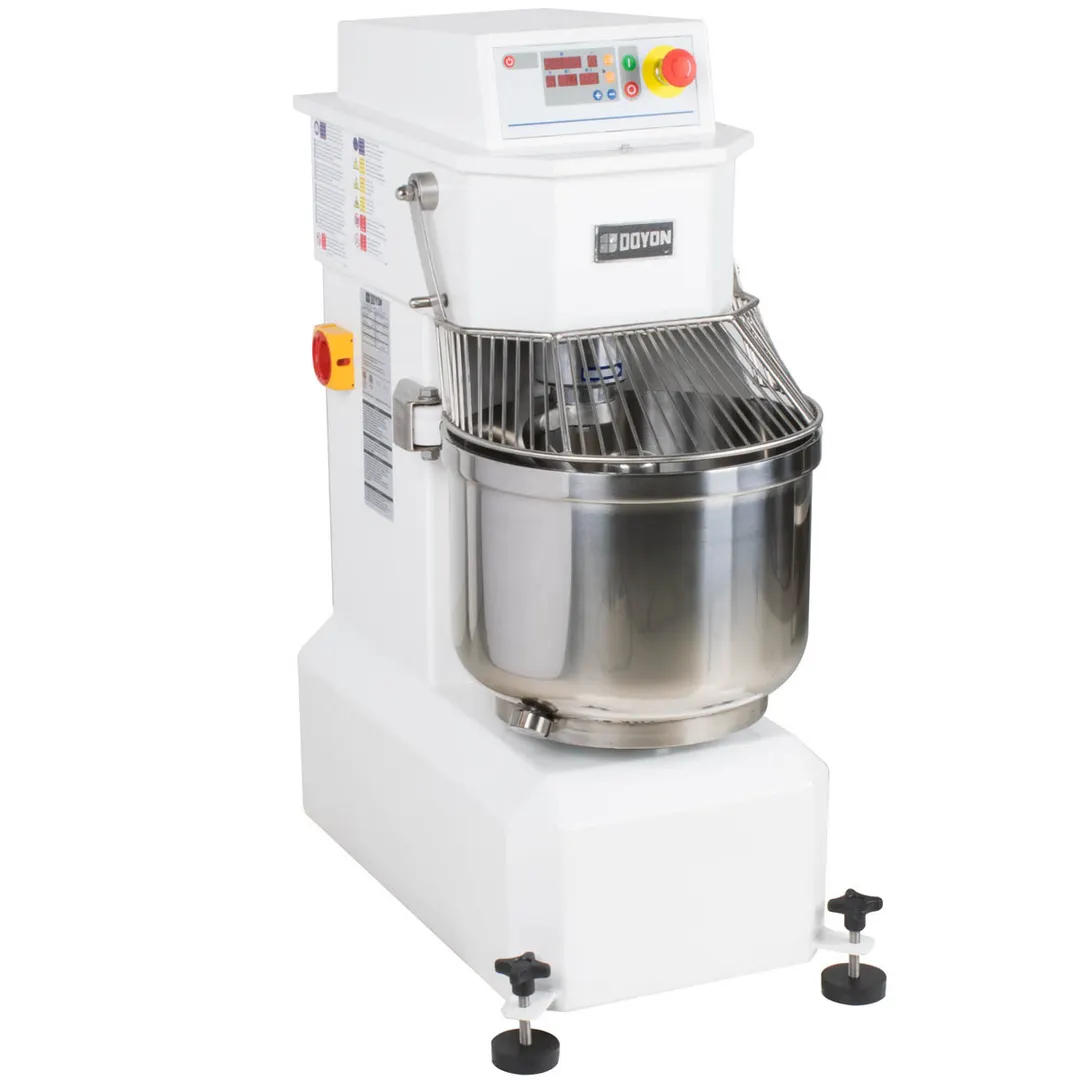

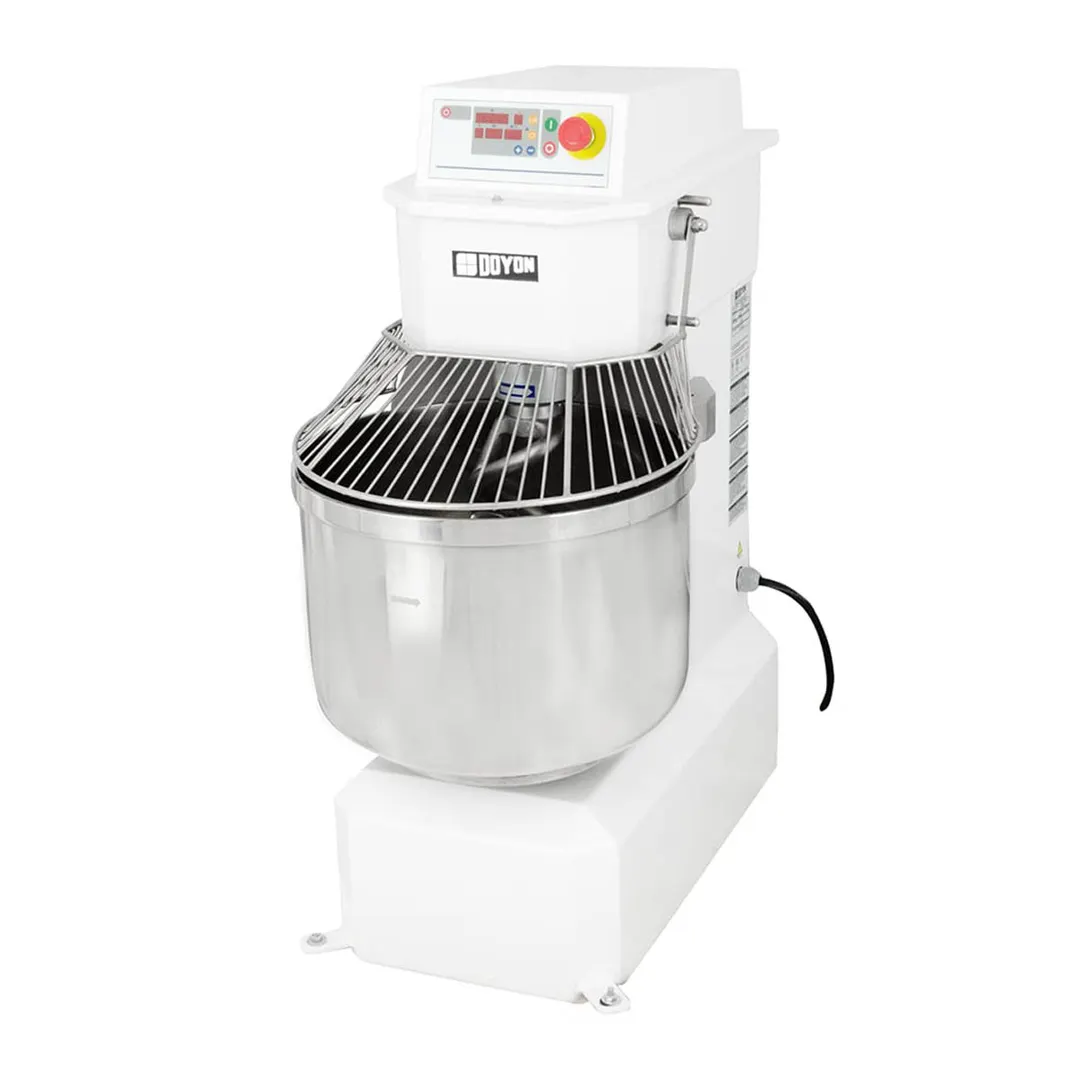

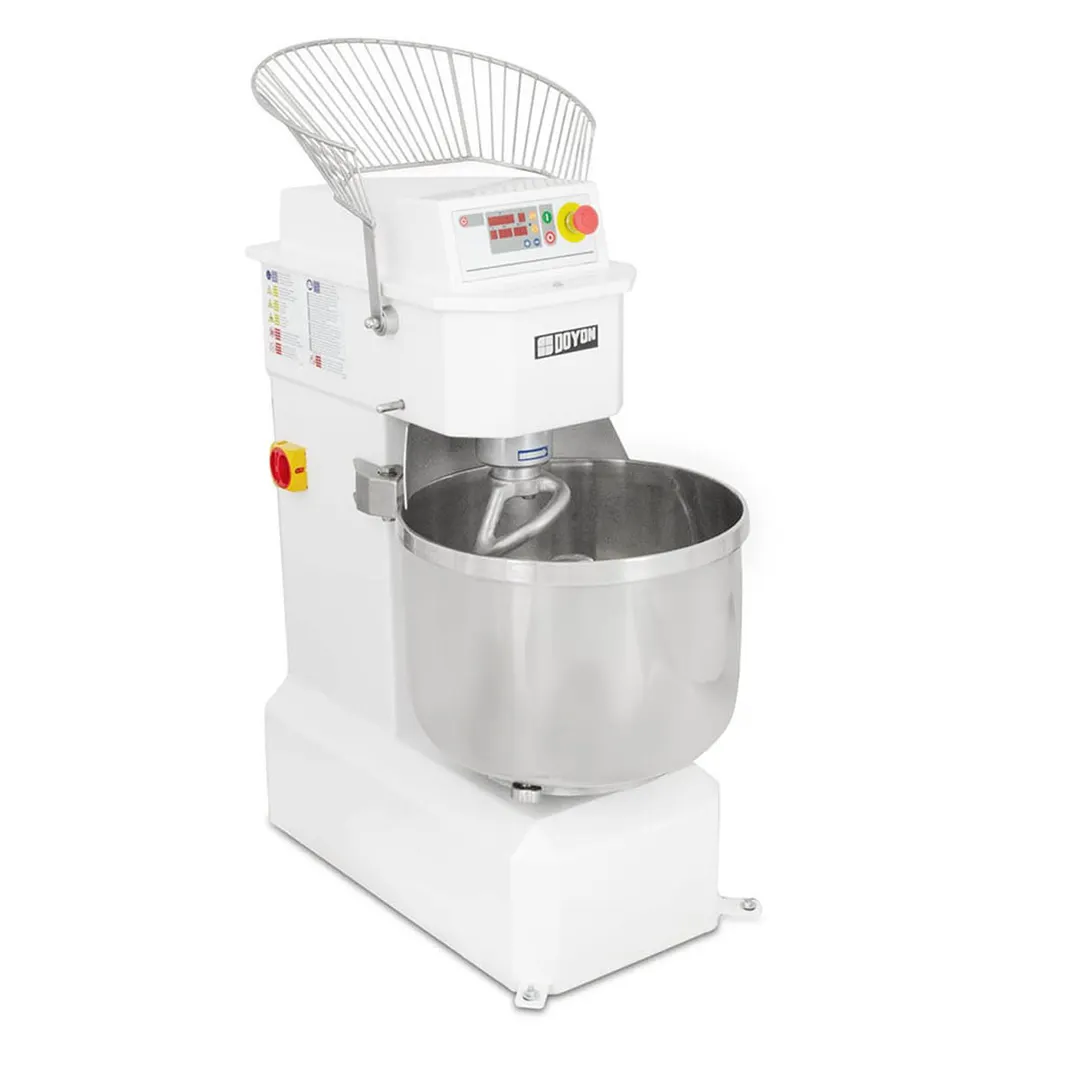

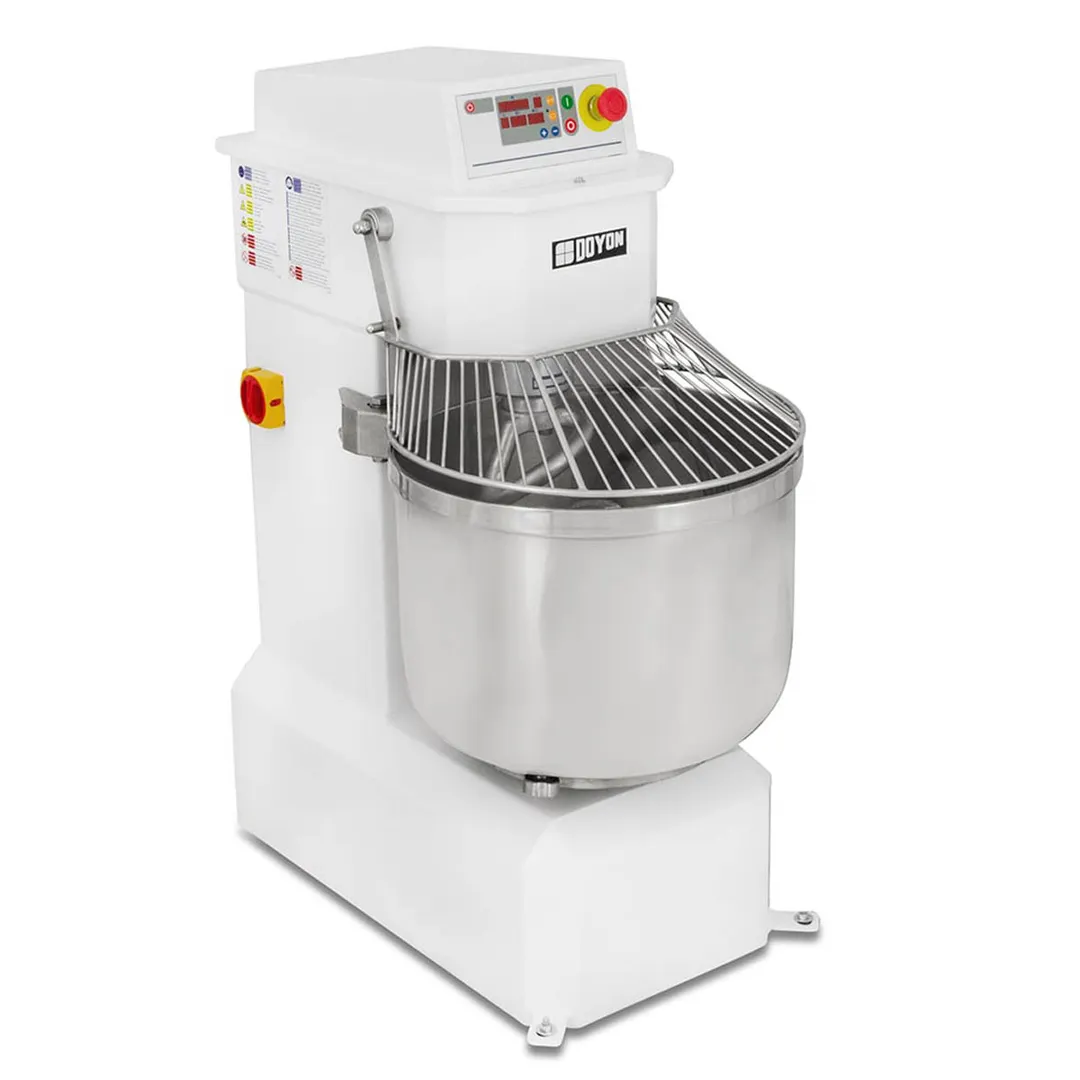

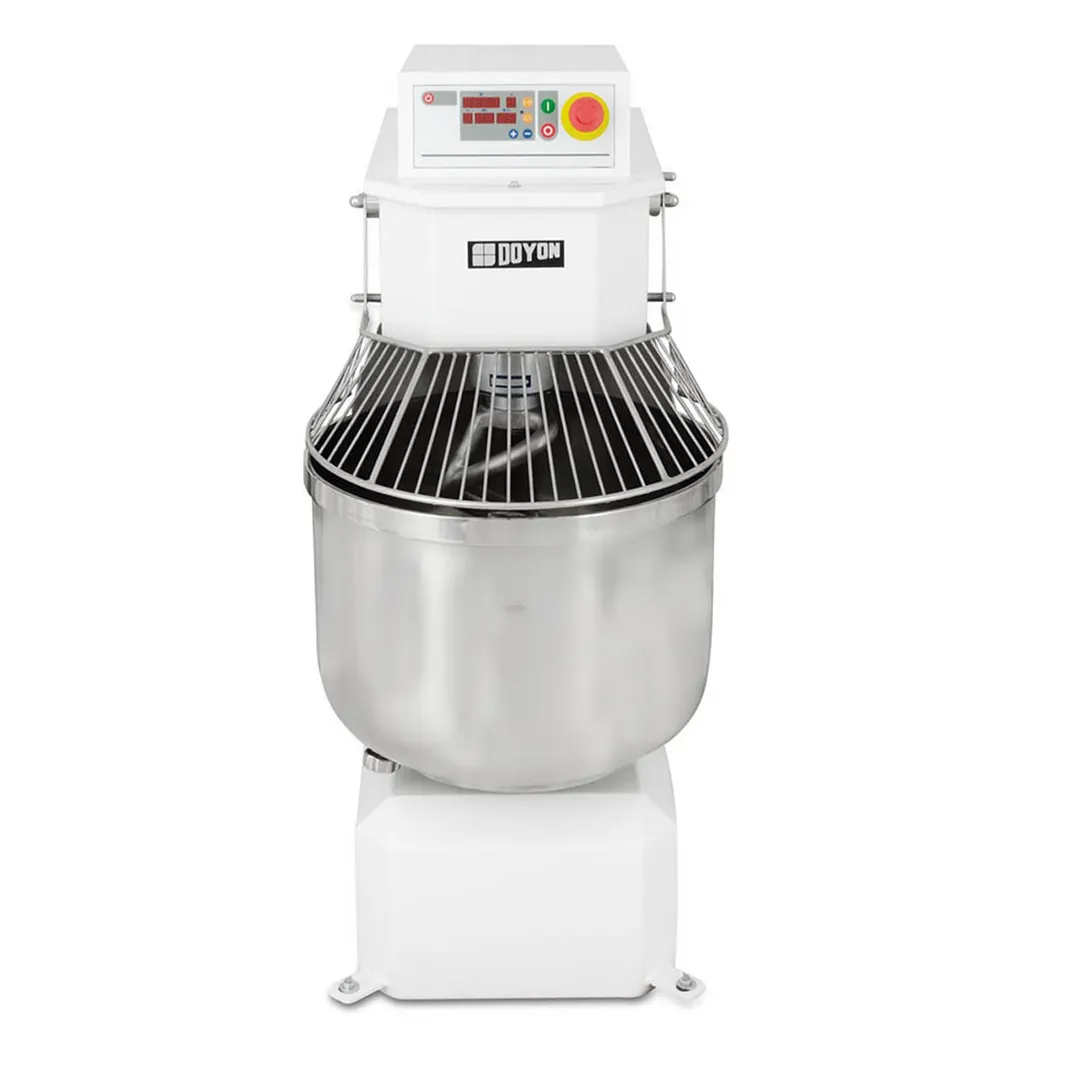

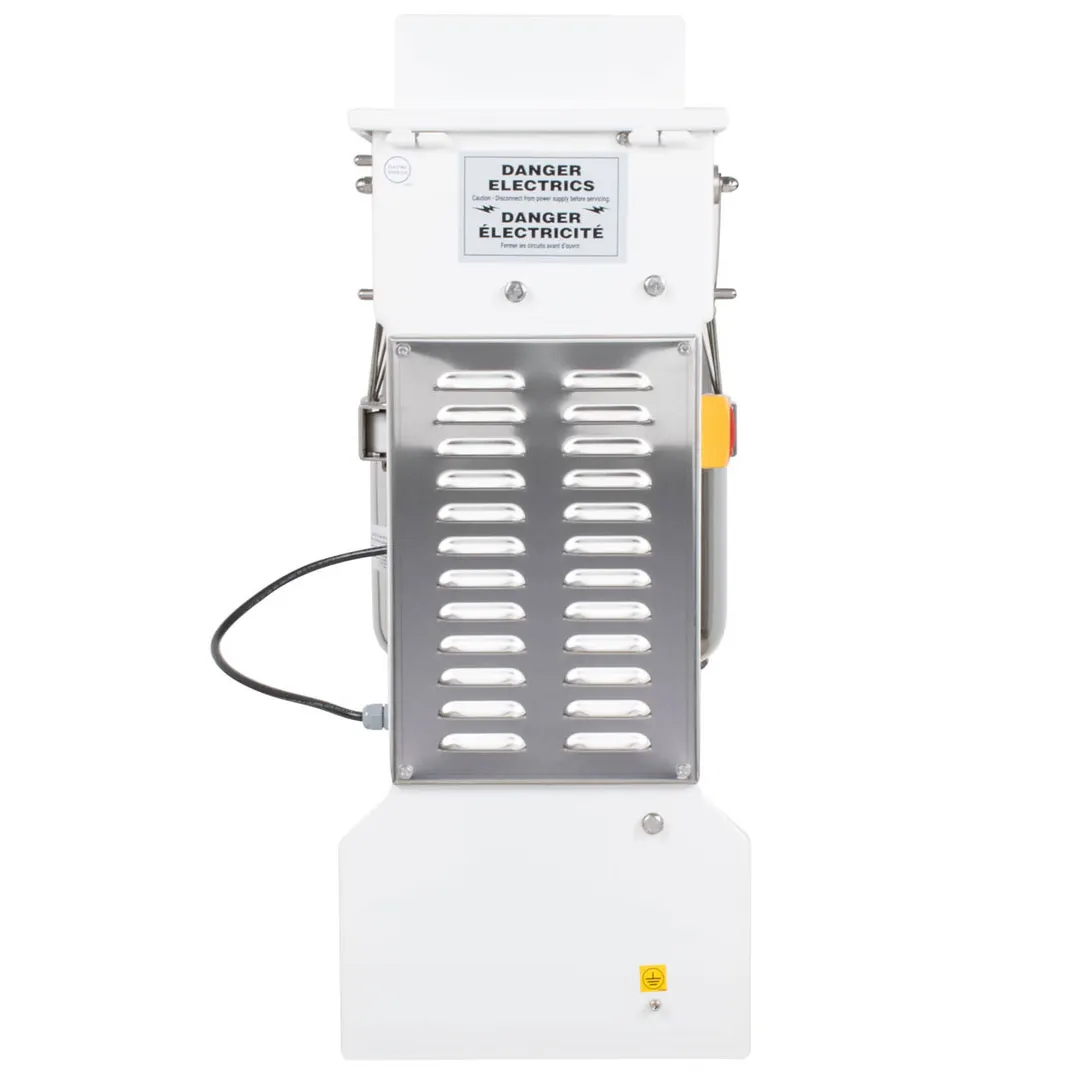

Doyon AEF015SP Spiral Mixer with 30-Qt Fixed Bowl, 2-Speed, 48 lbs Dough Capacity, 2 hp

$10,512.00
Web Price
Free Shipping
Doyon AEF015SP Spiral Mixer with 30-Qt Fixed Bowl, 2-Speed, 48 lbs Dough Capacity, 2 hp
Doyon AEF015SP Spiral Mixer with 30-Qt Fixed Bowl, 2-Speed, 48 lbs Dough Capacity, 2 hp
Doyon AEF015SP Spiral Mixer with 30-Qt Fixed Bowl, 2-Speed, 48 lbs Dough Capacity, 2 hp
Doyon AEF015SP Spiral Mixer with 30-Qt Fixed Bowl, 2-Speed, 48 lbs Dough Capacity, 2 hp
Doyon AEF015SP Spiral Mixer with 30-Qt Fixed Bowl, 2-Speed, 48 lbs Dough Capacity, 2 hp
Doyon AEF015SP Spiral Mixer with 30-Qt Fixed Bowl, 2-Speed, 48 lbs Dough Capacity, 2 hp
Doyon AEF015SP Spiral Mixer with 30-Qt Fixed Bowl, 2-Speed, 48 lbs Dough Capacity, 2 hp
Doyon AEF015SP Spiral Mixer with 30-Qt Fixed Bowl, 2-Speed, 48 lbs Dough Capacity, 2 hp
Doyon AEF015SP Spiral Mixer with 30-Qt Fixed Bowl, 2-Speed, 48 lbs Dough Capacity, 2 hp
The image above may not exactly represent the product
credit key Net 30 or as low as 256.63/mo width
credit key Credit Key
Apply Now
Financing Available
?

Small payments, big returns—view financing details now!

Doyon AEF015SP Specs
ManufacturerDoyon
Model NumberAEF015SP
Weight540 lbs
Depth29.25
Height39.75
Width17.25
Speed2-speed
Timerwith timer
Controlsprogrammable controls
Attachmentsbowl, dough hook
Bowl Typefixed
Housing Constructioncast ıron frame with enamel coated steel finish
Mixer TypeSpiral Dough
Voltage208/240
Phase1
Horsepower2 hp
Volume Capacity30 qts
Kneading Dough Capacity50 lbs
Description
Reviews

The Doyon AEF015SP AEF Series Spiral Mixers- 30 Quart Capacity

Why use Doyon Spiral Mixers?

Doyon spiral mixers are engineered to ensure the finest and most reliable machine you can own. The secret lies in the synchronized rotation of the hook with the bowl, the bow high center mid-post, as well as the design of the hook. This only one of its kind spiral mixer will mix ingredients like no other yielding better dough oxygenation and better dough development. They feature a 2 speed digital control that assures superior precision to the operator. It will significantly reduce your mixing time and keep your dough at a cooler temperature. They are ideal to mix from stiff bagel dough to gentle french dough.

High Performance

The AEF015SP Spiral Mixer features a powerful belt driven motor with overload protection for the highest reliability and efficiency while keeping maintenance cost low. The motors and non-slipping belt provide the durability and torque necessary for tough dough. It comes with 2 mixing speeds and can automatically switch from one speed to the other. It has a bowl drain for easy draining and cleaning and a design that prevents overheating of dough, promotes better yeast viability and better gluten development.

Doyon AEF015SP Features

  • Simple to use digital control
  • 9 programmable speed and time settings
  • 2 speeds for higher efficiency
  • Digital display of mixing time
  • Unique stainless steel bowl with high center that eliminates dough feeder post
  • Prevents dough overheating for longer yeast viability and better gluten development
  • Spiral hook designed for maximum efficiency
  • 2 powerful independent heavy duty motors, one for the bowl and one for the hook (except AEF015SP & AEF025SP)
  • Drain for bowl cleaning
  • See through safety bowl
  • Safety guard, bowl and mixing tool are stainless steel
  • Even the smallest batches can be made in Doyon's large spiral mixer
  • Non-slipping belt, provides durability for tough mixes
  • Heavy duty frame with lead-free enamel coating for easy cleaning
  • Mounted on casters for greater mobility
  • Quick locking device to secure mixer in place when mixing
  • Motor overload protection
  • 2 year parts 1 year labor limited warranty

Doyon AEF015SP Options

  • Stainless steel construction (suffix I)
  • Integrated water meter (for models AEF050 and higher
  • Hub attachment located on side of the mixer (uses BTF accessories)
  • Jog and reverse mode (on AEF035 and higher only)
  • Paddle
  • Bowl scraper
  • CE listed upon request

Doyon AEF015SP Specification

  • Width : 17 1/4 Inches (438 mm)
  • Depth : 29 1/4 Inches (740 mm)
  • Height : 39 3/4 Inches (1010 mm)
  • Bowl Capacity : 30 quarts
  • Min Dough Capacity 60% AR : 3 pounds (1 kg)
  • Max Dough Capacity 60% AR : 48 pounds (22 kg)
  • Horsepower : 2
  • 208-240 Volts : 10 Amps / 1PH / 50/60 Hz / NEMA 6-15P
  • Power Type : Electric

From The Manufacturer

Spiral Mixer, 50 lb. dough capacity, 2 speeds, programmable digital control, stationary stainless steel bowl, safety guard & dough hook, cast iron frame with enamel coated steel finish, 2 HP, 208-240/60/1-ph, 10 amps, NEMA 6-15P, cETLus, ETL-Sanitation
