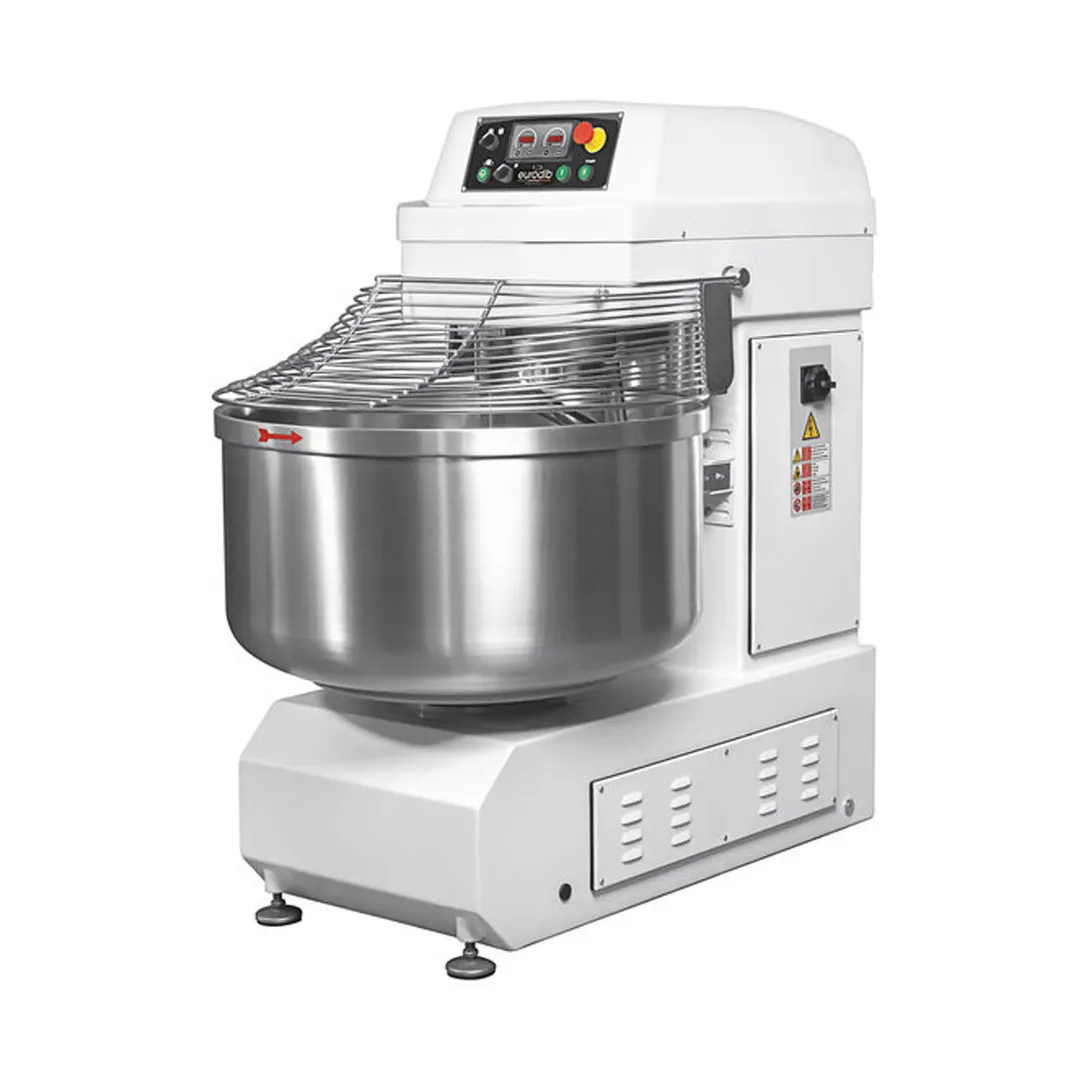

Eurodib Spiral Mixer With Fixed Bowl

FEATURES:

Manual or automatic function
Digital control panel
2 programmable timers (one for each mixing speed)
Independent start buttons for speed 1 & speed 2
Bowl rotation selector (clockwise or counterclockwise)
Standard rotation = counterclockwise
Speed 2 = counterclockwise only
Timer selector: use timer or choose bypass to stop manually
Impulse bowl rotation: Press + hold for slow bowl rotation while guard is lifted, providing easier access to product
Vertical column in bowl (fixed to machine head, touches bottom of the bowl): separates dough from the spiral arm and allows for contact with ambient air during bowl rotation before returning into contact with spiral arm.

BELT DRIVE:

Two electric motors: one drives the arm and the other drives the bowl
MSP JET/T: direct motion drive using a spiral arm motor pulley with a single series of belts
MSP JET/TS: motion drive using a spiral arm motor pulley with two series of belts and intermediate reduction of the number of rotations

From The Manufacturer

Spiral Mixer, 70 liter capacity, (2) programmable timers, mxing speed: 100/200 RPM, bowl speed: 16 RPM, bowl rotation selector, direct motion drive using a spiral arm motor pulley with a single series of belts, (4) stabilizing feet, stainless steel, 3600 watts, 208-220v/60/3-ph, 14 amps, cETLus, ETL-Sanitation, NSF

Images show the product series. Color, configuration, included items and accessories vary by model. See the spec sheet for this model.

Manufacturer	Eurodib USA
Model Number	MSP50JETT
Weight	661.4 lbs
Width	18.5″
Depth	41.3″
Height	43.3″
Mixer Type	spiral dough
Speed	1-speed
Timer	with timer
Attachments	bowl, bowl guard, dough hook
Bowl Type	fixed
Housing Construction	painted steel
Voltage	208/220
Certifications	cETLus, ETL-Sanitation, NSF
Phase	3
Horsepower	5 hp
Volume Capacity	74 qts
Kneading Dough Capacity	88,2 lbs
Flour Capacity	55 lbs

	Eurodib MSP50JETT Spiral Mixer with 74 qt Fixed Bowl, Single Speed, 88,2 lbs Dough Capacity Free Shipping	Eurodib MSP80JETTS Spiral Mixer with 150 qt Fixed Bowl, Single Speed, 176,4 lbs Dough Capacity Free Shipping	Eurodib MSP60JETT Spiral Mixer with 100 qt Fixed Bowl, Single Speed, 132,3 lbs Dough Capacity Free Shipping	Eurodib LM30T (LM30TETL) 30 qt Spiral Dough Mixer with Timer, 26.5 lbs Kneading Capacity	Eurodib LM40T (LM40TETL) Spiral Mixer with 40 qt Fixed Bowl, Single Speed, 35 lbs Dough Capacity	Eurodib LM50T (LM50TETL) Spiral Mixer with 50 qt Fixed Bowl, 1-Speed, 44 lbs Dough Capacity	Eurodib LM20T (LM20TETL) 20 qt Spiral Dough Mixer with Timer, 17.5 lbs Kneading Capacity	Dough Tech M40 Spiral Dough Mixer	Omcan USA 13167 Spiral Dough Mixer Free Shipping
Price	Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingFree Shipping
Horsepower	Horsepower5 hp	Horsepower8 hp	Horsepower5-3/10 hp	Horsepower3-1/2 hp	Horsepower4 hp	HorsepowerNo	Horsepower1-1/2 hp	Horsepower-	Horsepower-
Voltage	Voltage208/220	Voltage208/220	Voltage208/220	Voltage220	Voltage220	Voltage220	Voltage110	Voltage-	Voltage-
Phase	Phase3	Phase3	Phase3	Phase1	Phase1	Phase1	Phase1	Phase-	Phase-
Certifications	CertificationsNSF, cETLus, ETL-Sanitation	CertificationsNSF, cETLus, ETL-Sanitation	CertificationsNSF, cETLus, ETL-Sanitation	CertificationsNo	CertificationsNo	CertificationsNo	CertificationsNo	Certifications-	CertificationsCE, Made in Italy
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)18.5	WIDTH (SIDE - SIDE)28.7	WIDTH (SIDE - SIDE)24	WIDTH (SIDE - SIDE)28.7	WIDTH (SIDE - SIDE)34	WIDTH (SIDE - SIDE)36	WIDTH (SIDE - SIDE)27.5	WIDTH (SIDE - SIDE)-	WIDTH (SIDE - SIDE)16.5
Manufacturer	ManufacturerEurodib USA	ManufacturerEurodib USA	ManufacturerEurodib USA	ManufacturerEurodib USA	ManufacturerEurodib USA	ManufacturerEurodib USA	ManufacturerEurodib USA	ManufacturerDough Tech	ManufacturerOmcan USA
Speed	Speed1-speed	Speed1-speed	Speed2-speed	Speed1-speed	Speed1-speed	Speed1-speed	Speed1-speed	Speed2-speed	Speed1-speed
Attachments	Attachmentsbowl, bowl guard, dough hook	Attachmentsbowl, bowl guard, dough hook	Attachmentsbowl, bowl guard, dough hook	Attachmentsbowl, dough hook	Attachmentsbowl, dough hook	Attachmentsbowl, dough hook	Attachmentsbowl, dough hook	Attachmentsbowl, bowl guard, dough hook	Attachmentsbowl, dough hook
Dough Capacity	Dough Capacity1 - 100 lbs	Dough Capacity101 - 200 lbs	Dough Capacity101 - 200 lbs	Dough Capacity1 - 100 lbs	Dough Capacity1 - 100 lbs	Dough Capacity1 - 100 lbs	Dough Capacity1 - 100 lbs	Dough Capacity1 - 100 lbs	Dough Capacity1 - 100 lbs
Bowl Type	Bowl Typefixed	Bowl Typefixed	Bowl Typefixed	Bowl Typefixed	Bowl Typefixed	Bowl Typefixed	Bowl Typefixed	Bowl Typefixed	Bowl Typefixed
Mixer Type	Mixer Typespiral dough	Mixer Typespiral dough	Mixer Typespiral dough	Mixer Typespiral dough	Mixer Typespiral dough	Mixer Typespiral dough	Mixer Typespiral dough	Mixer Typespiral dough	Mixer Typespiral dough
Timer	Timerwith timer	Timerwith timer	Timerwith timer	Timerwith timer	Timerwith timer	Timerwith timer	Timerwith timer	Timerwith timer	Timerwith timer
Housing Construction	Housing Constructionpainted steel	Housing Constructionpainted steel	Housing Constructionpainted steel	Housing Constructionpainted cast iron	Housing Constructionpainted cast iron	Housing Constructionpainted cast iron	Housing Constructionpainted cast iron	Housing Constructionstainless steel	Housing Constructionpainted
Color	Color-	Color-	Color-	Colorwhite	Colorwhite	Colorwhite	Colorwhite	Color-	Color-

Manufacturer	Eurodib USA
Model Number	MSP50JETT
Weight	661.4 lbs
Width	18.5″
Depth	41.3″
Height	43.3″
Mixer Type	spiral dough
Speed	1-speed
Timer	with timer
Attachments	bowl, bowl guard, dough hook
Bowl Type	fixed
Housing Construction	painted steel
Voltage	208/220
Certifications	cETLus, ETL-Sanitation, NSF
Phase	3
Horsepower	5 hp
Volume Capacity	74 qts
Kneading Dough Capacity	88,2 lbs
Flour Capacity	55 lbs
