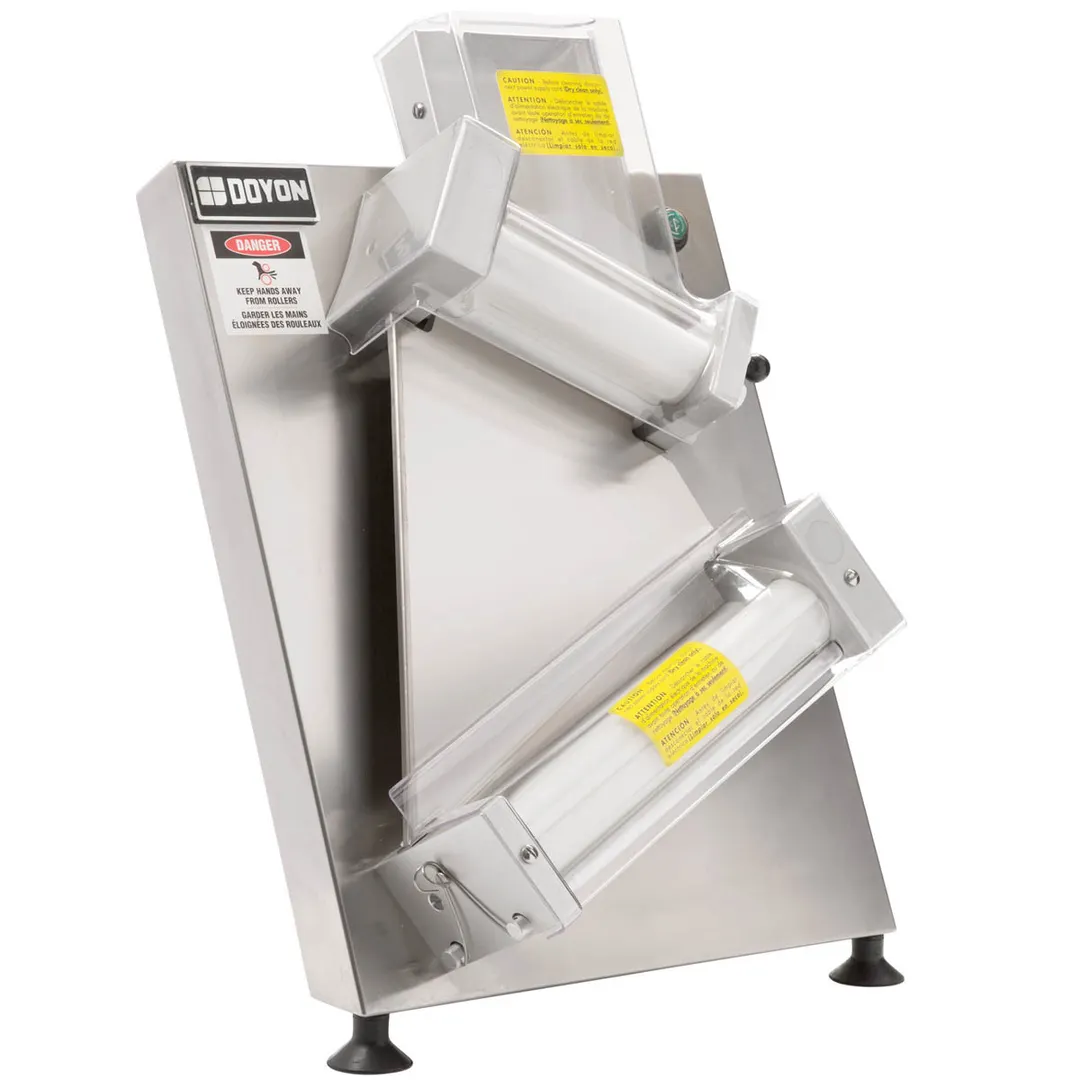

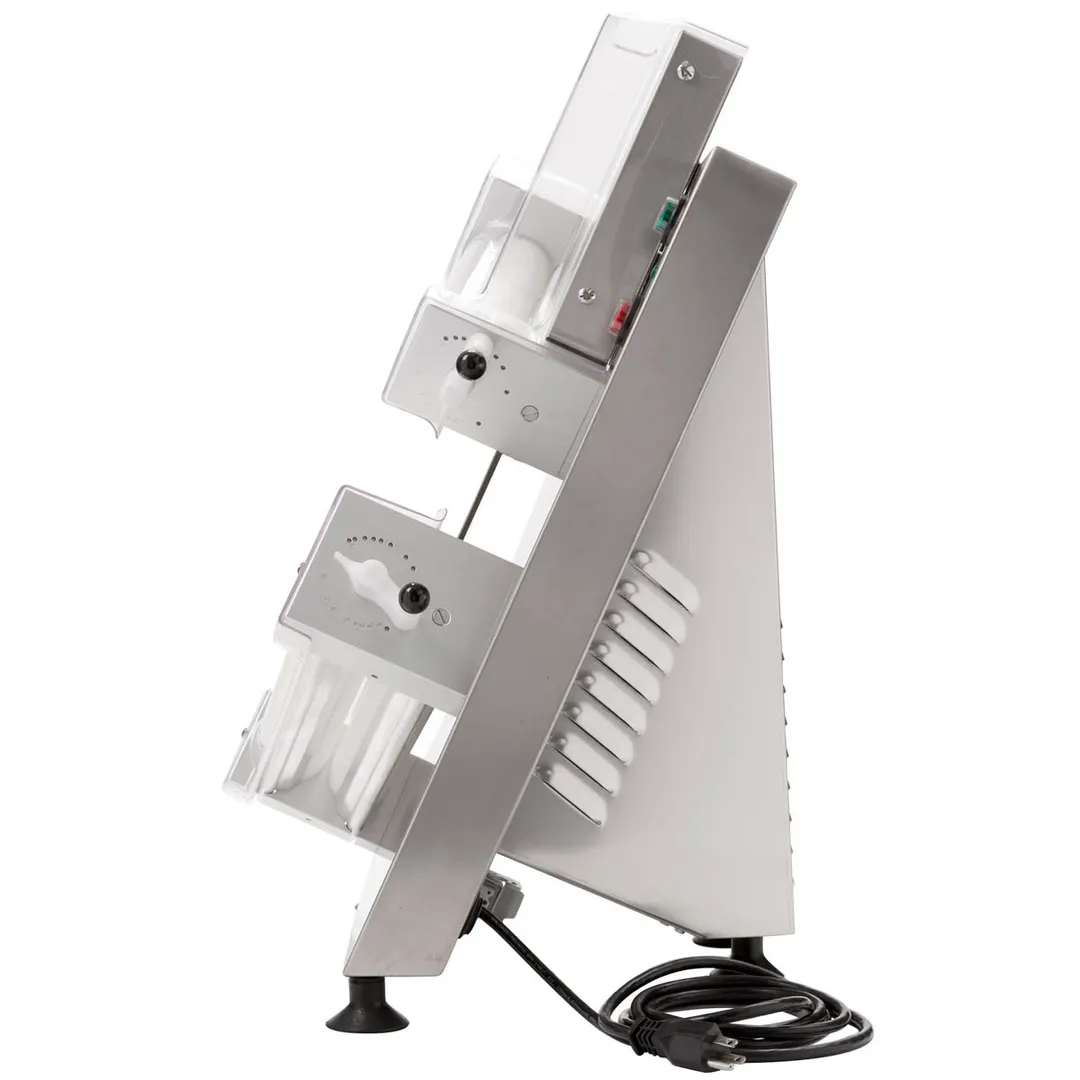

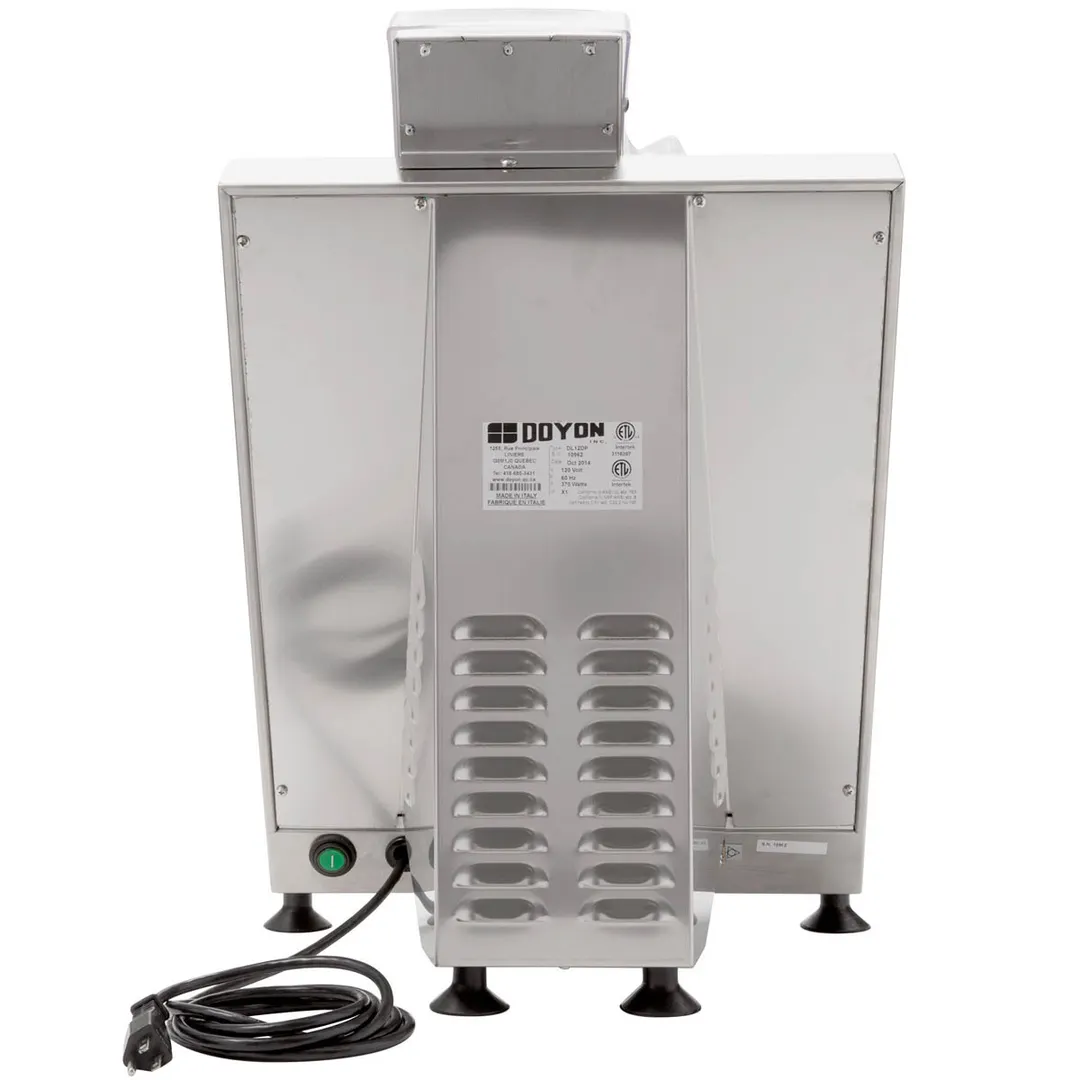

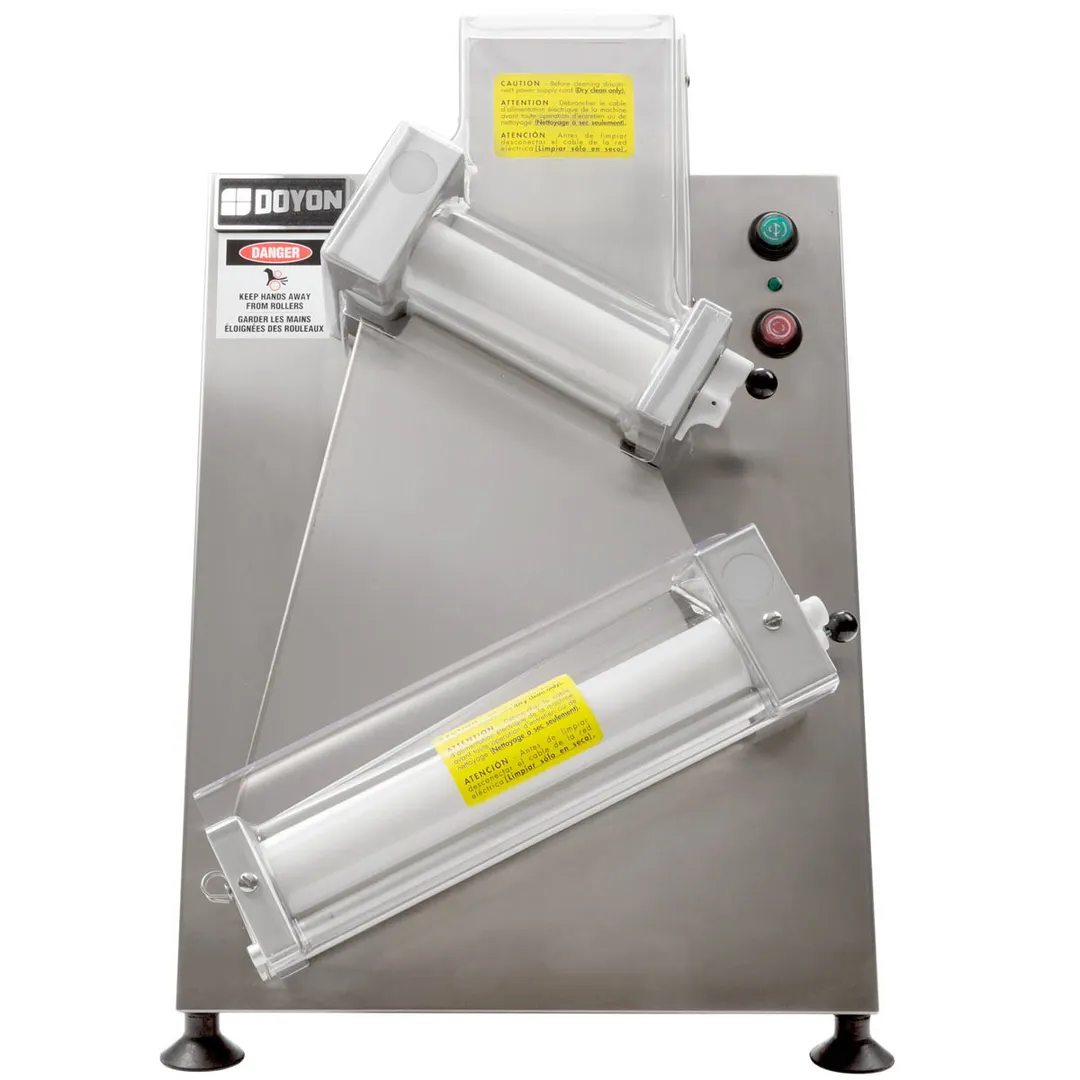

Doyon DL12DP Countertop Double Pass Dough Sheeter, 12" Diagonal Two Rollers, 1/2 Hp

SKU DOY-DL12DP

$4,417.00/Each

Free Shipping

Doyon DL12DP Countertop Double Pass Dough Sheeter, 12" Diagonal Two Rollers, 1/2 Hp

Doyon DL12DP Countertop Double Pass Dough Sheeter, 12" Diagonal Two Rollers, 1/2 Hp

Doyon DL12DP Countertop Double Pass Dough Sheeter, 12" Diagonal Two Rollers, 1/2 Hp

Doyon DL12DP Countertop Double Pass Dough Sheeter, 12" Diagonal Two Rollers, 1/2 Hp

Doyon DL12DP Countertop Double Pass Dough Sheeter, 12" Diagonal Two Rollers, 1/2 Hp

The image above may not exactly represent the product

$4,417.00/Each

0% Interest for 30 Days with

View Comparelist

Financing Available

Small payments, big returns—view financing details now!

Information

Usually ships in 2-5 business days

Resources

resources of Spec Sheet

resources of Middleby Financial Flyer

Middleby Financial Flyer

Doyon DL12DP Specs

Manufacturer	Doyon
Model Number	DL12DP
Weight	100 lbs
Width	17″
Depth	10.63″
Height	25.25″
Installation Type	countertop
Power Type	electric
Dough Processing Type	dough sheeter
Processing Stage	dual stage
Operation Side	front operation
Roller Direction	single direction
Horsepower	1/2 hp
Roller style	teflon
Roller size	12"
Construction	stainless steel
Voltage	120
Phase	1
Production Capacity	600 pcs/hr

View All Doyon Products >

Description

Reviews

The Doyon DL12DP Countertop 12" Dough Sheeter

Why use Doyon Dough Sheeter?

The Doyon DL12 series dough sheeter is an efficient one (DL12SP) or two stage (DL12DP) machine featuring a front infeed and discharge. Ergonomic design makes it easy and simple to operate. Sheeting is made easy with this compact, counter top design that is simple to use. Back strain is reduced since rolling pin work is minimized or eliminated. Save time and effort.

Doyon DL12DP Countertop 12 Dough Sheeter, Chefs Deal's

Doyon DL12DP Countertop 12 Dough Sheeter,Chefs Deal's

High Performance

Sheet dough up to 12” (305 mm) in diameter to a uniformed thickness in seconds. One operator can make up to 250 pieces per hour in just two easy steps. The Quick Change Index System quickly changes the gap between the dough rollers. Sheet all types of dough including cinnamon rolls, doughnuts, perogies, danish and puff pastry up to 12” (305 mm).

Doyon DL12DP Features

Heavy-duty, maintenance-free 1/2 HP motor with sealed, permanently lubricated ball bearings for trouble-free operation
Quick change index system, simple adjustments for dough thickness
Three legs with fitted non-slip rubber boots
Recommended for dough with a moisture content of 50-60%
Stainless steel construction
Compact design, ideal for use in a limited space
Ideal for pizzas, tortillas, wraps, flat bread, etc. with an absorption rate of 50-60%
DL12SP & DL12DP : up to 12” (305 mm) diameter
Minimum rollers gap: 1/32”- Maximum rollers gap : 17/64”
Sheet up to 250 pieces per hour
Scrapers, sanitary and easily removed for cleaning
Sealed bearings
Adjustable roller gap

Doyon DL12DP Specification

Width : 17 inches (432mm)
Depth : 10 5/8 inches (271 mm)
Height : 25 1/4 inches (641mm)
Maximum Dough Diameter : 12 inches (305mm)
Amps : 6
Hertz : 60
Phase : 1
Voltage : 120
Watts : 370
HP : 1/2
Output : 250 pieces/hour
Portion Weight : 1 - 20 ounces
Power Type : Electric
Plug Type : NEMA 5-15P

From The Manufacturer

Dough Sheeter, countertop, two (2) sets of rollers, sheets up to 12" wide, up to 600 pieces per hour, Teflon rollers, adjustable roller gap, stainless scraper, infeed & chute, stainless steel construction, 1/2 HP motor, cETLus
