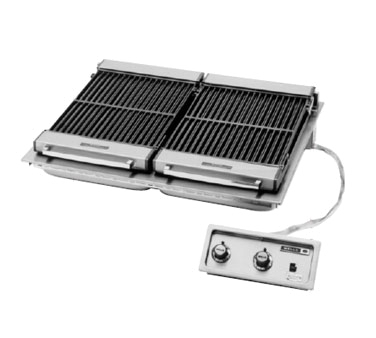

Wells B-506 BUILT-IN CHAR BROILER
FEATURES:
- Self-cleaning elements are positioned between the broiler grate ribs to guard against direct food contact and spatula abrasion. The elements also provide dual heating action (conductive and radiant).
- Temperature is regulated by two infinite controls with a positive-off position and signal lights to indicate a power-on condition.
- Each element frame assembly has a spring-loaded support rod to secure element when in a raised position.
- Lift-out, drawn drip pans with handles and removable cast iron grates allow fast and easy cleaning.
- Each individual control regulates one half of the grid surface area for cooking versatility.
- Controls are recessed in a one-piece, drawn, stainless steel panel to help prevent accidental temperature changes.
- A terminal block is provided for field connection to the main power supply.
- Each unit is provided with a grate scraper/brush.
- The B-506 Broiler is Underwriters Laboratories, Inc. Recognized and meets NSF International standards.
DESCRIPTION:
- Wells B-506 Built-In Char Broiler has a stainless steel top that makes this broiler one of the most durable in the industry. Self-cleaning elements are protected by the heavy-duty cast-iron grates and provide two heat zones for broiling flexibility.
From The Manufacturer
Charbroiler, built-in, electric, cast iron grate, 36" wide, stainless steel construction, with grease pan and scraper/brush, RU, NSF-4
