Accurex Fire Suppression System w/ Fire Parts
Features And Benefits
- Non-corrosive : Low pH fire suppression agent is non-corrosive to stainless steel and can be safely cleaned up with water and a sponge
- Convenient : Accurex coordinates all of the fieldwork, including the application for permits and performing puff tests, saving you valuable time. Factory pre-piped systems require less jobsite installation, saving cost and time
- Professional look : Factory systems look finished and professional
- Meets Code : NFPA 96 and 17A for wet chemical fire suppression systems
- Cost Effective : Nozzels are selected and aimed at specific hazards on each appliance instead of covering for all possible appliance line-ups. Up to 140 flow points - most in the industry without adding additional controls
- Nationwide service : Nationwide coverage to service the product both during install and after
- Pre-pressurized tanks : No filling required in the field
- Form plus function : Highest nozzle placement in the industry improves appearance and keeps the system out of the cooking staff's way
From The Manufacturer
Model: FSSC - PO - 0 - 2
Scope:
Parts Only: This option includes fire parts that can be shipped loose, such as actuators, releases, switches, and tanks. It does not include any prepiping, or parts which would be necessary to provide in the field such as connections from the hood to the tanks and release, links, cartridges, and agent. It also does not include labor, testing, or permits.

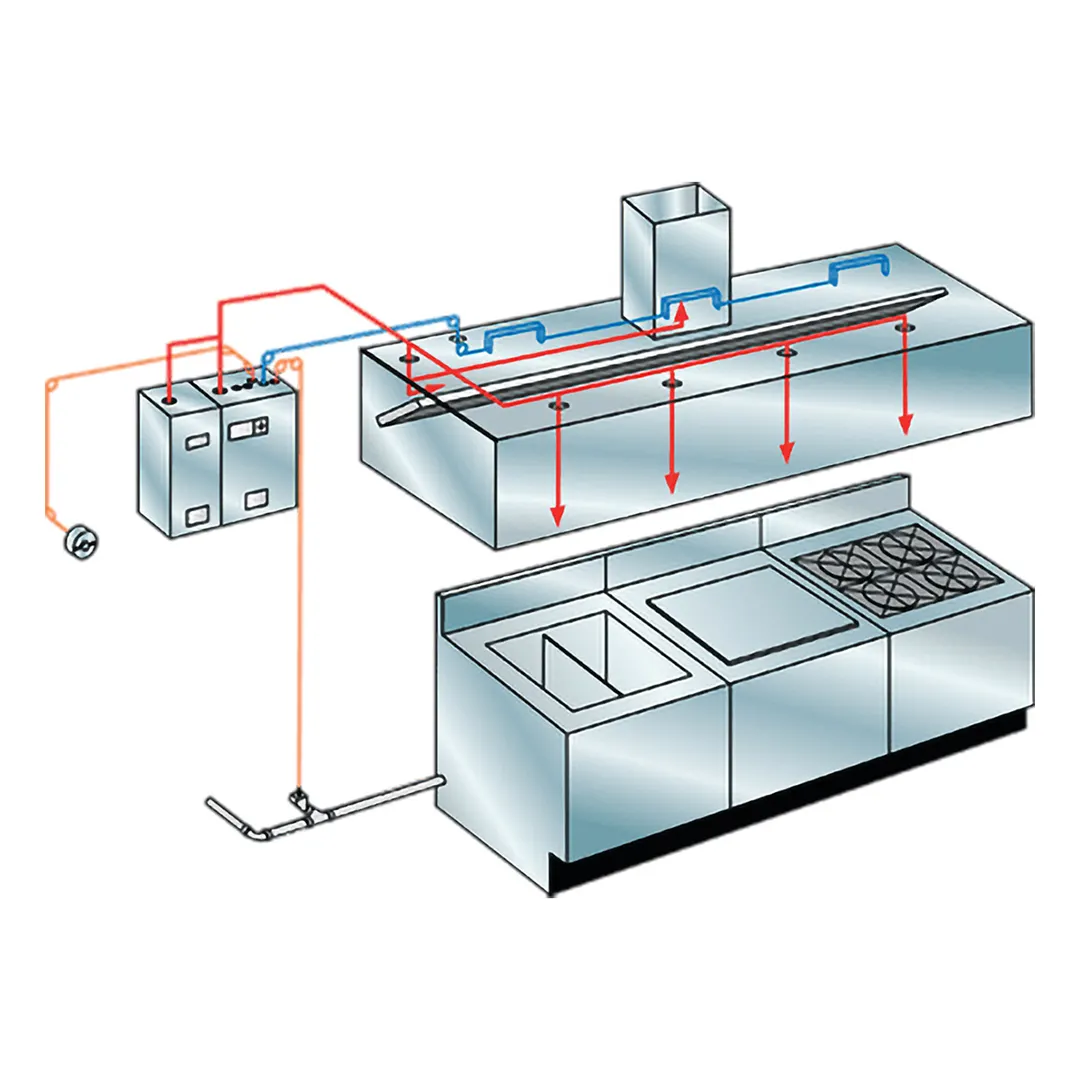

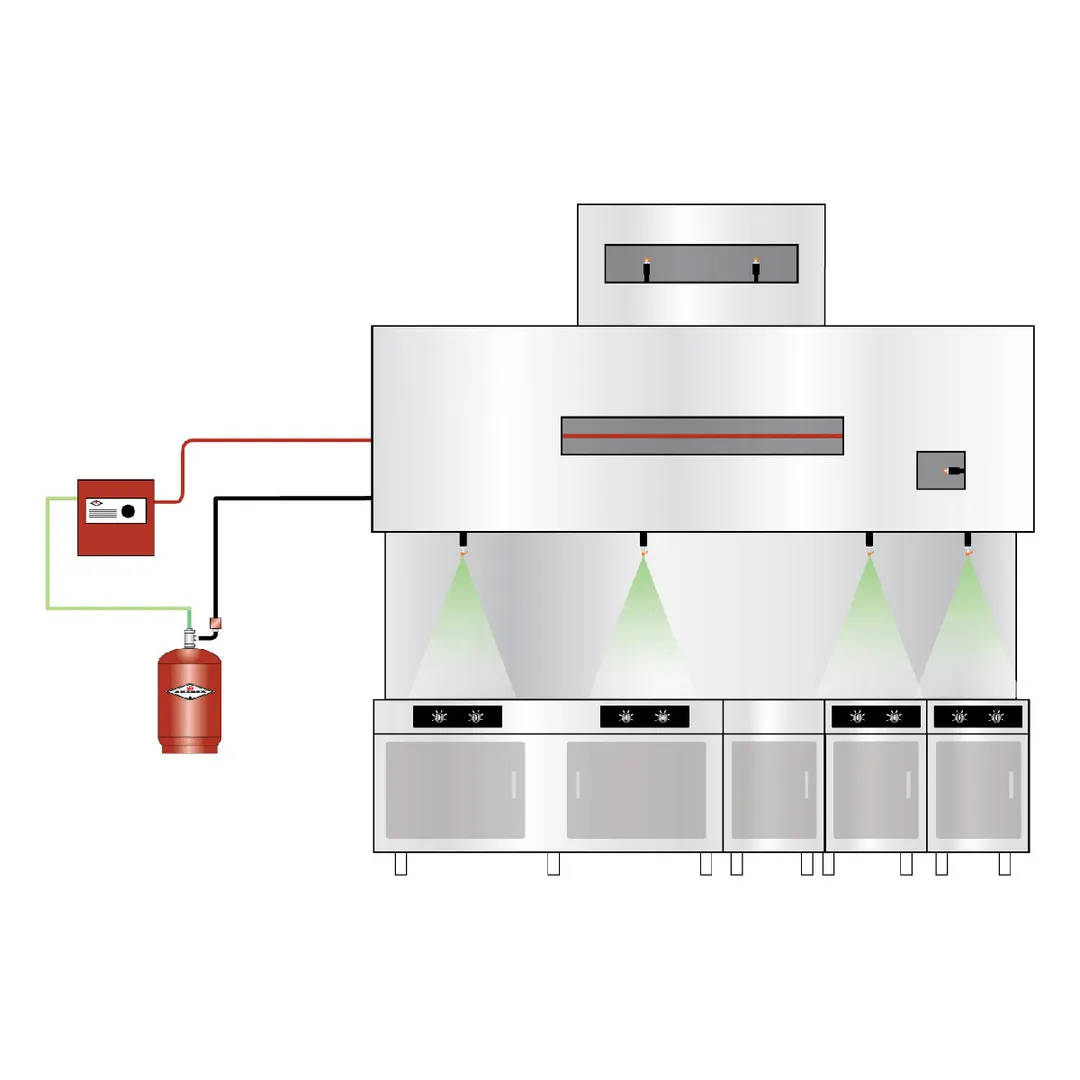

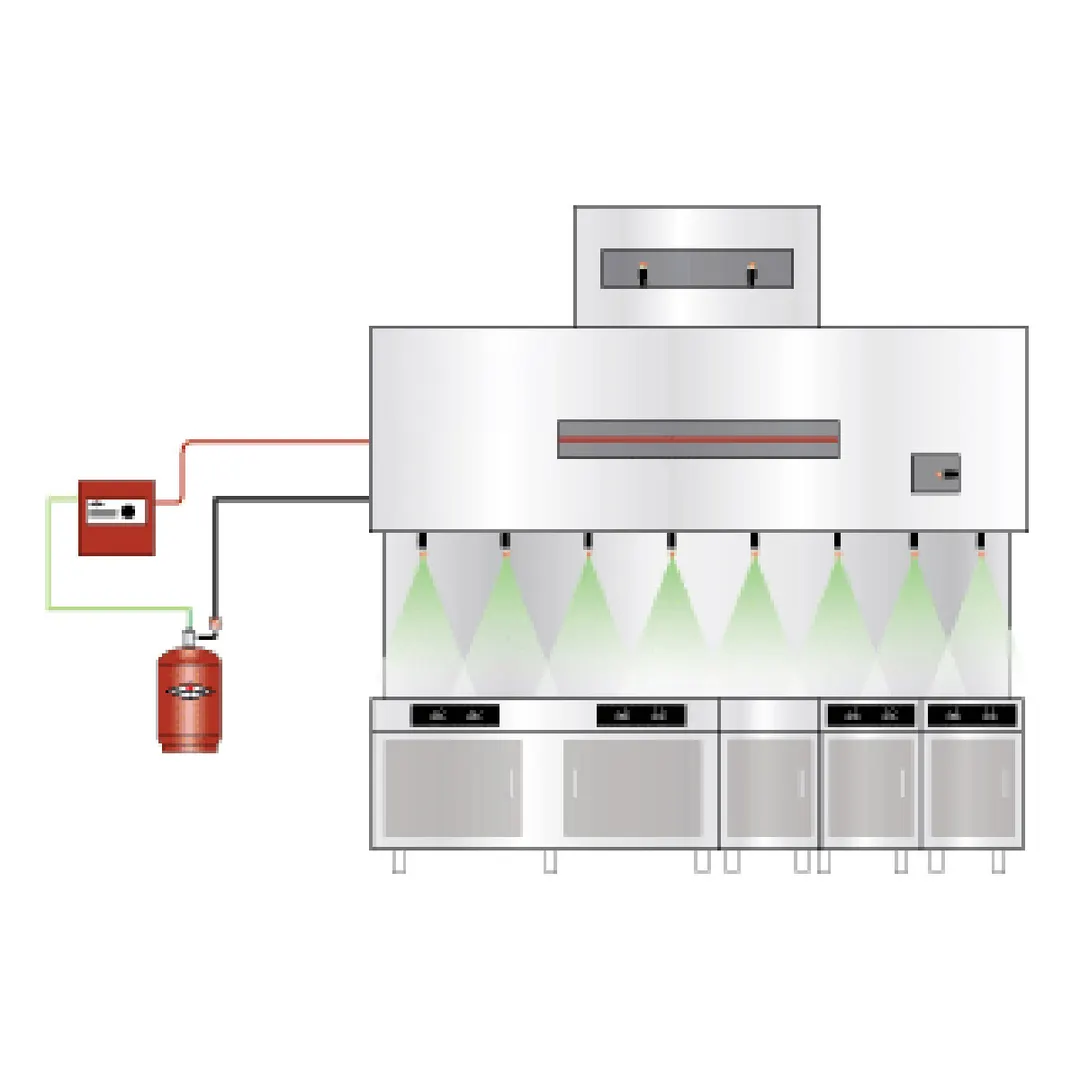

Hood Fire Suppression System
Detection Type Mechanical
Coverage Appliance Specific
Hood Mark(s) Connected
Mounting Location Wall-mounted cabinet of size LxWxD
System Size 6 Gallon
Flow Points Maximum of 22
Options and Accessories for Hood Fire System Provided from Factory
Gas Valve 2", mechanical
Manual Pull Stations QTY of 1
Hood Microswitch QTY of 1
Alarm Initiating Switch QTY of 1
Important Notes
● Systems are not pre-piped from the factory. Systems must be installed and piped in the field for the types and sizes of appliances to be protected.
Model: GAS VALVE
Configuration:
Ansul
Mechanical
2 in.
Images are for reference. Color, configuration, dimensions and what's included vary by model.
