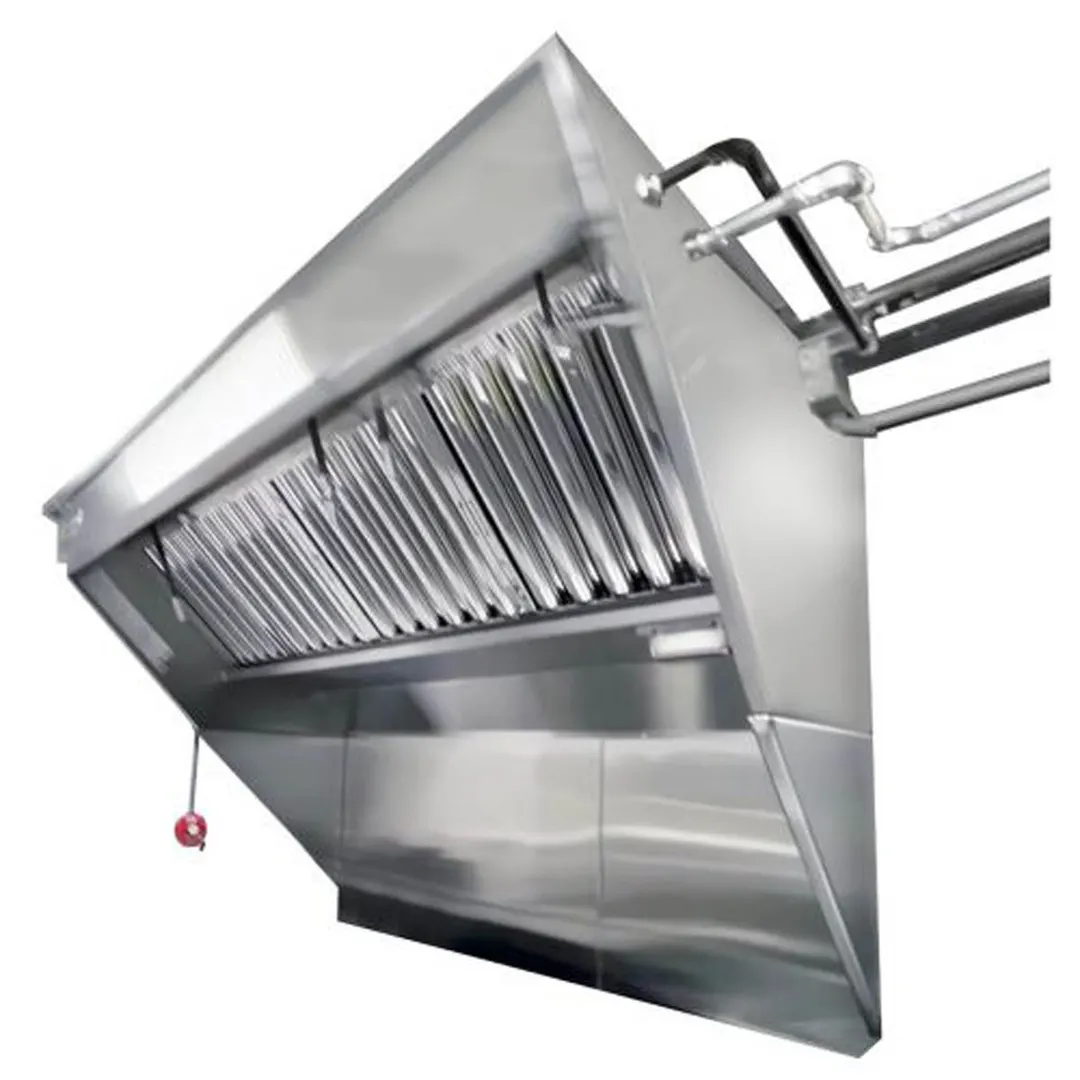

Hoodmart LBOX-AV6C 6'X40" Integrated Exhaust Hood & Fan System, Single Exhaust Louver
HoodMart LBOX-AV6C Standard Features
- 6" x 40" Low Box Concession w/Single Exhaust Louver
- 7" Front 24" Back
- Made in USA
- (1x) Integrated Blower and Motor
- Factory Mounted Grease Duct with Louver
- 20" Stainless Steel Filters
- Built in 6" Air Gap (Available with Zero Clearance Insulation)
- Stainless Steel Grease Cup
- Two Full Length Hanger Rails
- Side Curtains
- Includes Pre-Piped Ansul Fire Suppression System
- 2 Year Warranty
Hood General Specifications
- First UL710 listed assembly with integrated fan, tested in accordance with AMCA 210-16 and ASHRAE 51-16
- NFPA96 and IMC approved
- FDNY COA listed
- NSF certified
- 6'-1" - 10'-0" long with dual blowers and outlets
- Hoods are constructed of 18 gauge stainless steel
- All joints are welded liquid tight, without seams
- Grease Filters are 20" stainless steel baffle type which carry a UL listing
- Grease trough is made to receive grease extracted by the filter
- Each Grease trough is equipped with a stainless steel cup
- Factory mounted grease duct with louver
- 1" Ceiling enclosure installed on top of hood with (2) structural full length hanging channels
From The Manufacturer
Low Box Integrated Concession w/Single Exhaust Louver, 6' X 40", type 1, 7" front 24" back, integrated blower and motor, 20" stainless steel filters, side curtains, built in accordance with NFPA 96, NSF, U.L. 710i made in USA
