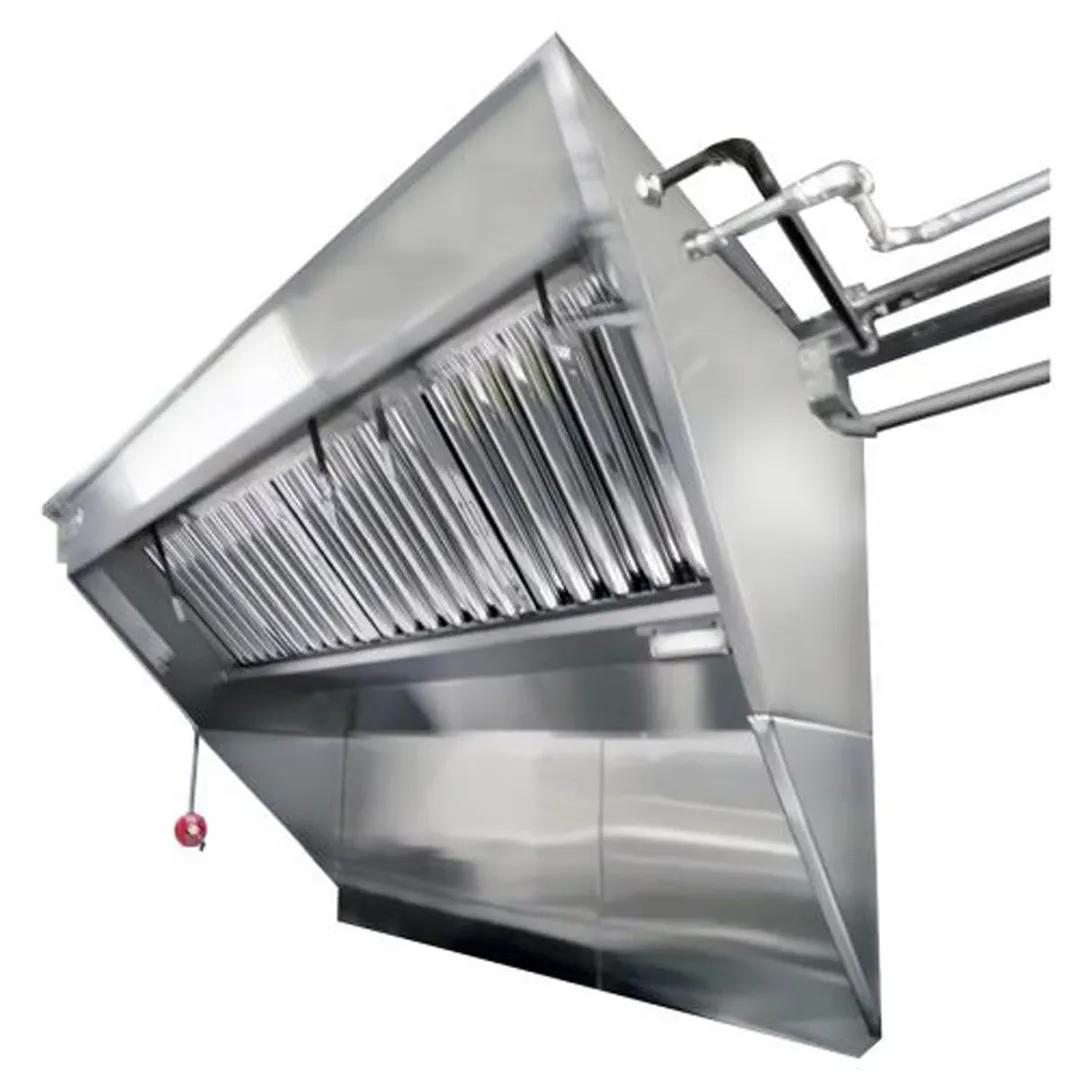

Hoodmart LBOX-AV8C-AF 8' X 40" Integrated Exhaust Hood & Fan System w/ Fire Suppression
HoodMart LBOX-AV8C-AF Standard Features
- 8' x 40" Low Box Concession w/Double Exhaust Louver
- 7" Front 24" Back
- Made in USA
- (2x) Integrated Blower and Motor
- Factory Mounted Grease Duct with Louver
- 20" Stainless Steel Filters
- Built in 6" Air Gap (Available with Zero Clearance Insulation)
- Stainless Steel Grease Cup
- Two Full Length Hanger Rails
- Side Curtains
- 2 Year Warranty
Hood General Specifications
- First UL710 listed assembly with integrated fan, tested in accordance with AMCA 210-16 and ASHRAE 51-16
- NFPA96 and IMC approved
- FDNY COA listed
- NSF certified
- 6'-1" - 10'-0" long with dual blowers and outlets
- Hoods are constructed of 18 gauge stainless steel
- All joints are welded liquid tight, without seams
- Grease Filters are 20" stainless steel baffle type which carry a UL listing
- Grease trough is made to receive grease extracted by the filter
- Each Grease trough is equipped with a stainless steel cup
- Factory mounted grease duct with louver
- 1" Ceiling enclosure installed on top of hood with (2) structural full length hanging channels
From The Manufacturer
8' X 40" Low Box Integrated Concession w/Single Exhaust Louver, with pre-piped ANSUL fire suppression system, type 1, 7" front 24" back, integrated blower and motor, 20" stainless steel filters, side curtains, built in accordance with NFPA 96, NSF, U.L. 710i made in USA
