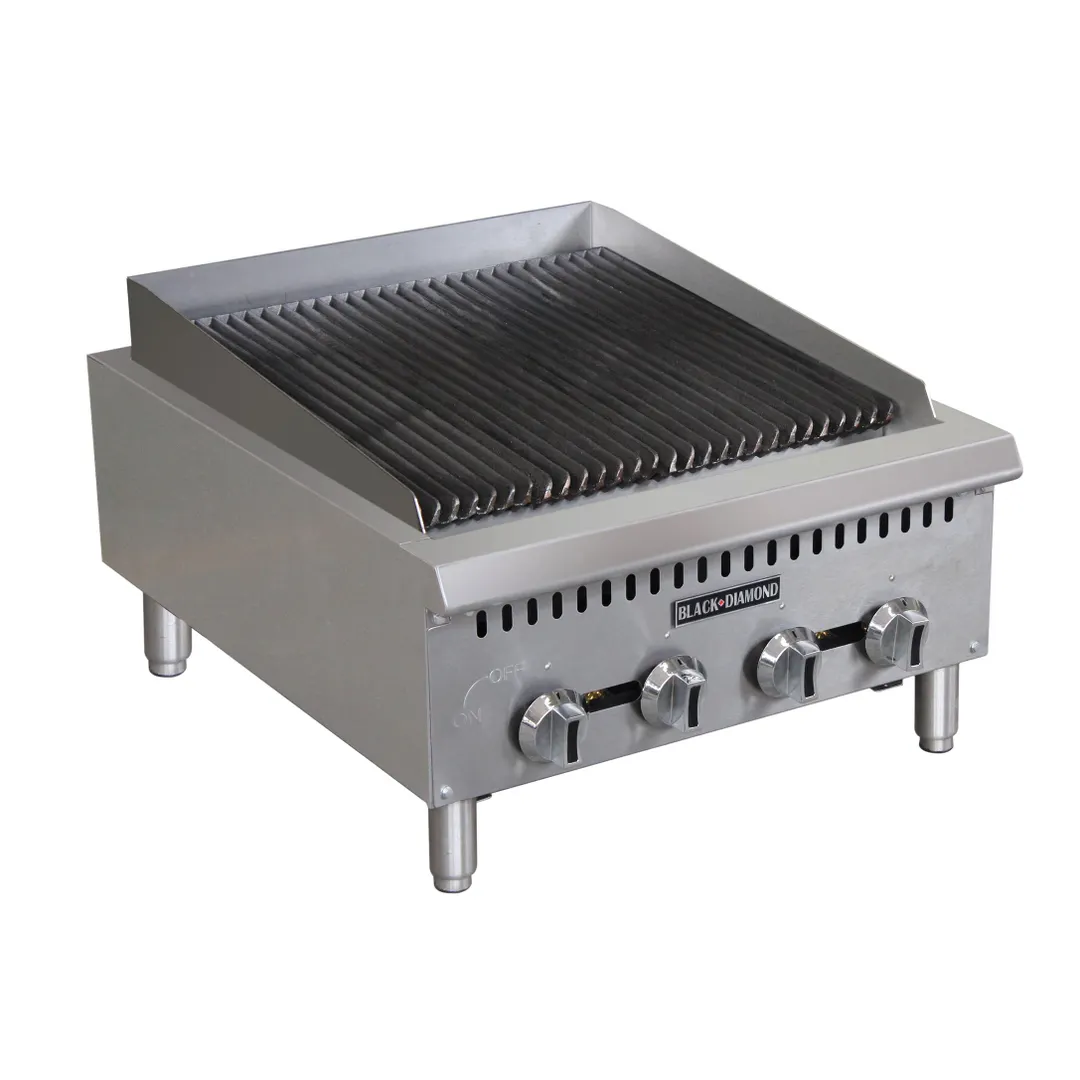

The Adcraft BDCTC-24 Black Diamond Heavy Duty Radiant Gas Charbroiler

Why Use Adcraft Gas Charbroiler ?

Black Diamond gas charbroilers will help you give that classic smoky flavor and markings to steaks, vegetables and other foods. Our stainless steel charbroilers are available in standard or heavy-duty models and come in a range of sizes from one to six burners.

Adcraft BDCTC-24 Features

Stainless steel front bullnose design and side construction that’s fully welded for extra durability
20,000 BTU per burner
One cast iron burner every 6” grate width
Cast iron grill grates are reversible and height adjustable
4”-5” adjustable legs
Separate gas valves for each burner with standing pilot ignition system
Removable stainless steel drip tray for easy cleaning
3/4” rear NPT gas inlet
ETL Listed and ETL Sanitation

Adcraft BDCTC-24 Specification

24" heavy duty radiant gas countertop charbroiler is constructed of stainless steel front and sides that are fully welded and are able to withstand the toughest of kitchen environments.Each cast iron burner puts out 20,000 BTU/hour with one cast iron burner for every 6" of grate width.Units come standard with 4-5" adjustable legs, separate gas valves for each burner with standing pilot lights and a 3/4" rear NPT gas inlet.Set up for use with Natural Gas (NG) and is field convertible to Liquid Propane (LPG). 1 year warranty on parts and labor. ETL Listed and ETL Sanitation.

From The Manufacturer

Black Diamond Charbroiler, countertop, 24" W x 30" D, radiant heat, (4) manual cast iron burner controls, cast iron reversible & height adjustable grates, (1) removable stainless steel drip tray, stainless steel front and sides, 4"-5" adjustable legs, 80,000 BTU, 3/4" rear NPT, cETLus, ETL-Sanitation

Manufacturer	Black Diamond
Model Number	BDCTC-24
Weight	243 lbs
Width	24″
Depth	30″
Height	16.25″
Installation Type	countertop
Power Type	gas
Number of Burners	4 burners
Heating Source	radiant
Control Type	manual controls
Exterior Finish	stainless steel front & sides
Certifications	cETLus, ETL-Sanitation
Total BTU	80,000
