Comstock-Castle ELB60 60" Countertop Gas Lava Rock Charbroiler w/ (5) Burners, 150.000 BTU

Comstock-Castle ELB60 Standart Features

Construction

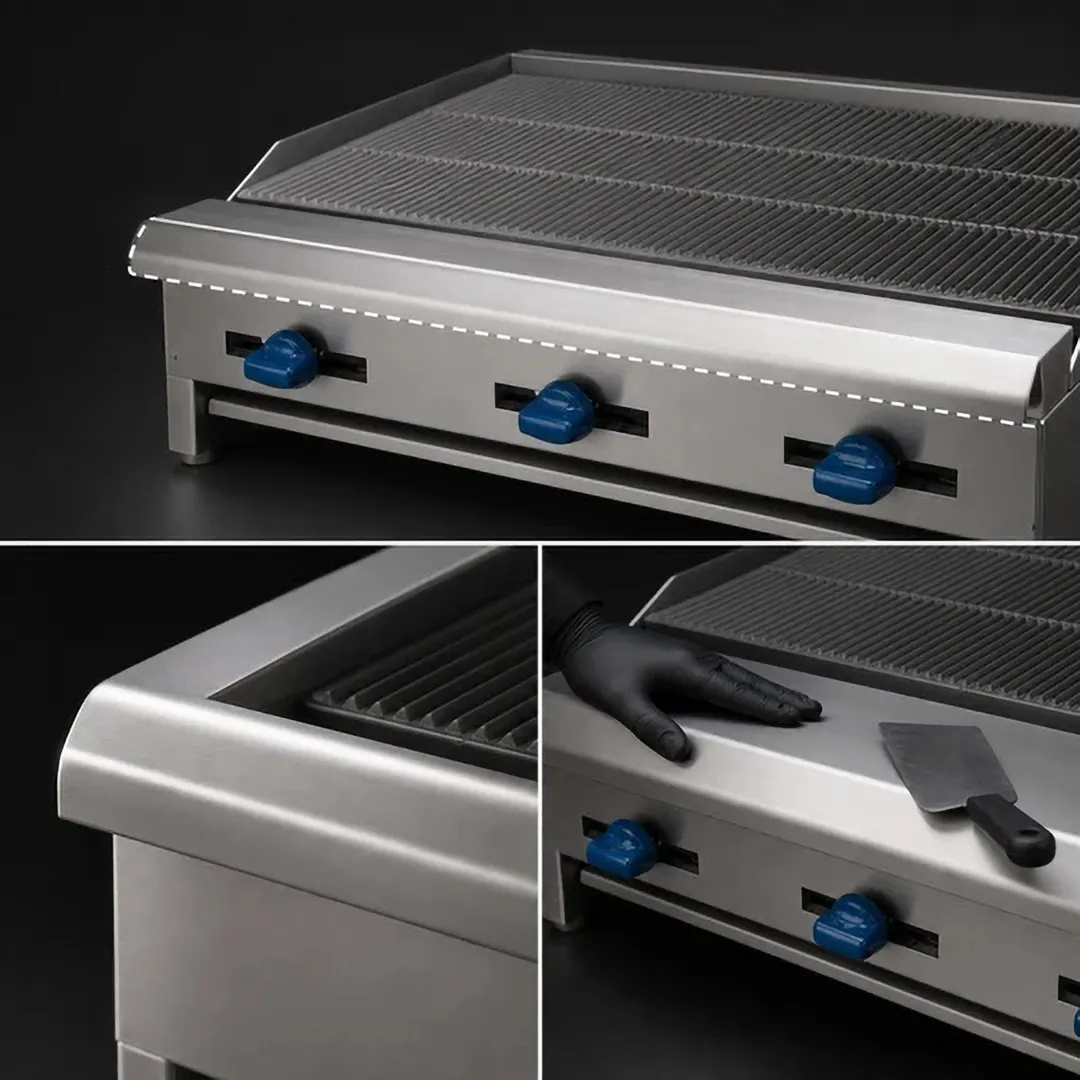

Easy cleaning, stainless steel finish. 3˝ wide stainless steel bull nose landing across the front is a functional work area for service plates and work utensils as well as control protection. Heavy guage welded frame construction. Installation clearances for non-combustible surfaces are 0˝ on the sides and 4˝ in the rear, combustible surfaces are 4˝ on the sides and 5˝ in the rear

Top Grades

Cast iron top grate sections measure 20˝ deep, designed with cast-in grease trough on each blade to allow grease run off into the front cold zone grease trough and reduces flare up. Each section is reversible for sloped or level grilling. Stainless steel splash guards on 3 sides graduating up to 3˝ high. Grease drain slot is 3.5˝ x 1˝ and feeds into a large, removable grease drawer

Controls

Equipped with brass gas valves and automatic standing pilots. Pressure regulators are set at the factory for the gas specified. Optimal pressures are 4˝ WC for natural gas and 10˝ WC for propane. Manifold size is 3/4˝ NPT. All controls are tested and confirmed in good working order. Calibration and adjustments are the responsibility of the installer

Burners

12˝ incremental char-broilers feature 30,000 BTU burners, one for each 12˝ increment. 18˝, 30˝ and 42˝ models feature 2, 4 and 6 burners respectively, each rated at 18,000 BTU

Match-Up

E Series char-broilers are designed to match up with E griddles.

Accessories & Options

Sturdy 2½˝ or 4˝ heavy duty legs with adjustable feet, safety pilot controls, gas hoses, grill scrapers, spatulas, cleaning supplies, carrying handles, knob protectors and matching equipment stands

Comstock-Castle ELB60 Specification

Char-Broiler, countertop, gas, 27-1/2" deep frame, 60" wide x 20" deep grill area, cast iron grates, sloped or flat, cast iron bottom grates, (5) manual control, stainless steel splash guard, stainless steel frame, 150,000 total BTU, NSF, ETL
