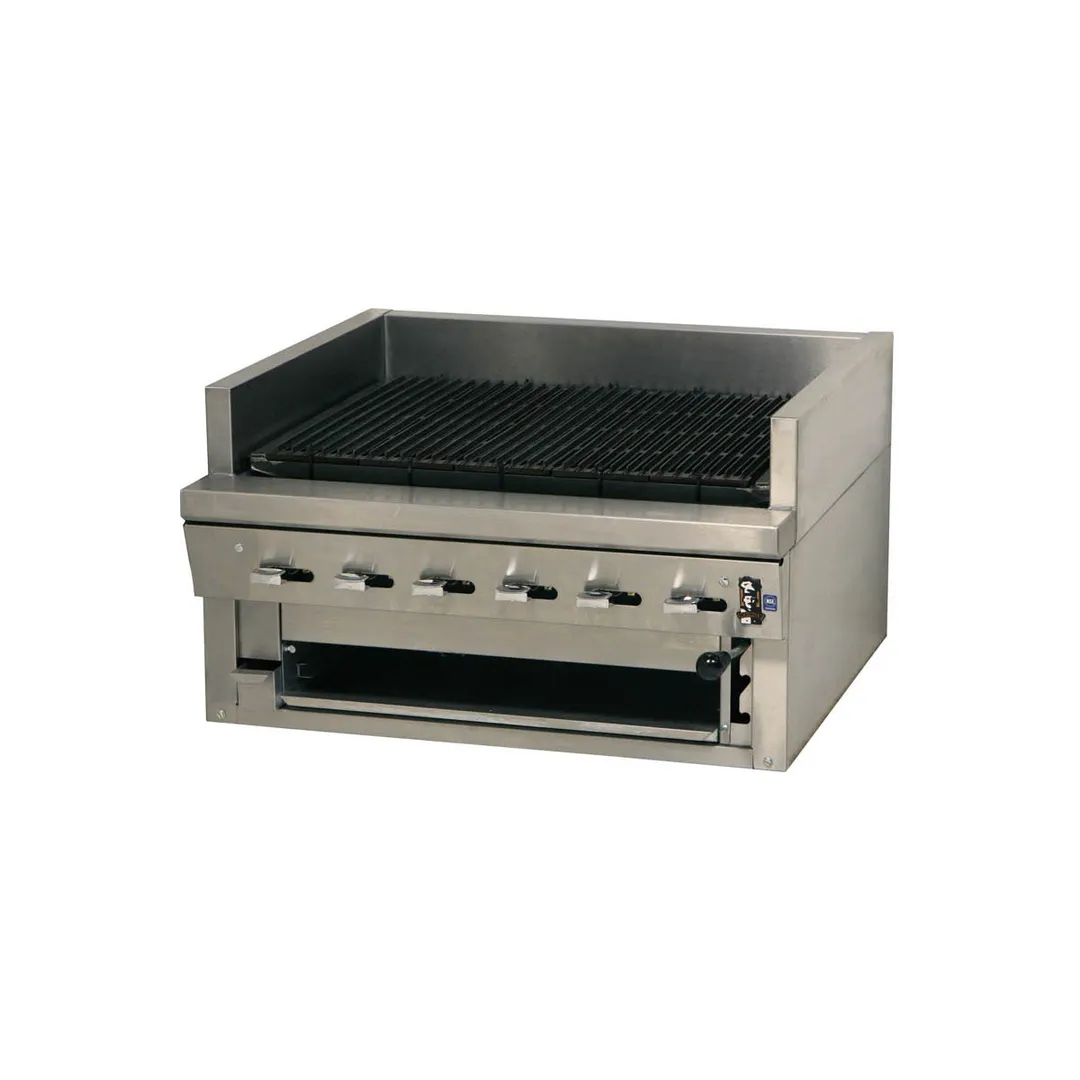

Montague Company UFSC-24C Ceramic Style Underfired Broiler Range-Free Standing Countertop

Overview

The UFSC-24C, Legend™ Char-Broiler, 24" free standing, countertop, ceramic briquettes, adjustable 3-position cast iron Ultra-Flow reversible top grate, stainless steel front, top trim & splash shields, 3/4" rear gas, with pressure regulator, 90,000 BTU , CSA Star, CSA Flame.

Burner/Ceramic Bed Features

45,000 BTU/hr cast iron ‘H’ burners
Stainless steel drip shields;
Individual manual gas valves for zoned heat control
Standing pilot for automatic ignition.
Quick heat absorbing ceramic briquettes reduces flare-ups
Full width debris screen under burners and above:
Full width removable trip tray

Montague Company UFSC-24C Standard Features

Satin finish stainless steel front & top trim with 4-1/2” (114mm) deep front rail
5-9/16” (141mm) high stainless steel side and rear splash
Other surfaces painted black with electrolytic zinc undercoating
Full width front grease trough for easy transfer
Removable large capacity grease container
3/4” NPT rear gas manifold connection

Montague Company UFSC-24C Specifications

Description : Ceramic Style Underfired Broiler Range, Free Standing Countertop
Overall Width : 24” (610mm)
Grates : 3
Cooking Area : 18” x 24” (457 x 610mm)
Burners : 2
Power BTU/hr (kW) : 90,000 (26.4)
Shipping Weight : 372 lbs (169 kg)
Cube (Crated) ft3/m : 14/.4
Other Details : See spec. sheet

From The Manufacturer

Legend™ Char-Broiler, 24" free standing, countertop, ceramic briquettes, adjustable 3-position cast iron Ultra-Flow reversible top grate, stainless steel front, top trim & splash shields, 3/4" rear gas, with pressure regulator, 90,000 BTU NSF, CSA Star, CSA Flame

Manufacturer	Montague Company
Model Number	UFSC-24C
Weight	470 lbs
Width	24″
Depth	32.88″
Height	15.25″
Installation Type	countertop
Power Type	gas
Number of Burners	2 burners
Heating Source	ceramic briquettes
Control Type	manual controls
Exterior Finish	stainless steel front
Certifications	NSF, CSA Star, CSA Flame
Total BTU	90,000
Cooking Surface Depth	24"
