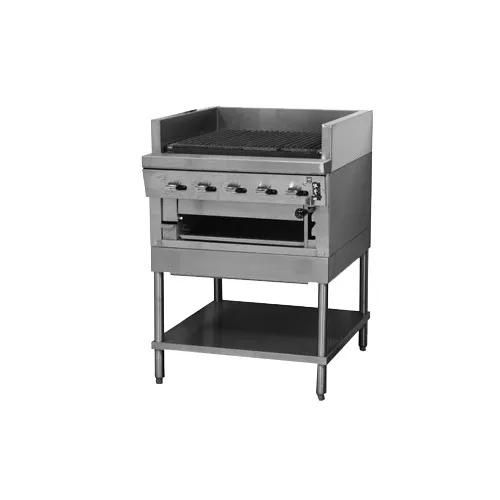

Montague Company UFSM-72C 72" Floor Gas Ceramic Briquettes Charbroiler w/ Stand, 270.000 BTU

Overview

The UFSM-72C, Legend™ Char-Broiler, 72" free-standing modular, ceramic briquettes, adjustable 3-position cast iron Ultra-Flow reversible top grate, stainless steel front, top trim & splash shields, 3/4" rear gas, with pressure regulator, 25" stainless steel legs with undershelf, 270,000 BTU , CSA Star, CSA Flame.

Burner/Ceramic Bed Features

• 45,000 BTU/hr cast iron ‘H’ burners
• Stainless steel drip shields;
• Individual manual gas valves for zoned heat control
• Standing pilot for automatic ignition.
• Quick heat absorbing ceramic briquettes reduces flare-ups
• Full width debris screen under burners and above:
• Full width removable trip tray

Montague Company UFSM-72C Standard Features

• Satin finish stainless steel front & top trim with 4-1/2” (114mm) deep front rail
• 5-9/16” (141mm) high stainless steel side and rear splash
• Other surfaces painted black with electrolytic zinc undercoating
• Full width front grease trough for easy transfer
• Removable large capacity grease container
• 3/4” NPT rear gas manifold connection
• Stainless steel stand with tubular legs & adjustable bullet feet

Montague Company UFSM-72C Specifications

• Description : Ceramic Style Underfired Broiler Range, Free Standing Modular Base
• Overall Width : 72” (1829mm)
• Grates : 10
• Cooking Area : 60” x 24” (1524 x 610mm)
• Burners : 6
• Power BTU/hr (kW) : 270,000 (79.1)
• Shipping Weight : 958 lbs (434 kg)
• Cube (Crated) ft3/m : 41/1.2
• Other Details : See spec. sheet
