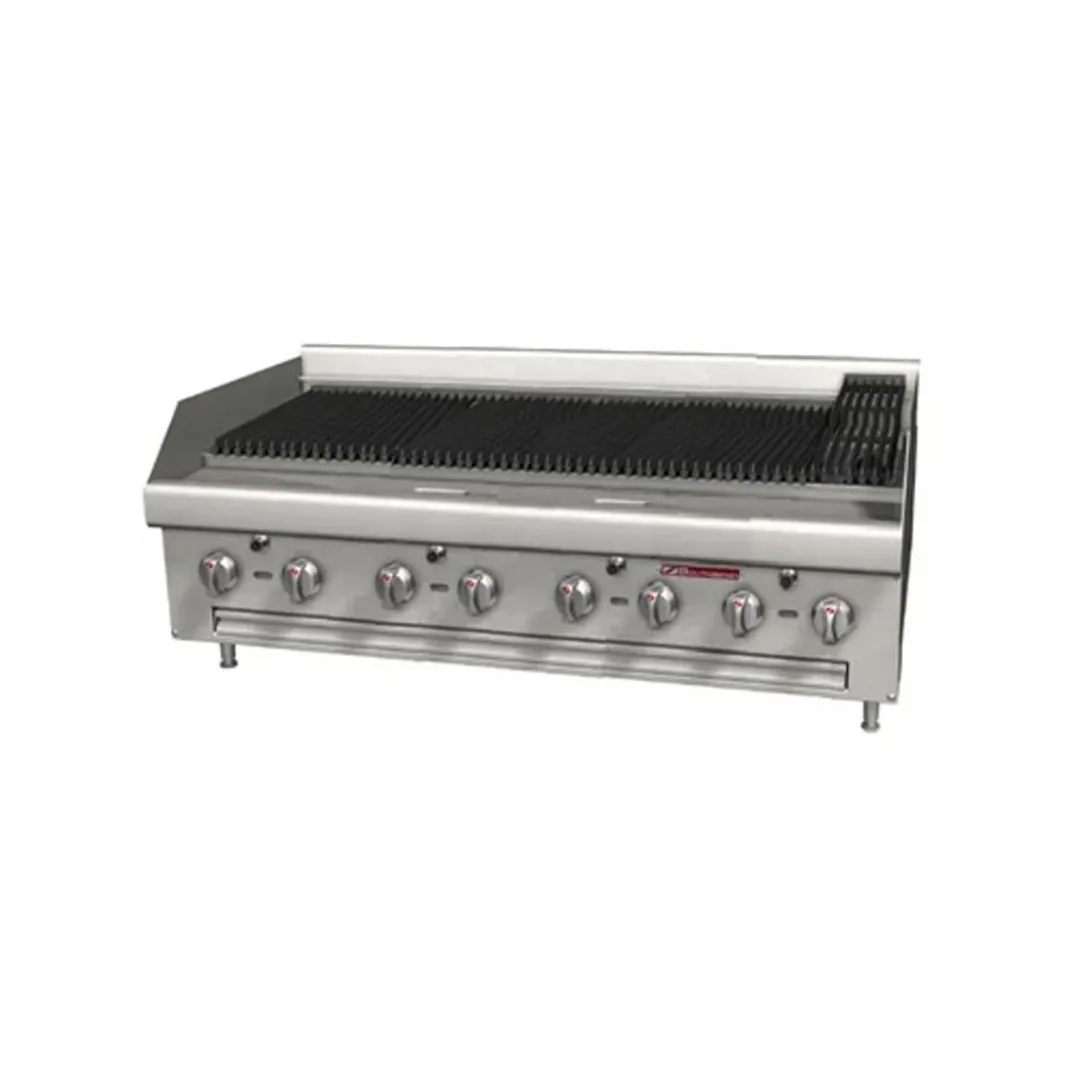

The Southbend HDC-48 48" Charbroiler
Why Use Southbend Restaurant Charbroiler?
The Southbend Heavy-Duty Counterline products are designed for medium to heavy-duty applications. Southbend's counterline offers unsurpassed performance, combining proven control systems with Southbend quality and durability.
Southbend HDC-48 Features
- HDC-48: 48" Charbroiler - Heavy Duty Counterline - Gas - 160,000 BTU
- Available in 12”, 18”, 24”, 30”, 36”, 48”, and 60” widths
- 20,000 BTU (NAT or LP) stainless steel burner per 6”
- Stainless steel front and sides are standard, rear and bottom panels are aluminized steel.
- Reinforced, insulated double wall sides
- Cast iron radiants
- 3/4” rear gas connection and pressure regulator
- 5” high rear and side splash guards
- Field convertible from radiant to briquette cooking
- Two-position, two sided cooking grids
- 4” Spatula width grease trough
- Wide or narrow branding grates
- Stainless steel, full width crumb tray
- One year limited Parts and Labor Warranty
Southbend HDC-48 Specification
- Exterior Finish: Front and sides are constructed of #3 polished 430 and 304 stainless steel. Bottom and rear are aluminized steel. Sides are reinforced and fully insulated. 5” rear and side splash.
- Charbroiler: 12”, 18”, 24”, 30”, 36”, 48” and 60” (available in radiant or lava). Stainless steel, 20,000 BTU (NAT or LP) burners every 6”. Removable two-sided cast-iron grates. Field convertible from radiant to briquette.
- Gas Heat Control System: Each straight burner is controlled by a gas valve for independent control of flame. One standing pilot services each burner. A 3/4” rear gas connection is standard.
- Legs: Stainless steel 4” adjustable legs.
WARRANTY & SERVICE REQUEST
“Do you need service? Is your product under warranty? Please fill out the form at the link below.”
Warranty & Service Request FormFrom The Manufacturer
Charbroiler, gas, countertop, 48", cast iron radiants, stainless steel burners, two-position, two sided cooking grid, removable crumb tray, stainless steel front, sides & 4" adjustable legs, 160,000 BTU, CSA Star, CSA Flame, cCSAus, NSF
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
