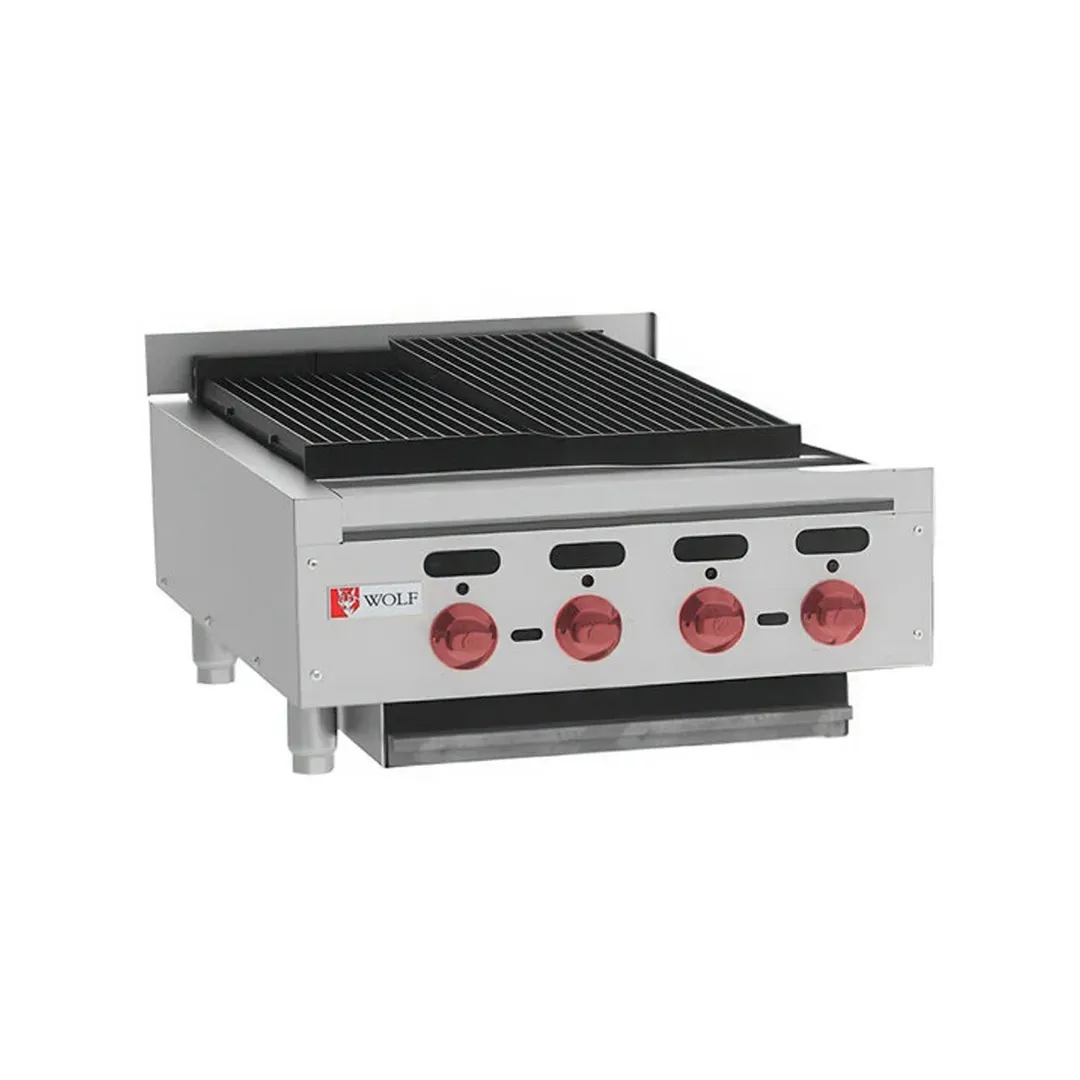

Wolf ACB SERIES HEAVY DUTY COUNTER MODEL GAS CHARBROILER
SPECIFICATIONS
Low profile, high volume gas charbroiler, Wolf ACB Series. All welded chassis with stainless steel front, sides, top trim and grease trough. Heavy cast iron charradiants. 5 1⁄4" wide cast iron diamond grates. Supercharger burner dividers. One 17,000 BTU/hr. burner for each broiling grate. Underburner deflector system reflects heat upwards. Standing pilot ignition system. One high range infinite heat control valve for each burner. 4" adjustable legs. 3⁄4" rear gas connection and gas pressure regulator.
Exterior Dimensions:
- ACB25: 25 1⁄8" wide x 31" deep x 12" working height
- ACB36: 36" wide x 31" deep x 12" working height
- ACB47: 46 7⁄8" wide x 31" deep x 12" working height
- ACB60: 46 7⁄8" wide x 31" deep x 12" working height
- ACB72: 72 1⁄2" wide x 31" deep x 12" working height
STANDARD FEATURES
- All welded chassis with stainless steel sides, control panel, top trim, backsplash and grease trough
- Heavy duty cast iron char-radiants
- 5 1⁄4" wide cast iron diamond grates
- One 17,000 BTU/hr burner for each broiler grate
- Easy lighting standing pilot ignition system
- One high range infinite heat control valve for each burner. Valve adjustment marks engraved into front panel for easy set-up.
- Heat deflector tray system reflects heat upwards creating a “Cool Zone” in the grease drawer and facilitates easier cleaning.
- 4" adjustable legs
- 3⁄4" rear gas connection and gas pressure regulator
- Supercharger burner dividers minimize heat transfer to enhance multi-zone cooking capability
- One year limited parts and labor warranty
From The Manufacturer
Achiever Charbroiler, 25-1/8" W, countertop, (4) cast iron 17,000 BTU burners with standing pilots & cast iron radiants, heat deflector tray, supercharger burner dividers, high range infinite heat control valves, fully welded chassis, stainless steel front, sides, top trim, backsplash & grease trough, cast iron top grates, 4" adjustable legs, 68,000 BTU, CSA, NSF
