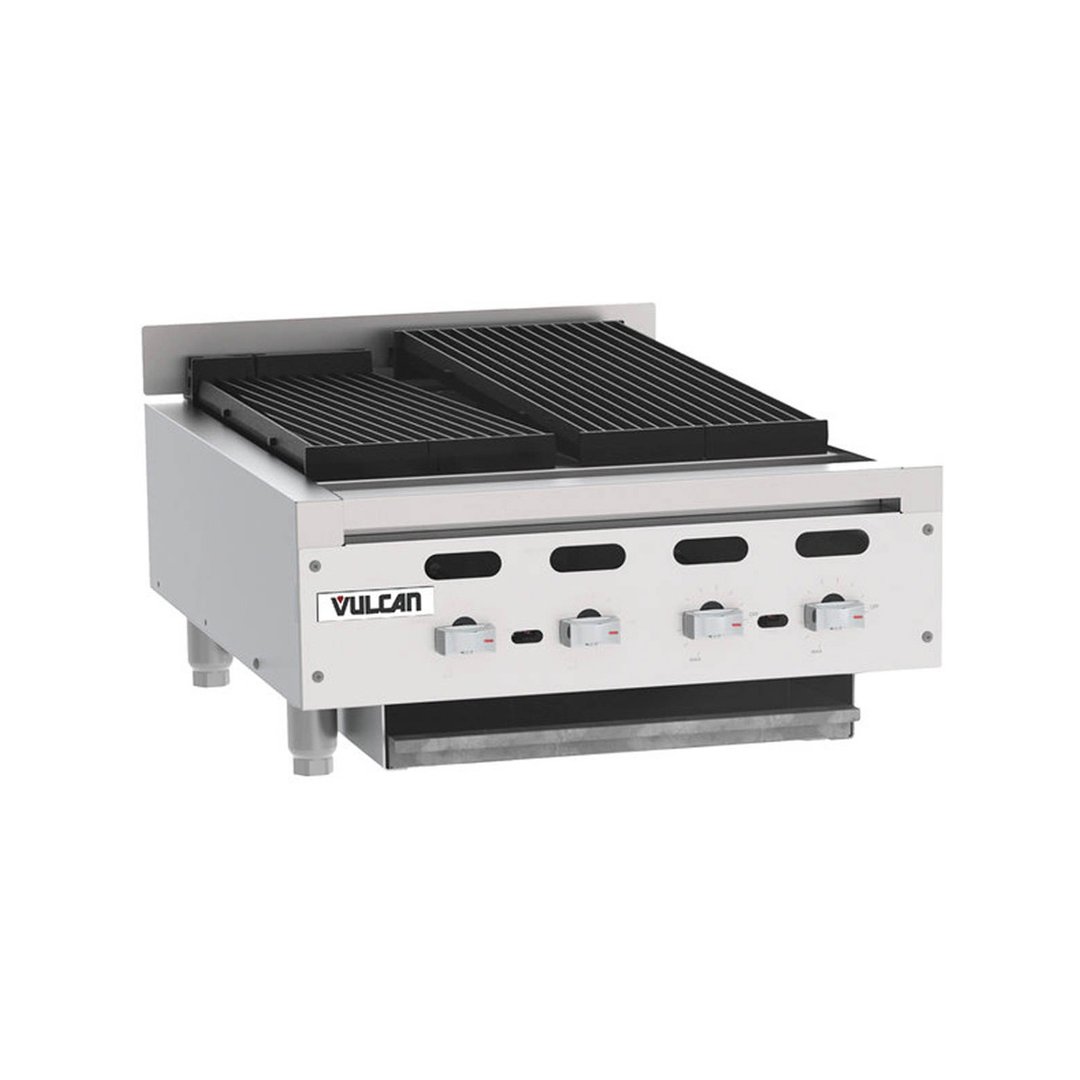

Vulcan VACB SERIES HEAVY DUTY COUNTER MODEL GAS CHARBROILER
SPECIFICATIONS
Low profile, high volume gas charbroiler, Vulcan-Hart Models. All welded chassis with stainless steel front, sides, top trim and grease trough. Heavy cast iron charradiants. 5 1⁄4" wide cast iron diamond grates. Supercharger burner dividers. One 17,000 BTU/hr. burner for each broiling grate. Underburner deflector system reflects heat upwards. Standing pilot ignition system. One high range infinite heat control valve for each burner. 4" adjustable legs. 3⁄4" rear gas connection and gas pressure regulator.
Exterior Dimensions:
- VACB25: 25 1⁄8" wide x 31" deep x 12" working height
- VACB36: 36" wide x 31" deep x 12" working height
- VACB47: 46 7⁄8" wide x 31" deep x 12" working height
- VACB60: 62 1⁄8" wide x 31" deep x 12" working height
- VACB72: 72 1⁄2" wide x 31" deep x 12" working height
STANDARD FEATURES
- All welded chassis with stainless steel sides, control panel, top trim, backsplash and grease trough
- Heavy duty cast iron char-radiants
- 5 1⁄4" wide cast iron diamond grates
- One 17,000 BTU/hr burner for each broiler grate
- Easy lighting standing pilot ignition system
- One high range infinite heat control valve for each burner. Valve adjustment marks engraved into front panel for easy set-up.
- Heat deflector tray system reflects heat upwards creating a “Cool Zone” in the grease drawer and facilitates easier cleaning.
- 4" adjustable legs
- 3⁄4" rear gas connection and gas pressure regulator
- Supercharger burner dividers minimize heat transfer to enhance multi-zone cooking capability
- One year limited parts and labor warranty
ACCESSORIES
- 6" legs.
- 10 5⁄8" deep plate rail.
- Condiment rail.
- Cutting board.
- 6" back and side splash kit.
- 12 3⁄4" overshelf.
- Straight and waffle pattern cast iron grates.
- Welded steel round rod grate.
- Fajita plate warmer
- 10 1⁄2" wide griddle plate inserts
- Stainless steel stand with undershelf and casters
From The Manufacturer
Achiever Charbroiler, countertop, 25-1/8", (4) 17,000 BTU cast iron burners, infinite heat control valves, fully welded chassis, (1) drip tray, stainless steel front, sides & top trim, backsplash & grease trough, 4" adjustable legs, 68,000 BTU, CSA, NSF
