Dormont 16100BPCF2S60 Gas Connector Hose Kit / Assembly
Why use Dormont 16100BPCF2S60 Gas Connector Hose Kit / Assembly?
Double Swivel MAX/Safety Quik Quick-Disconnect Valve Assemblies combine flexible movement and one-handed Quick-Disconnect functionality with a unique safety shut-off. By preventing users from accidentally turning on the gas while the appliance is not connected to the supply line, the Double Swivel MAX/Safety Quik Assemblies protect your employees and your business. 360° movement of Swivel MAX at both ends of the assemblies allows appliances to safely be positioned closer to the wall – increasing your kitchen aisle space and prolonging the life of your connectors.
Dormont 16100BPCF2S60 Standard Features
- Aluminum body, plated steel fitting
- 360° rotational end fitting
- Flat face push-to-connect; brass body
- Full port brass ball valve
- Shuts off gas flow within a temperature range of 250°F - 300°F (121°C - 149°C)
- Annealed, 304 stainless steel
- Multi-strand, stainless steel wire
- Blue antimicrobial PVC, melts at 350°F (177°C),coating will not hold a flame
- Carbon steel; zinc trivalent chromate
- 360° rotational end fitting at both ends
Dormont 16100BPCF2S60 Specifications
- Length : 60"
- Weight Lbs: 8.31
From The Manufacturer

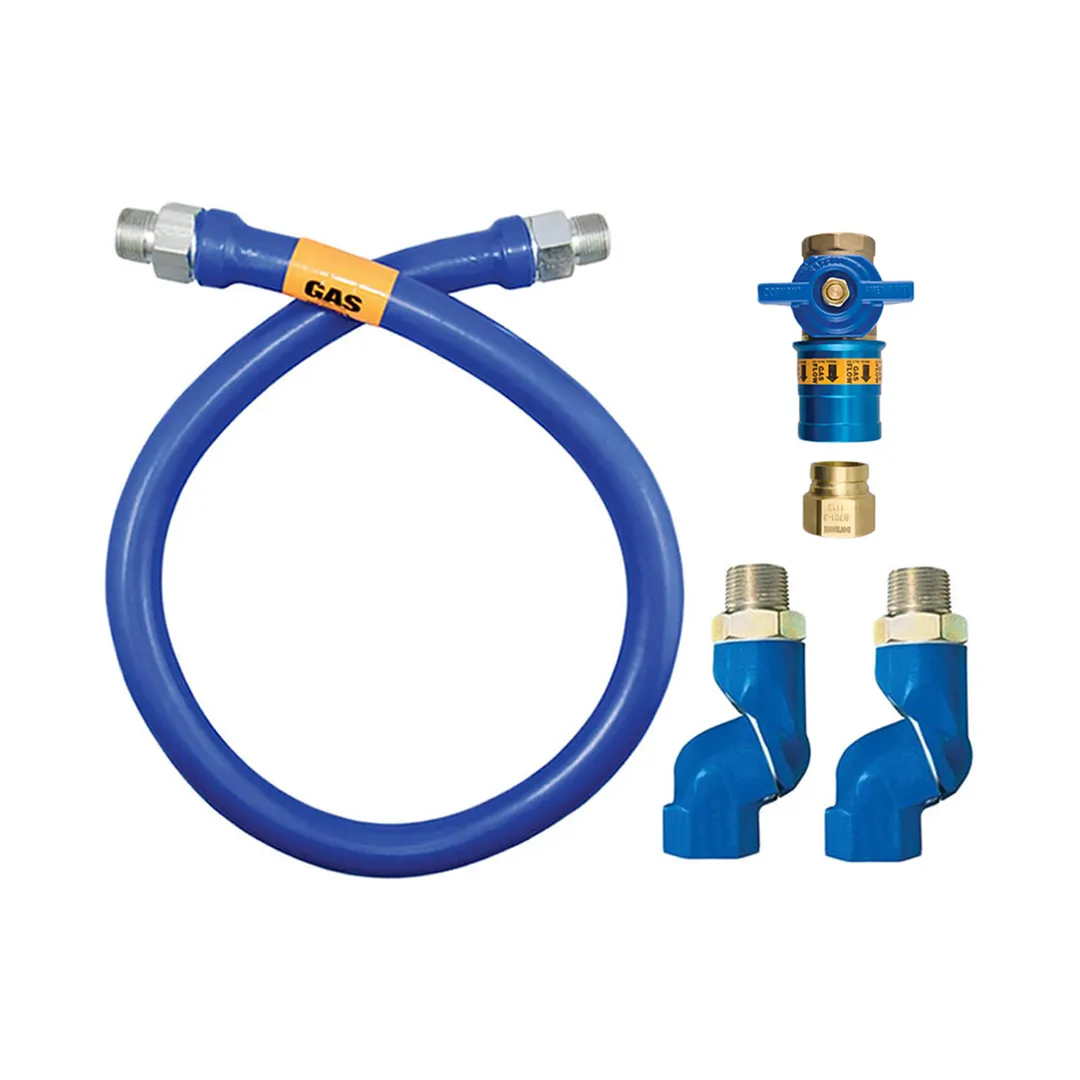

Dormont Blue Hose™ Moveable Gas Connector Hose Assembly, 1" inside dia., 60" long, covered with stainless steel braid, coated with blue antimicrobial PVC, 1 Safety Quik® QDV, 2 Swivel MAX®, 261,000 BTU/hr minimum flow capacity, limited lifetime warranty
Images show the product series. Color, configuration, included items and accessories vary by model. See the spec sheet for this model.
