Dormont 16100BPQSR36BXPS SnapFast 36" Gas Connector Kit w/ One Swivel and Safety Set, 1" Diameter
Description
Single Swivel MAX®/SnapFast® Quick-Disconnect Assemblies feature flexible movement and the one-handed, quick-disconnect fitting with a unique thermal shut-off design that automatically shuts off the gas when the internal temperature exceeds 350°F (177°C). The 360° movement of Swivel MAX adds extra protection to the life of the connector and increases kitchen aisle space by allowing the appliance to be closer to the wall.
Swivel Max®
- Multi-plane Fitting ................. Aluminum body, plated steel fitting
- Movement ............................. 360° rotational end fitting
SnapFast® One-Handed Quick-disconnect
- Quick-Disconnect.............................Brass body, aluminum collar
- Thermal Shut-off..............................Shuts off gas when internal temperatures exceed 350°F (177°C)
The Dormont Blue Hose®
- Tubing .......................................... Annealed, 304 stainless steel
- Braiding ......................................... Multi-strand, stainless steel wire
- Coating .......................................... Blue antimicrobial PVC, melts at 350°F (177°C), coating will not hold a flame
- End Fittings ..................................... Carbon steel; zinc trivalent chromate
- Stress Guard® ................................. 360° rotational end fitting at both ends
From The Manufacturer

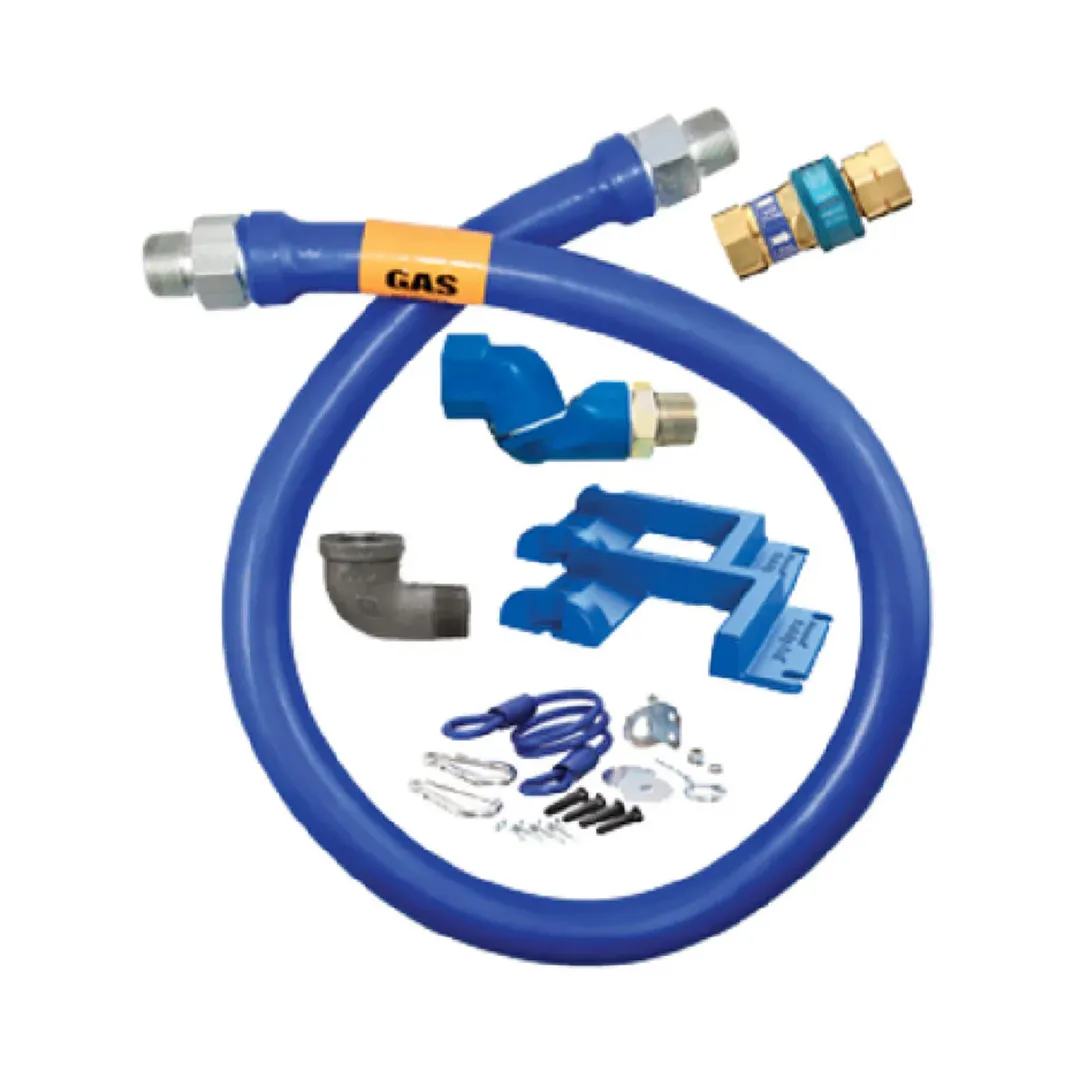

Dormont Blue Hose™ Moveable Gas Connector Hose Assembly, 1" inside dia., 36" long, covered with stainless steel braid, coated with blue antimicrobial PVC, (1) SnapFast® QD, (1) Swivel MAX®, (1) pair Safety Set® with adhesive foam tape and hardware mounting options, limited lifetime warranty
Images show the product series. Color, configuration, included items and accessories vary by model. See the spec sheet for this model.
