Dormont 16100KITCF2S72 Gas Connector Hose Kit / Assembly
Why use Dormont 16100KITCF2S72 Gas Connector Hose Kit / Assembly?
Double Swivel MAX/Safety Quik Quick-Disconnect Valve Assemblies combine flexible movement and one-handed Quick-Disconnect functionality with a unique safety shut-off. By preventing users from accidentally turning on the gas while the appliance is not connected to the supply line, the Double Swivel MAX/Safety Quik Assemblies protect your employees and your business. 360° movement of Swivel MAX at both ends of the assemblies allows appliances to safely be positioned closer to the wall – increasing your kitchen aisle space and prolonging the life of your connectors.
Dormont 16100KITCF2S72 Standard Features
- Swivel Max; Aluminum body, plated steel fitting
- Swivel Max; 360° rotational end fitting
- Safety Quik® Quick-Disconnect Valve; Flat face, push-to-connect; brass body
- Safety Quik® Quick-Disconnect Valve; Full port brass ball valve
- Safety Quik® Quick-Disconnect Valve; Shuts off gas flow within a temperature range of 250ºF - 300ºF (121ºC - 149ºC)
- PVC coated, steel multi-strand cable and mounting hardware
- Full port, brass body
- Malleable iron, 1 included
- Annealed, 304 stainless steel
- Multi-strand, stainless steel wire
- Blue antimicrobial PVC, melts at 350°F (177°C),coating will not hold a flame
- Carbon steel; zinc trivalent chromate
- 360° rotational end fitting at both ends
Dormont 16100KITCF2S72 Specifications
- Length : 72"
- Weight Lbs: 10.53
From The Manufacturer

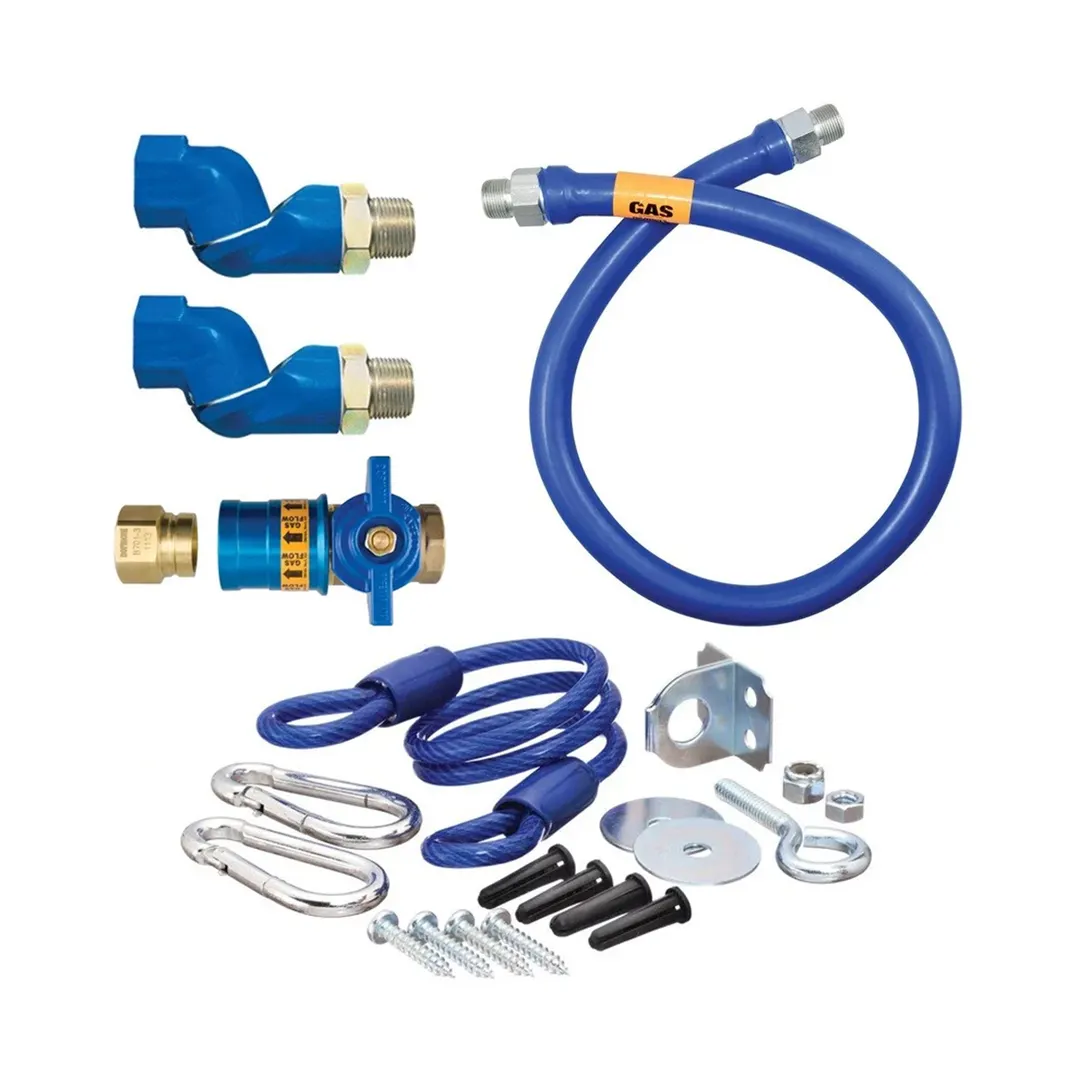

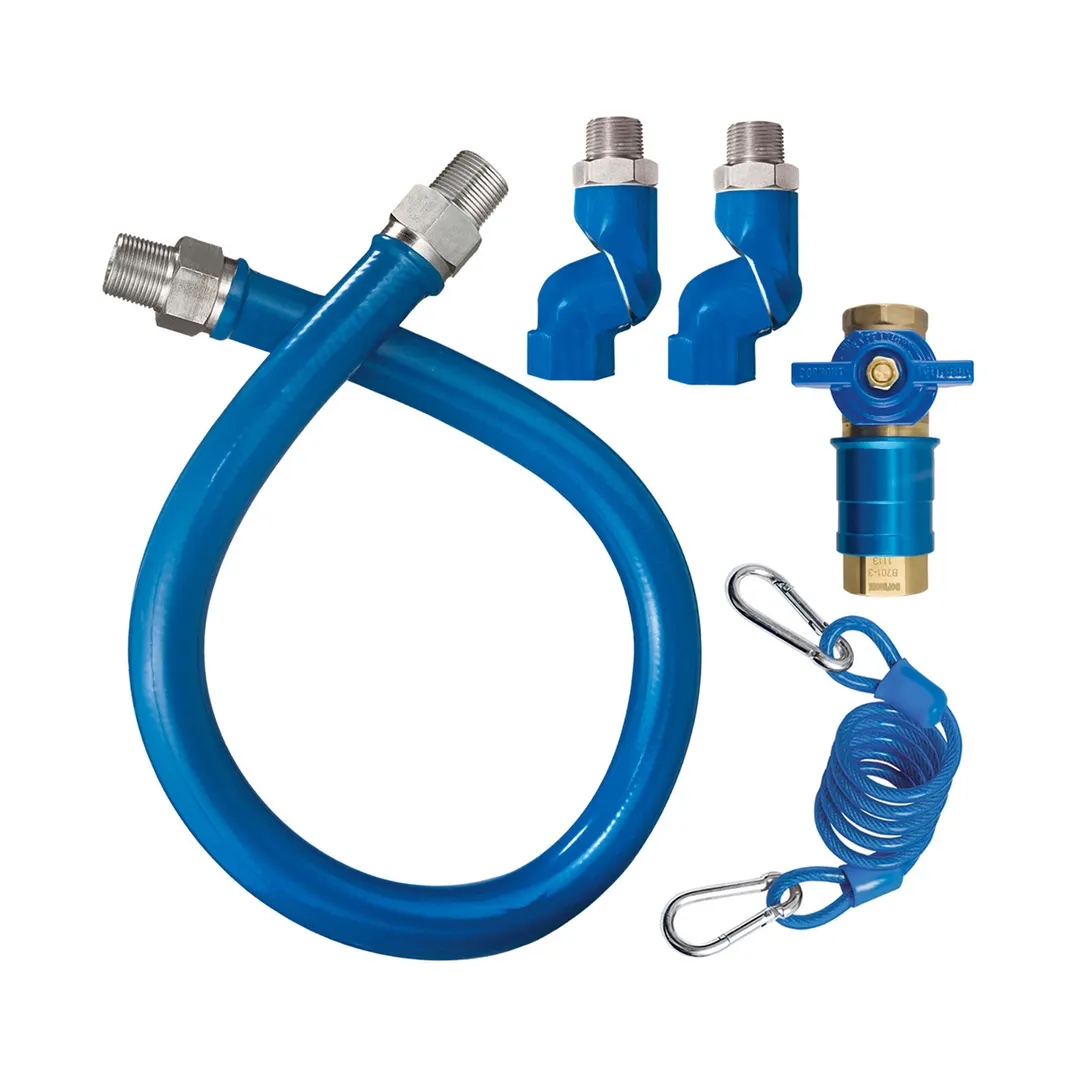

Dormont Blue Hose™ Moveable Gas Connector Kit, 1" inside dia., 72" long, covered with stainless steel braid, coated with blue antimicrobial PVC, (1) Safety Quik® QDV, (2) Swivel MAX®, coiled restraining cable with hardware, 247,000 BTU/hr minimum flow capacity, limited lifetime warranty
