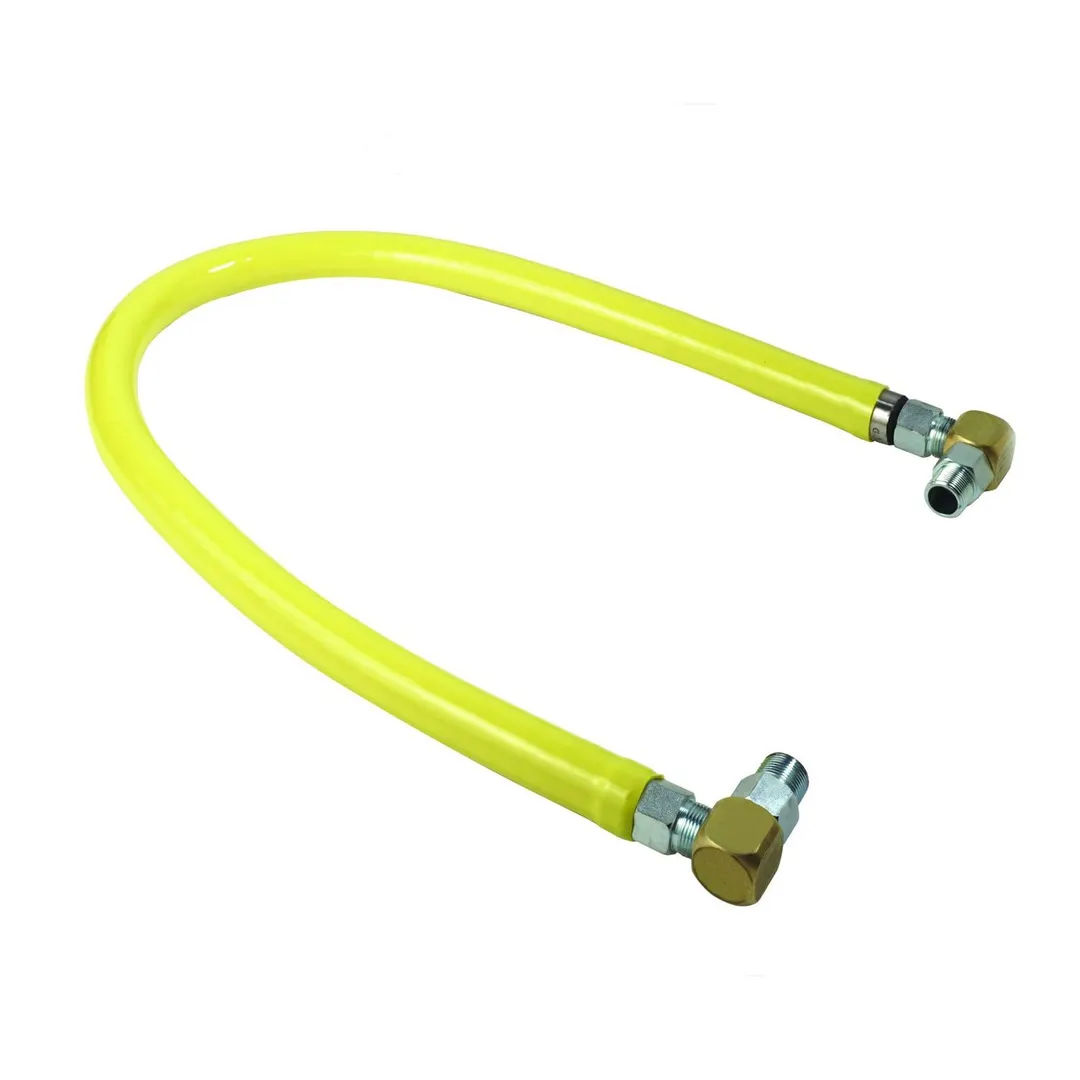

T&S Brass HG-2D-72S Gas Hose
General Info
72" coated gas appliance connector hose with 3/4" NPT male swivel connections.
T&S Brass HG-2D-72S Features
- 72” coated gas appliance connector
- 3/4" NPT male freespin inlet
- 3/4" NPT male freespin outlet
- (2) 90 elbows included
- 360 rotatable hex nut rotates completely and freely
- Optimum torsional relief improves safety, increases connector life
- Provides efficient, full gas flow
- Material: Extruded coated stainless steel braids
T&S Brass HG-2D-72S Specifications
- Gas Pressure : 1/2 psi max
- Temperature : 350 F max
- Capacity : 174,000 BTU / hr min
- Other Details : See spec. sheet
From The Manufacturer
Safe-T-Link Gas Connector Hose, 3/4" male SwiveLink fittings, 72"L coated hose, 360° rotatable hex nut, with (2) 90° elbows
