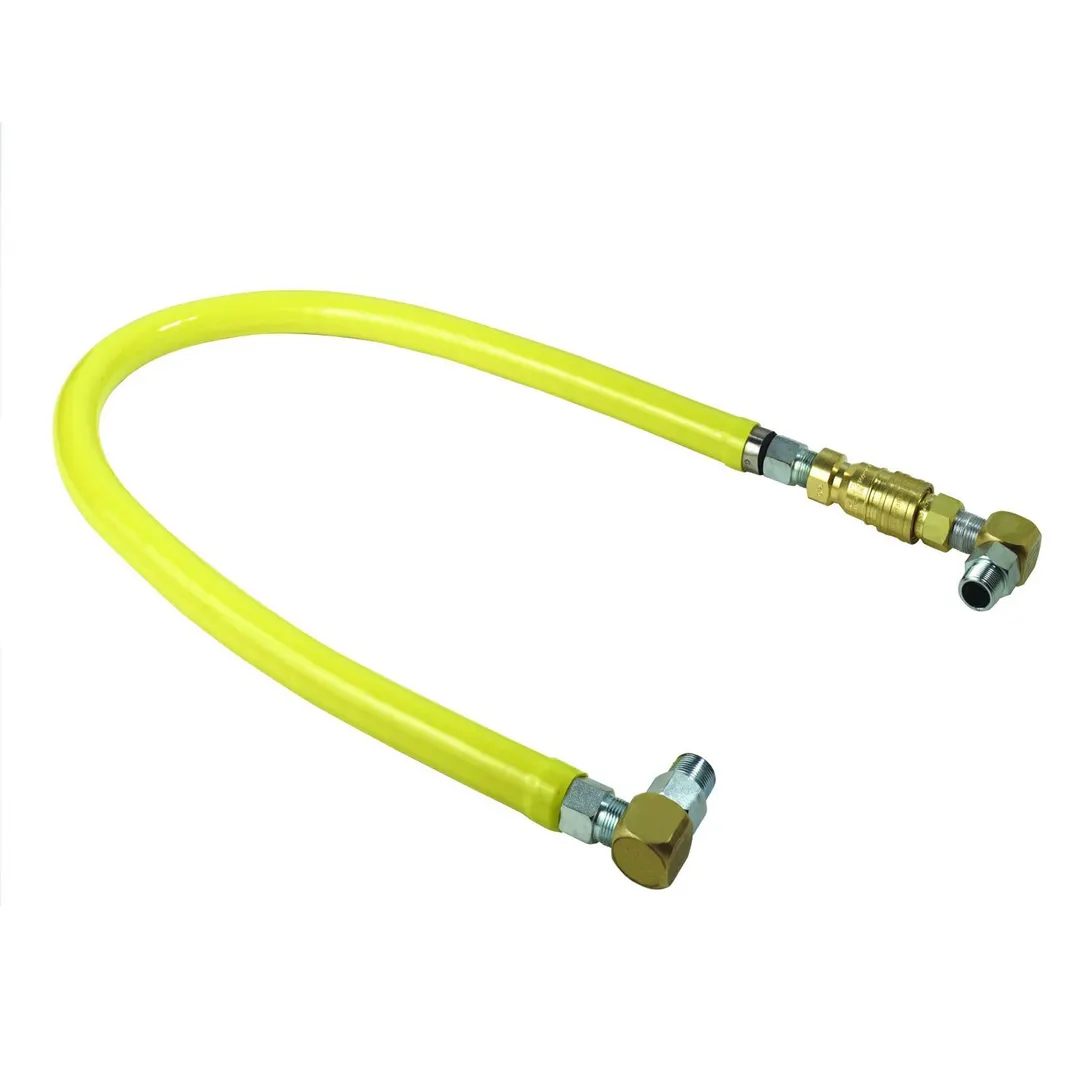

T&S Brass HG-4C-48SHP Gas Connector Hose
General Info
48" coated gas appliance connector hose with 1/2" NPT male connections, 2-piece quick disconnect, (2) swivel-links fittings, 90deg elbow and street elbow.
T&S Brass HG-4C-48SHP Features
- 48” coated gas appliance connector
- 1/2" NPT male freespin inlet
- 1/2" NPT male freespin outlet
- 1/2" NPT male quick-disconnect
- Quick-disconnect socket acts as a shut-off valve when the plug and socket are disconnected
- (2) 1/2" NPT swivel-links fittings
- (1) 1/2" NPT 90 elbow
- (1) 1/2" NPT 90 street elbow
- 360 rotatable hex nut rotates completely and freely
- Optimum torsional relief improves safety, increases connector life
- Provides efficient, full gas flow
- Material: Extruded coated stainless steel braids
T&S Brass HG-4C-48SHP Specifications
- Gas Pressure : 1/2 psi max
- Temperature : 350 F max w/ Fusible Link Thermal Shut-off
- Capacity : 70,000 BTU / hr min
- Other Details : See spec. sheet
From The Manufacturer
Safe-T-Link Gas Appliance Connector, 48" long coated hose, with swivel & quick-disconnect, includes (2) elbows, 1/2"NPT, extruded stainless steel braids, NSF, cCSAus
