T&S Brass HG-4D-24SK Gas Connector Hose
General Info
24" coated gas appliance connector hose with 3/4" NPT male connections, swivel fittings and installation kit.
T&S Brass HG-4D-24SK Features
- 24” coated gas appliance connector
- (2) 3/4" NPT male SwiveLink fittings
- Installation kit
- 90 elbows included
- 360 rotatable hex nut rotates completely and freely
- Optimum torsional relief improves safety, increases connector life
- No lock-up during use with SwiveLink fittings
- Quick-disconnect socket acts as shut-off valve when the plug and socket are disconnected
- Material: Extruded coated stainless steel braids
T&S Brass HG-4D-24SK Specifications
- Pressure : 1/2 psi max
- Temperature : 350 F max w/ Fusible Link Thermal Shut-off
- Capacity : 235,000 BTU / hr min
- Other Details : See spec. sheet
From The Manufacturer

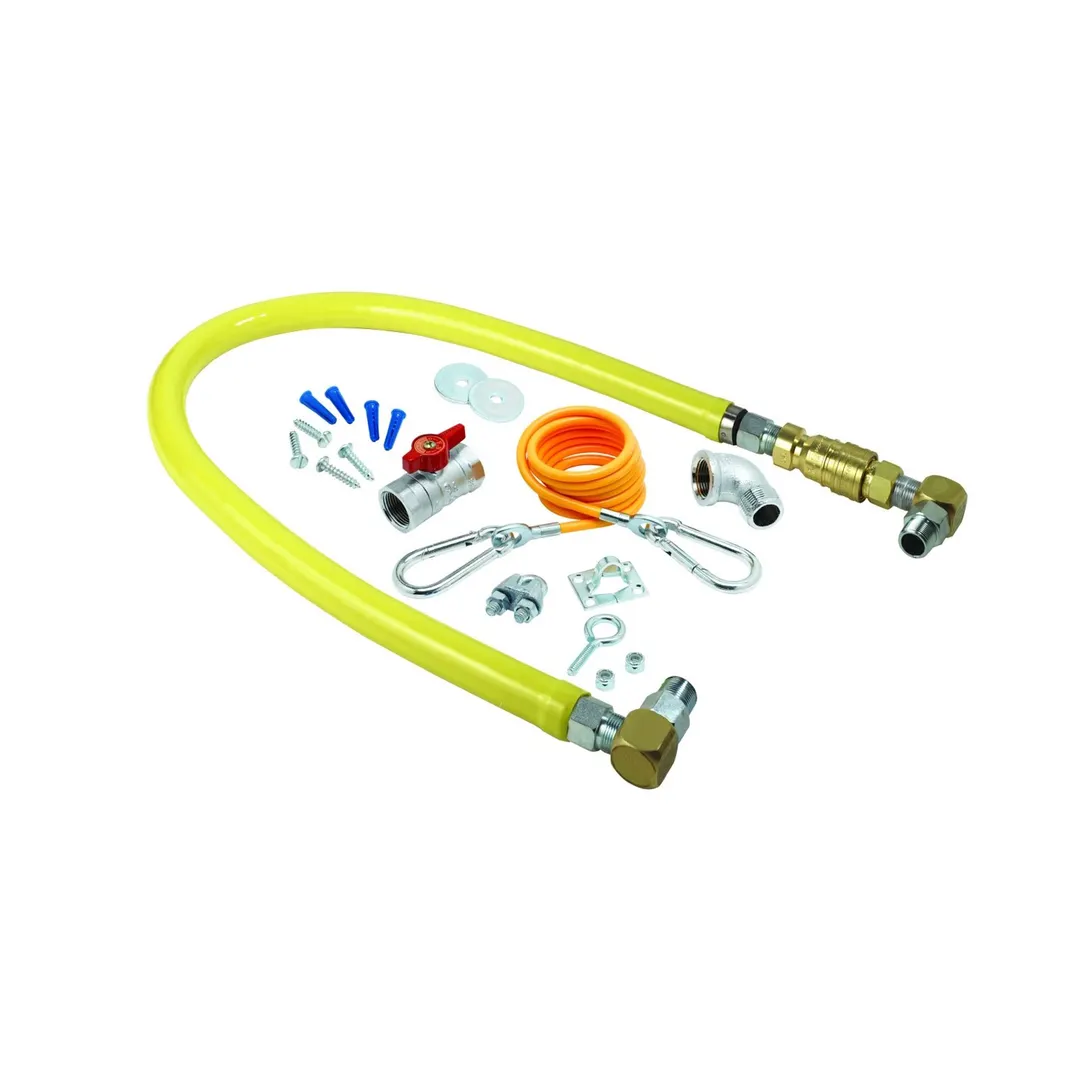

Safe-T-Link Gas Connector Kit, 3/4" connection, 24"L, stainless steel braid with extruded coating, (1) quick disconnect, (2) SwiveLink swivels, (1) 90° elbow, ball valve, restraining cable adjustable for 3' to 5'
