T&S Brass HG-4E-48GS-K Gas Connector Hose
General Info
48" coated gas appliance connector hose with 1" NPT male connections and quick disconnect valve, swivel fittings and restraining cable kit.
T&S Brass HG-4E-48GS-K Features
- 48” coated gas appliance connector
- (2) 1" NPT SwiveLink fittings
- Restraining cable kit
- 1" NPT female quick-disconnect valve
- 1" NPT street elbow included
- 1" NPT 90 elbow included
- 360 rotatable hex nut rotates completely and freely
- Optimum torsional relief improves safety, increases connector life
- Provides efficient, full gas flow
- Quick-disconnect valve acts as shut-off valve when the plug and socket are disconnected
- Material: Extruded coated stainless steel braids
T&S Brass HG-4E-48GS-K Specifications
- Gas Pressure : 1/2 psi max
- Temperature : 350 F max w/ Fusible Link Thermal Shut-off
- Capacity : 335,000 BTU / hr min
- Other Details : See spec. sheet
From The Manufacturer

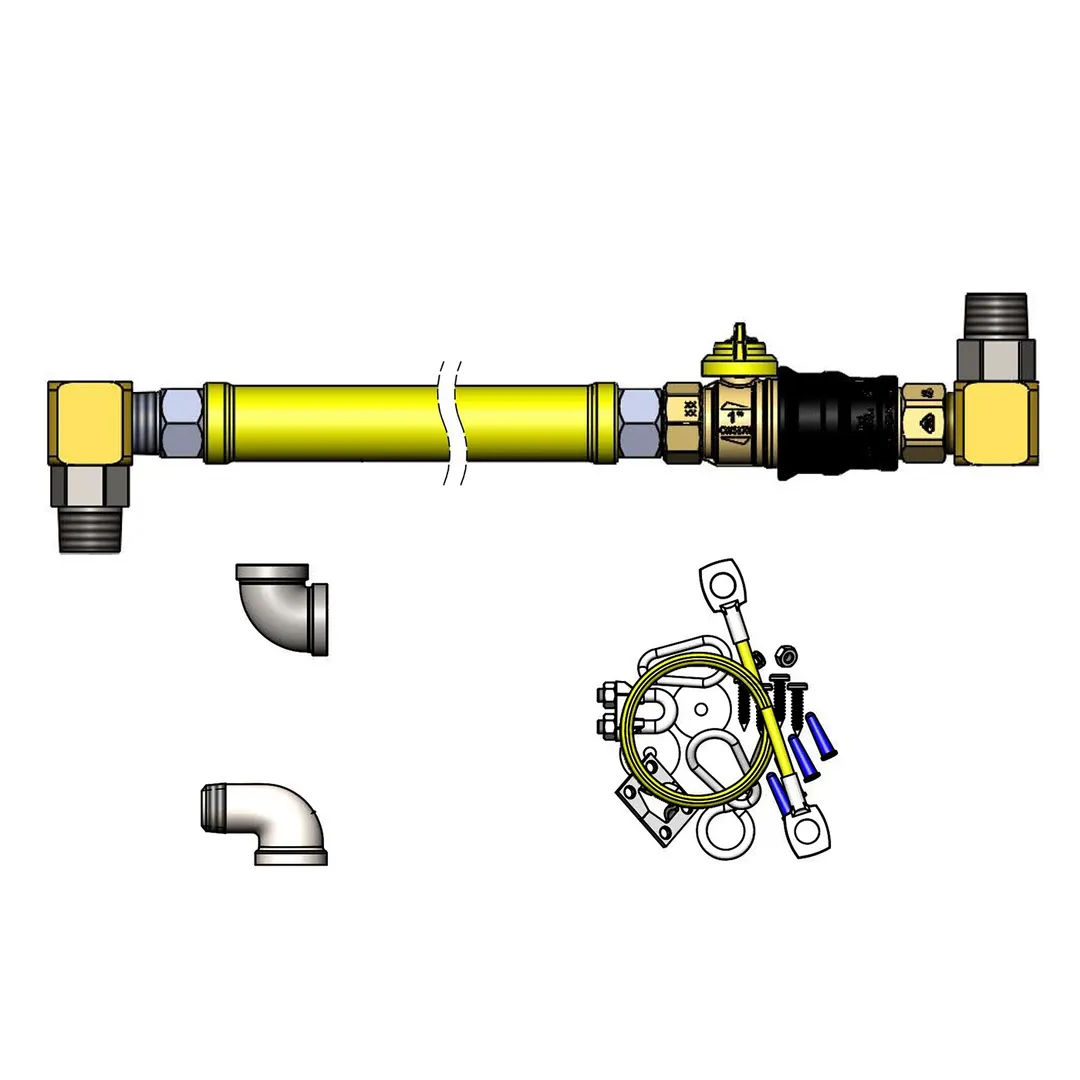

Safe-T-Link Gas Connector Hose, 1" NPT x 48" coated hose, Safe-T-Guard quick disconnect valve (QDV), SwiveLink fittings, (1) 90° elbow, (1) street "EL", restraining cable kit
