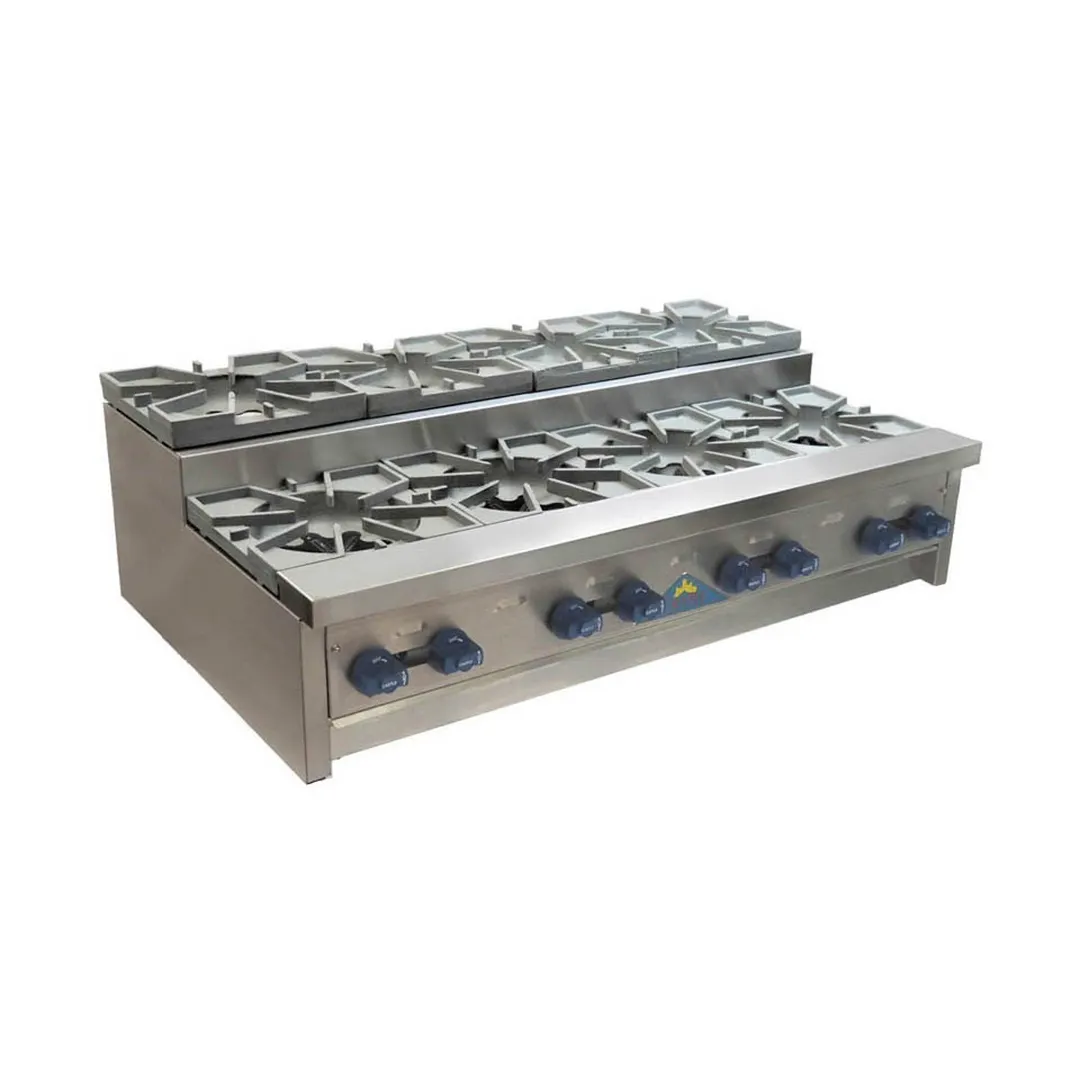

The Comstock-Castle SUFHP60 Step Up Series Hot Plates
Comstock-Castle SUFHP60 Standart Features
Construction
Easy cleaning, corrosion resistant stainless steel. Welded double walled cabinet frame. Stainless steel front control panel. Installation clearances for non-combustible surfaces are 0˝ on the sides and 0˝ in the rear, combustible surfaces are 6˝ on the sides and 6˝ in the rear.
Controls
Equipped with brass gas valves and automatic standing pilots. Pressure regulators are set at the factory for the type of gas specified. Optimal pressures are 4˝ WC for natural gas and 10˝ WC for propane. Manifold size is ¾˝ NPT. All controls are tested and confirmed in good working order. Installation, calibration and adjustments are the responsibility of the purchaser.
Burners
Open top burners are cast iron without gaskets, featuring a “star” pattern with extra large 7˝ flame spread, for superior efficiency, rated at 24,000 BTU. Cooks faster with less fuel consumption. Works equally well for large and small pots.
Top Grate
12˝ x 12˝ solid cast iron top grate sections feature castin aeration bowls that catch spills for easy clean up and also reflect heat upwards for maximum burner efficiency. Designed for easy movement of pots across top sections in any direction.
Match Ups
All FHP series hot match up with FHP series griddles char-broilers.
Accessories
Legs, lift off griddle plates and lift off char-broilers, gas hoses, knob protectors, carrying handles, spatulas, scrapers and matching equipment stands.
Comstock-Castle SUFHP60 Specification
Hotplate, Step-Up Saute, countertop, gas, 60" wide x 29" deep frame, 11" and 15" cook surfaces, (10) 24,000 BTU cast iron star pattern burners, 12" x 12" cast iron grates, stainless steel exterior finish, (10) manual controls, 240,000 BTU, NSF, ETL
