The Ikon IHP-4-24 Adjustable manual gas controls provide easy and safe operations
Ikon IHP-4-24 Features
- The Ikon Gas Hotplates are available in 2, 4 and 6 burner models, 12”, 24” & 36” widths
- The continous 25,000 BTU output per burner provides even heat to each cast iron grate with a built-in aeration bowl.
- Heavy-duty 12” x 12” cast iron grates
- Octagonal cast iron burners
- Standing pilot light for each burner
- All stainless steel cabinet
- Cast iron grates positioned evenly with s/s front ledge
- “Cool-to-the-touch” front s/s edge
- Aeration bowl in each grate to retain heat to each pot/pan
- Adjustable stainless steel legs, non-skid feet
- Full length seamless drip pan, easy to remove and clean
- Hotplate is fully serviceable from the front
- Available in Natural gas(NG) or Liquid propane(LP)
- A conversion kit is supplied with each unit
Gas Requirements
- Natural Gas or Liquid Propane (LP) Gas main supply required
- A conversion kit is supplied with each unit. In order to avoid any waranty issues, conversion of your unit must be completed by an authorized Ikon service agent.
- 3/4” NPT gas connection
- 25,000 BTU’s per burner
- One pilot light per burner
- Natural gas 4” W.C., LP gas 10” W.C.
From The Manufacturer

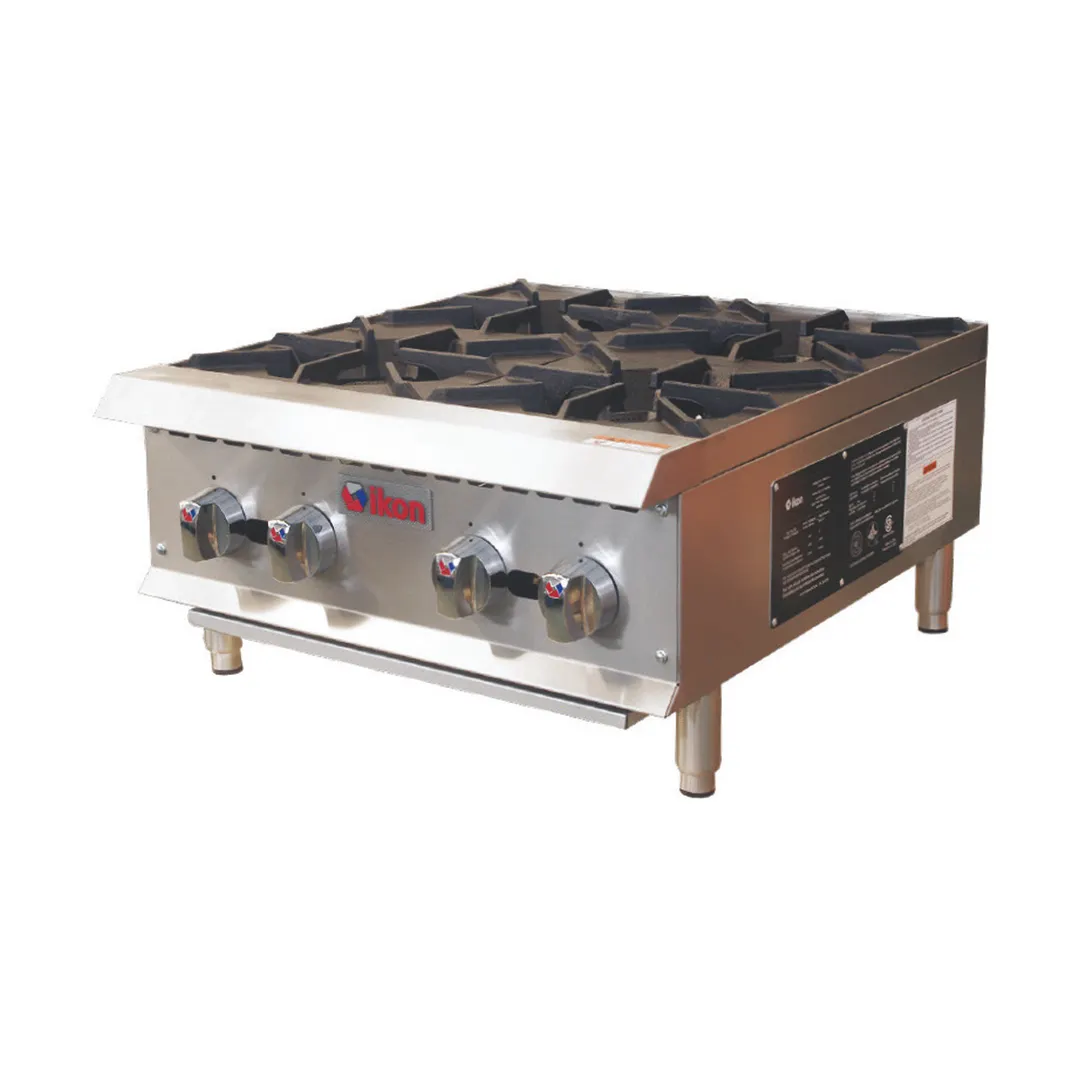

IKON Cooking Hotplate, natural gas, 24" W x 34.1" D, (4) 25,000 BTU octagonal cast iron burners, cast iron grate, standing pilot light per burner, manual controls, serviceable from front, stainless steel cabinet, adjustable stainless steel legs, 100,000 BTU total, CSA-Sanitation, CSA Flame, CSA Star (ships with LP gas conversion kit)
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
