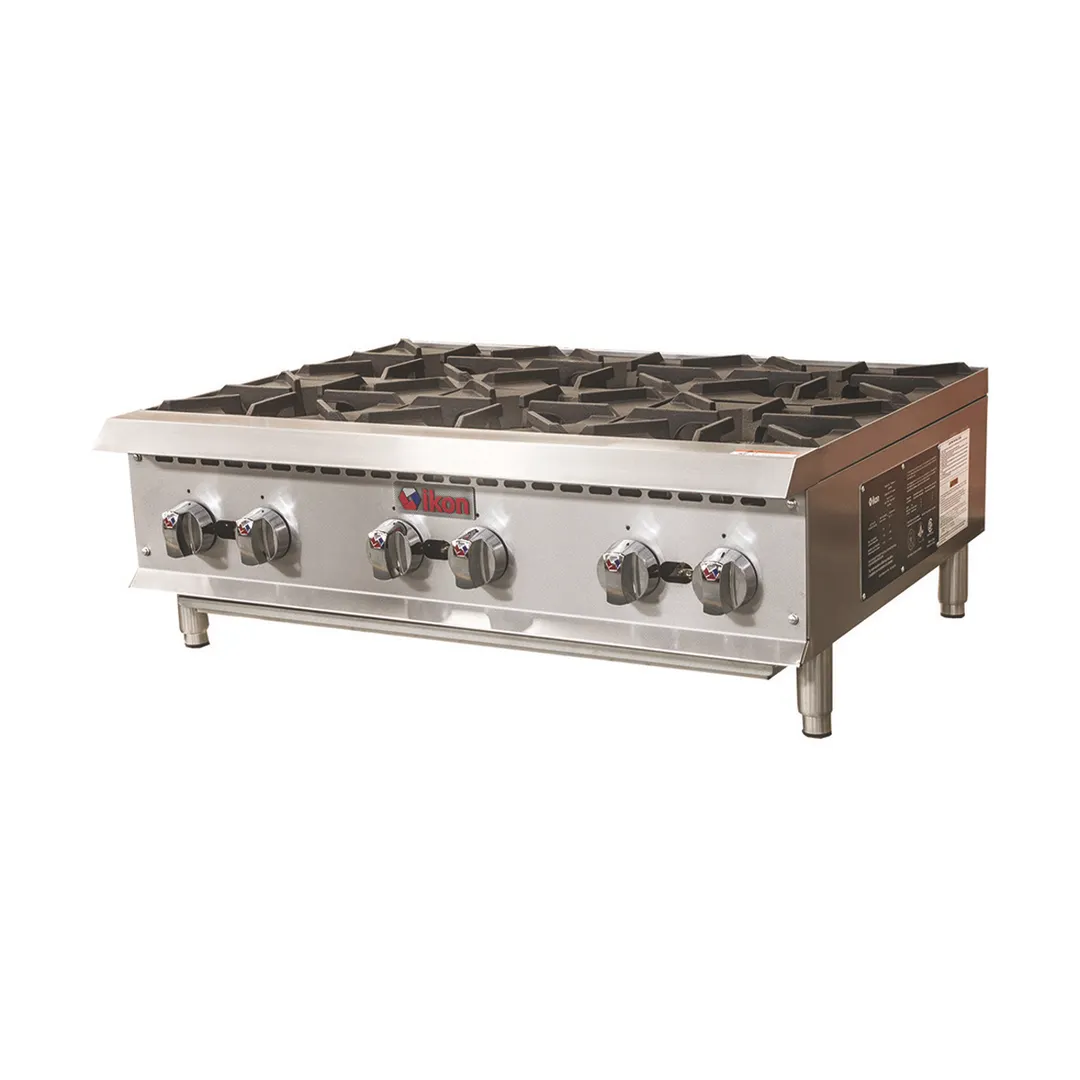

The Ikon IHP-6-36 Adjustable manual gas controls provide easy and safe operations
Ikon IHP-6-36 Features
- The Ikon Gas Hotplates are available in 2, 4 and 6 burner models, 12”, 24” & 36” widths
- The continous 25,000 BTU output per burner provides even heat to each cast iron grate with a built-in aeration bowl.
- Heavy-duty 12” x 12” cast iron grates
- Octagonal cast iron burners
- Standing pilot light for each burner
- All stainless steel cabinet
- Cast iron grates positioned evenly with s/s front ledge
- “Cool-to-the-touch” front s/s edge
- Aeration bowl in each grate to retain heat to each pot/pan
- Adjustable stainless steel legs, non-skid feet
- Full length seamless drip pan, easy to remove and clean
- Hotplate is fully serviceable from the front
- Available in Natural gas(NG) or Liquid propane(LP)
- A conversion kit is supplied with each unit
Gas Requirements
- Natural Gas or Liquid Propane (LP) Gas main supply required
- A conversion kit is supplied with each unit. In order to avoid any waranty issues, conversion of your unit must be completed by an authorized Ikon service agent.
- 3/4” NPT gas connection
- 25,000 BTU’s per burner
- One pilot light per burner
- Natural gas 4” W.C., LP gas 10” W.C.
From The Manufacturer
IKON Cooking Hotplate, gas, 36.5" W x 34.1" D, (6) 25,000 BTU octagonal cast iron burners, cast iron grate, standing pilot light per burner, manual controls, serviceable from front, stainless steel cabinet, adjustable stainless steel legs, 150,000 BTU total, CSA-Sanitation, CSA Flame, CSA Star
