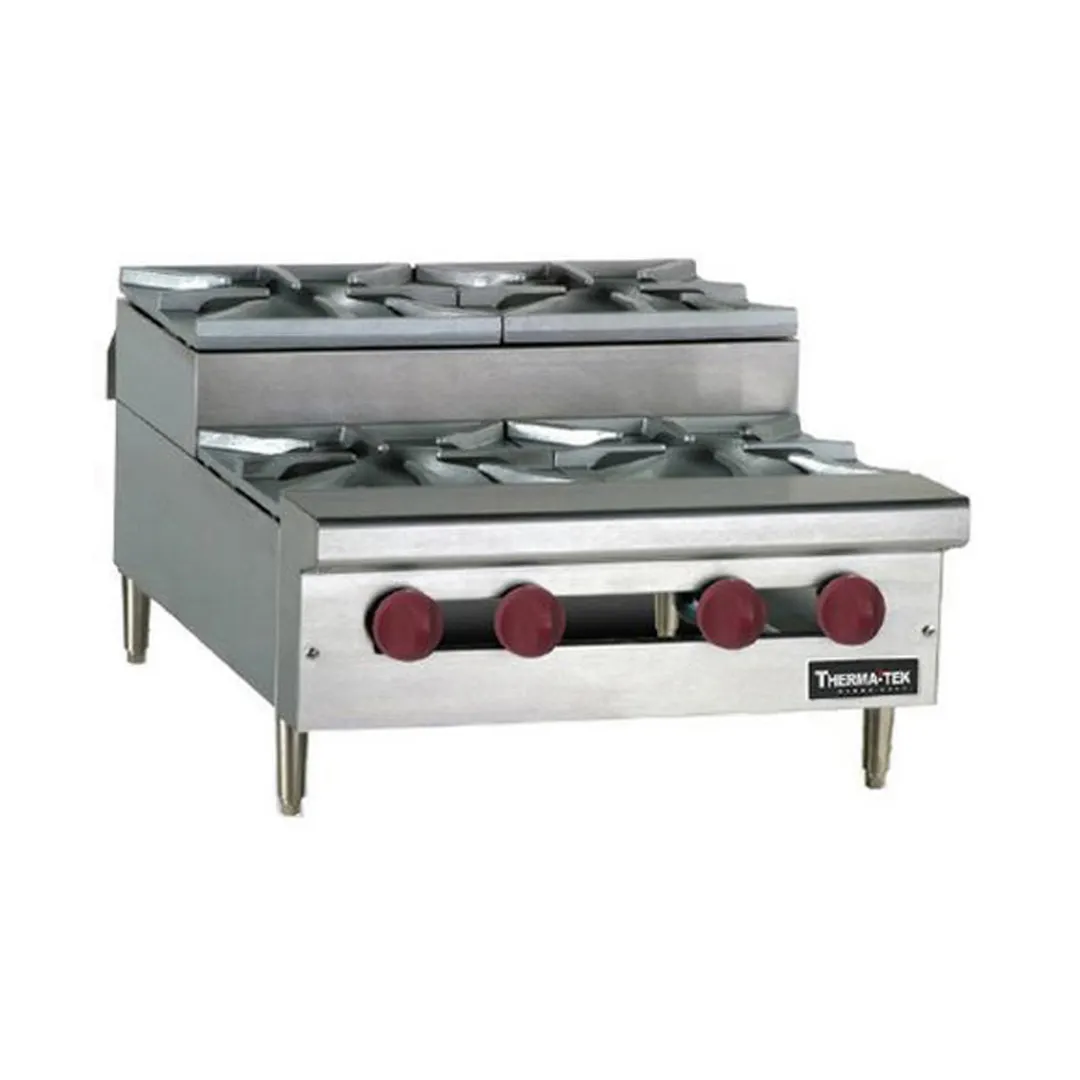

Therma-Tek Heavy Duty Gas Counter Hotplates
General Specifications
Heavy duty gas counter hotplates built on welded angle iron frame construction for strength and durability. Flat surface and step-up models feature lift off cast iron open top burners with individual top grates for each burner. Removable crumb tray is provided for easy cleaning. Standard model sizes are 12” (305 mm), 24” (610 mm), 36”(915 mm), 48”(1,219mm), 60” (1,524 mm) and 72”(1,829 mm). All counter models are range match when placed on our equipment stand.
Main Features
- Fully stainless steel exterior.
- 4” (101.5 mm) adjustable legs.
- Gas pressure regulator.
- Two year limited parts and labor warranty.
Open Top Burners
- Cast iron lift off burners for easy cleaning.
- Rated at 30,000 BTU’s (8.79 kW).
- Cast iron venturies.
- Top grate supports located every 12” assuring the cooking top’s structural integrity.
- Spill-proof pilot ignition system.
- Individual 12” (305 mm) x 12” (305 mm) cast iron top grates.
- Controlled by a brass valve with infinite adjustment.
Optional Features
- Stainless steel equipment stand with stainless steel bottom shelf and chrome plated leveling feet.
- Available sizes 12” (305 mm), 24” (610 mm), 36”(915 mm), 48”(1,219mm), 60” (1,524 mm) and 72”(1,829 mm)
- Model example: TC60S
- Add optional casters with suffix C. Model example: TC60SC
From The Manufacturer
Hotplate, gas, countertop, 36", (3) 30,000 BTU open burners, (3) 30,000 BTU step-up open burners, cast iron top grates, manual control, removable crumb tray, pressure regulator, spill-proof pilot ignition system, stainless steel exterior on iron frame, 4" adjustable legs, 180,000 BTU, cULus, UL-Sanitation
