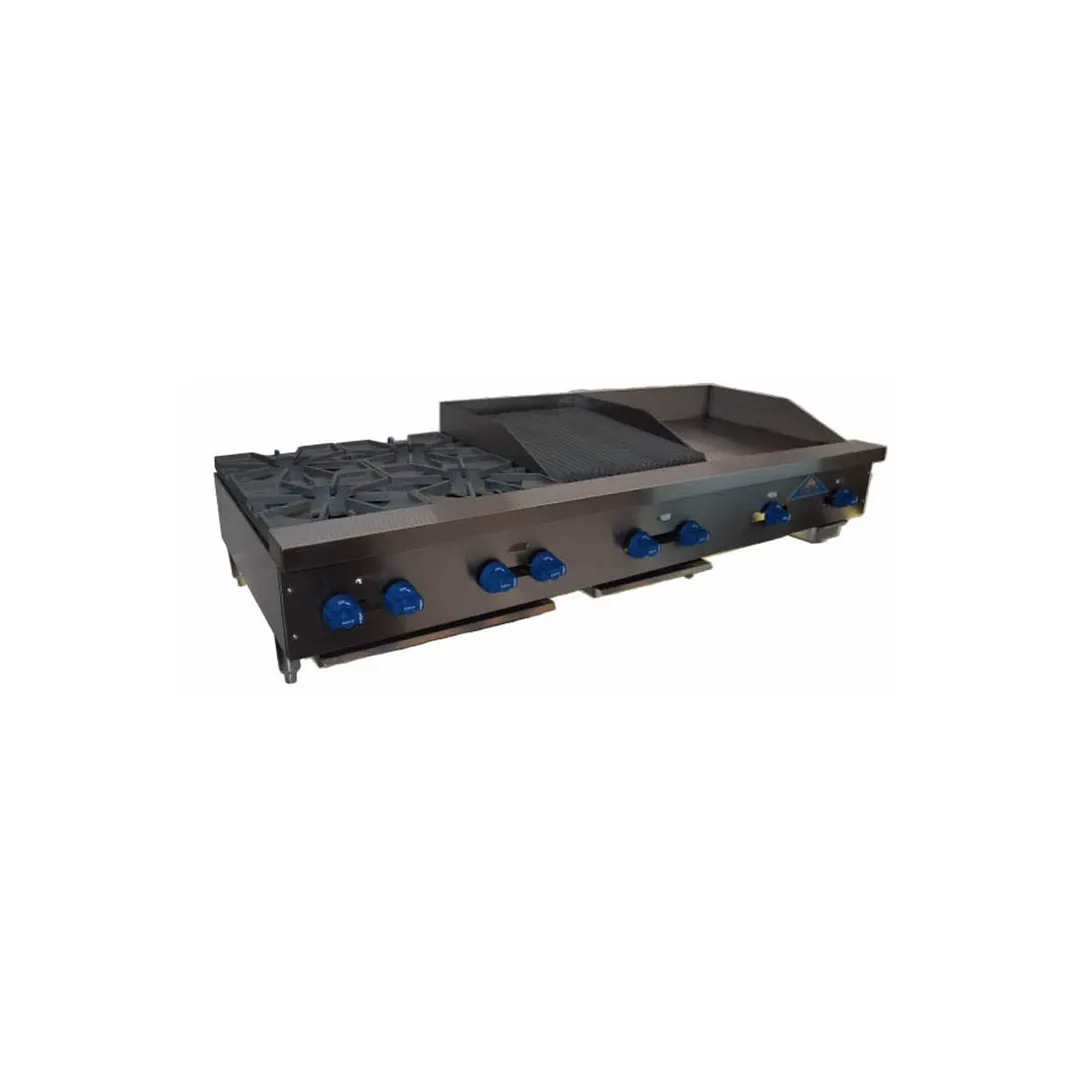

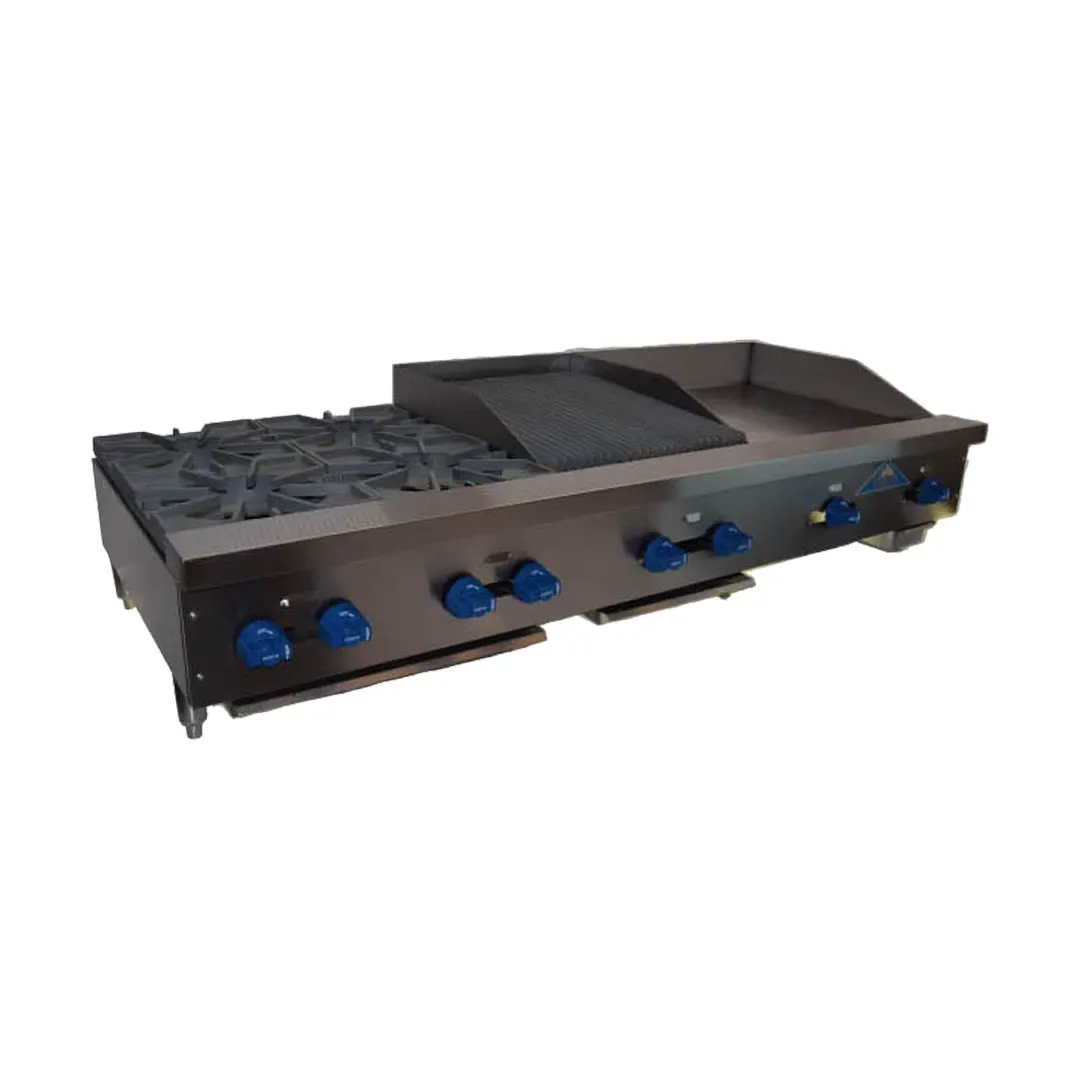

The Comstock-Castle FHP60-30-1.5RB FHP Series Counter Top Combination
Comstock-Castle FHP60-30-1.5RB Standart Features
Construction
Easy cleaning, corrosion resistant stainless steel finish, welded with angle iron and aluminized inner framing. Sturdy 5˝ heavy duty stainless pipe legs with adjustable feet. Stainless steel bullnoserail is functional on which to set plates or utensils and also serves as control protection. Double wall construction with heavy insulation for cooler operation. Installation clearances for non-combustible surfaces are 0˝ on the sides and 4˝ in the rear. Char-broilers are approved for use in non-combustible locations only.
Controls
Equipped with brass gas valves and automatic standing pilots. Pressure regulators are set at the factory for the gas specified. Optimal pressures are 4˝ WC for natural gas and 10˝ WC for propane. Manifold size is ¾˝ NPT. All controls are tested and confirmed in good working order. Calibration and adjustments are the responsibility of the installer.
Burners
12˝ incremental griddle & char-broiler models feature cast iron “H” pattern burners, one for each 12˝ increment; griddles are rated at 20,000 BTU ea. & char-broilers at 25,000 ea. Optional 35,000 BTU “H” char-broiler burners available. 18˝ and 30˝ griddle & charbroiler sections feature 2 and 4 straight burners respectively; griddles arerated at 18,000 BTU ea. & char-broilersat 20,000 ea. Open burners are cast iron without gaskets, rated at 24,000 BTU’sand feature a large 7˝ “star” flame pattern.
Char-Grates
Cast iron top grate sections measure 20.5˝ deep, designed with cast-in grease trough on each blade to allow grease run off into the front cold zone grease trough and reduces flare up. Each section is reversible for sloped or level grilling. Stainless steel splash guards on 3 sides graduating up to 4˝ high. Grease drain slot is 3.5˝ x 1˝ and feeds into a large, removable grease drawer.
Radiants
Char-broiler radiants are either lava rock or heavy duty angle iron, inverted “V” type for superior uniform heating temperature. “V” type radiants are easily removable for cleaning.
Open Top Grates
Open burner grates are 12˝ x 12˝ solid cast iron with spillover bowl that also reflects heat to the cooking surface for added efficiency and designed for easy movement of pots across top sections.
Griddle Plate
Highly polished tominimizefood sticking.¾˝ thick plate is standard, 1˝ thick is available. 4˝ high splash guard is standard. Higher sides are also available. 21¼˝ deep cooking surface with front cold zone grease trough. Grease drain slot is 3.5˝ x 1˝ and feeds into a seamless, deep, removable grease drawer.
Accessories & Options
Thermostats, safety pilots, 1˝ thick plates, grill scrapers, spatulas, cleaning supplies, chrome & grooved griddle plates, safety pilot controls, gas hoses, carrying handles, knob protectors and matching equipment stands.
Comstock-Castle FHP60-30-1.5RB Specification
Hotplate/Griddle-Cheesemelter/Char-Broiler Combination, countertop, gas, 60" wide x 28" deep, (2) 24,000 BTU cast iron star pattern hotplate burners, (1) 30" x 21" cooktop broil area, cast iron broiler grates, iron radiants, (1) 18" x 21" x 3/4" thick griddle plate, stainless steel exterior, 4" stainless steel legs, (8) manual controls, 160,000 BTU , NSF, ETL
