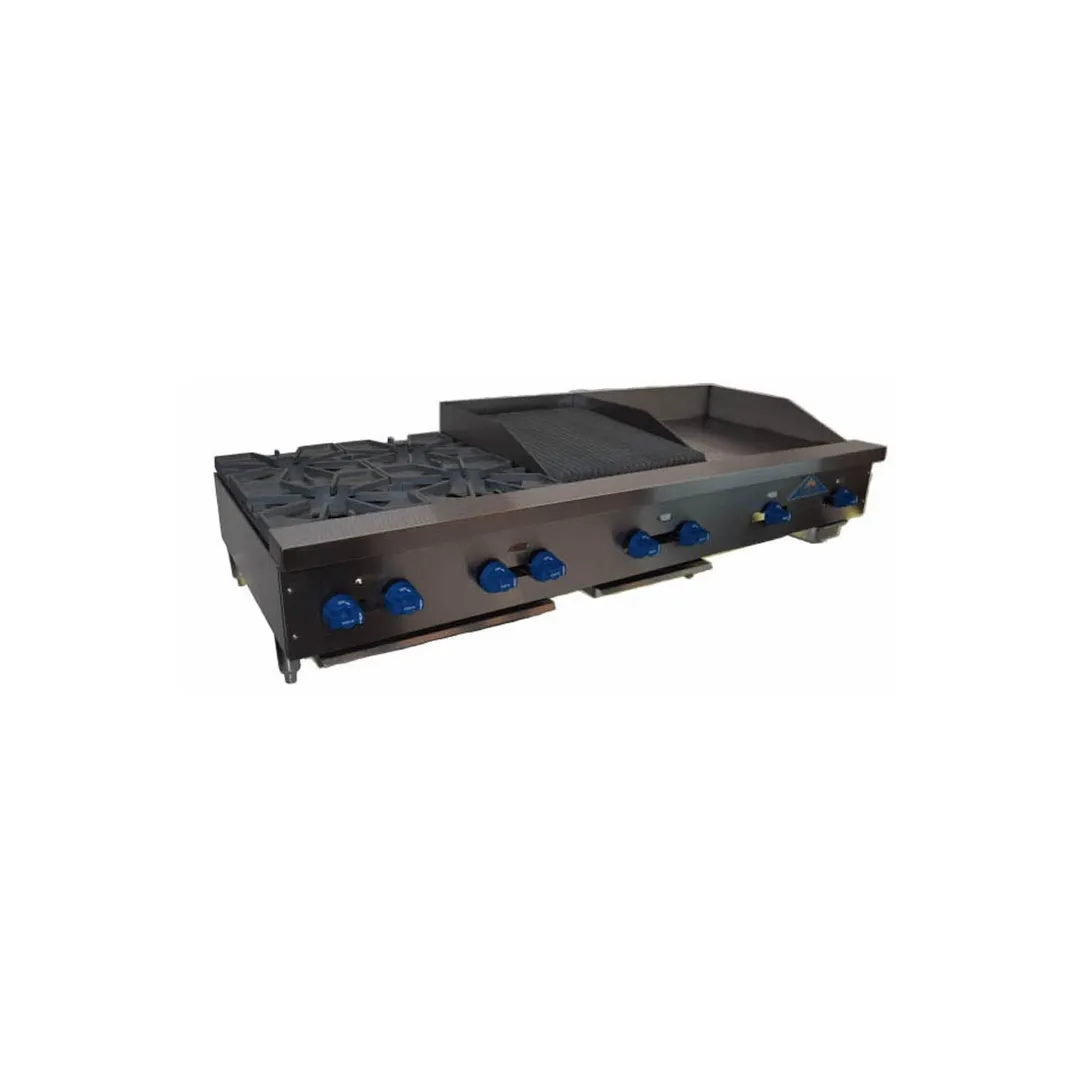

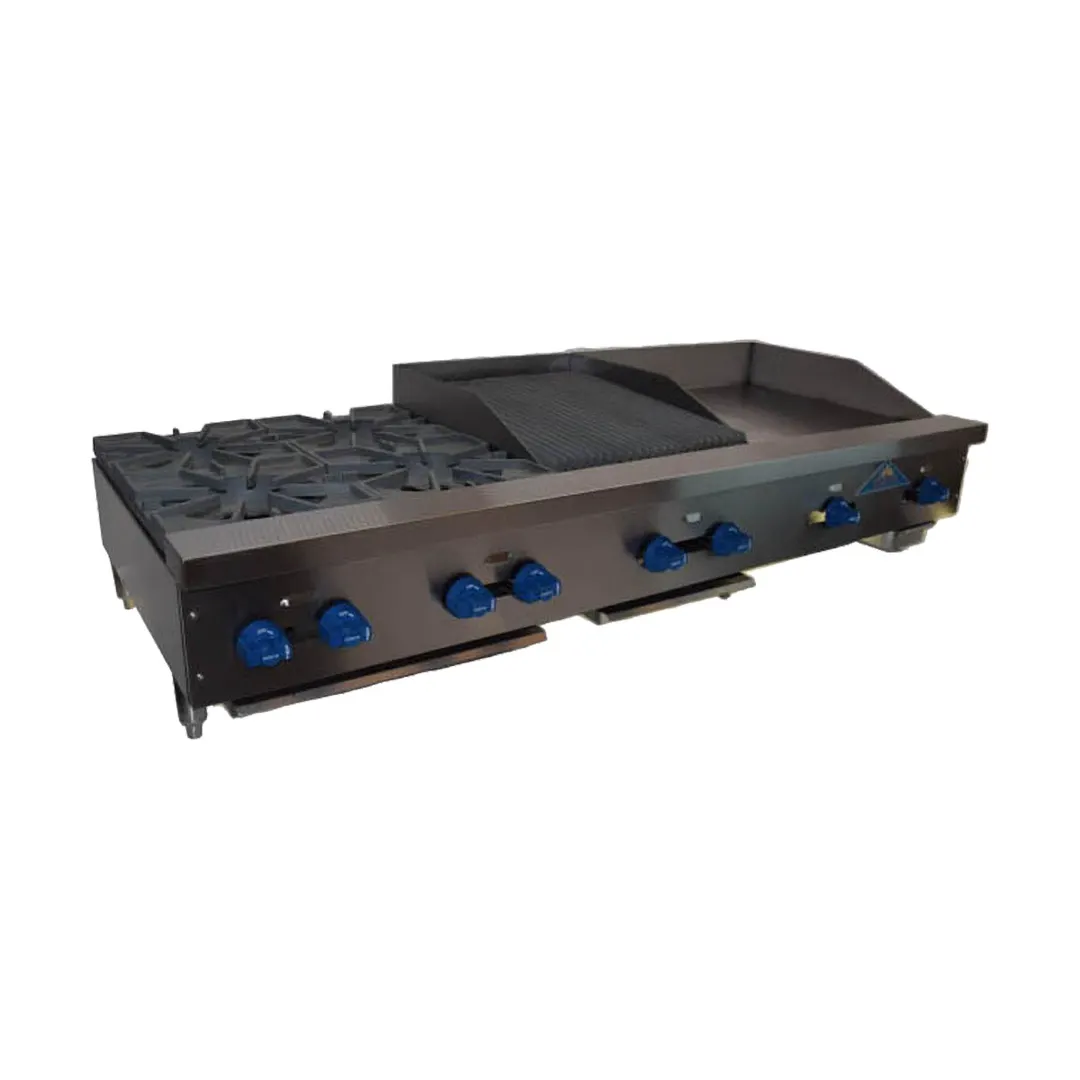

Comstock-Castle FHP72-24-2LB 72" Countertop Hotplate/Griddle/Charbroiler Combos, 186.000 BTU

Free Shipping
Comstock-Castle FHP72-24-2LB 72" Countertop Hotplate/Griddle/Charbroiler Combos, 186.000 BTU
The image above may not exactly represent the product
credit key Net 30 or as low as 112.25/mo width
credit key Credit Key
Apply Now
Financing Available
?

Small payments, big returns—view financing details now!

Comstock-Castle FHP72-24-2LB Specs
ManufacturerComstock-Castle
Model NumberFHP72-24-2LB
Weight560 lbs
Depth28
Exterior Finishstainless steel front & sides
Width72
Open Burners4
Plate Thickness3/4"
Griddle Plate Finishsteel
Griddle Controlsmanual controls
Installation Typecountertop
Total BTU186,000
Broiler Typelava broiler
Combo Typecharbroiler/hotplate
Broiler Area24"W x 21"D
Griddle Area24"W x 21"D
Description
Reviews

The Comstock-Castle FHP72-24-2LB FHP Series Counter Top Combination

Comstock-Castle FHP72-24-2LB Standart Features

Construction

Easy cleaning, corrosion resistant stainless steel finish, welded with angle iron and aluminized inner framing. Sturdy 5˝ heavy duty stainless pipe legs with adjustable feet. Stainless steel bullnoserail is functional on which to set plates or utensils and also serves as control protection. Double wall construction with heavy insulation for cooler operation. Installation clearances for non-combustible surfaces are 0˝ on the sides and 4˝ in the rear. Char-broilers are approved for use in non-combustible locations only.

Controls

Equipped with brass gas valves and automatic standing pilots. Pressure regulators are set at the factory for the gas specified. Optimal pressures are 4˝ WC for natural gas and 10˝ WC for propane. Manifold size is ¾˝ NPT. All controls are tested and confirmed in good working order. Calibration and adjustments are the responsibility of the installer.

Burners

12˝ incremental griddle & char-broiler models feature cast iron “H” pattern burners, one for each 12˝ increment; griddles are rated at 20,000 BTU ea. & char-broilers at 25,000 ea. Optional 35,000 BTU “H” char-broiler burners available. 18˝ and 30˝ griddle & charbroiler sections feature 2 and 4 straight burners respectively; griddles arerated at 18,000 BTU ea. & char-broilersat 20,000 ea. Open burners are cast iron without gaskets, rated at 24,000 BTU’sand feature a large 7˝ “star” flame pattern.

Char-Grates

Cast iron top grate sections measure 20.5˝ deep, designed with cast-in grease trough on each blade to allow grease run off into the front cold zone grease trough and reduces flare up. Each section is reversible for sloped or level grilling. Stainless steel splash guards on 3 sides graduating up to 4˝ high. Grease drain slot is 3.5˝ x 1˝ and feeds into a large, removable grease drawer.

Radiants

Char-broiler radiants are either lava rock or heavy duty angle iron, inverted “V” type for superior uniform heating temperature. “V” type radiants are easily removable for cleaning.

Open Top Grates

Open burner grates are 12˝ x 12˝ solid cast iron with spillover bowl that also reflects heat to the cooking surface for added efficiency and designed for easy movement of pots across top sections.

Griddle Plate

Highly polished tominimizefood sticking.¾˝ thick plate is standard, 1˝ thick is available. 4˝ high splash guard is standard. Higher sides are also available. 21¼˝ deep cooking surface with front cold zone grease trough. Grease drain slot is 3.5˝ x 1˝ and feeds into a seamless, deep, removable grease drawer.

Accessories & Options

Thermostats, safety pilots, 1˝ thick plates, grill scrapers, spatulas, cleaning supplies, chrome & grooved griddle plates, safety pilot controls, gas hoses, carrying handles, knob protectors and matching equipment stands.

Comstock-Castle FHP72-24-2LB Specification

Hotplate/Griddle/Char-Broiler Combination, countertop, gas, 72" wide x 28" deep frame, (4) 24,000 BTU cast iron star pattern hotplate burners, (1) 24" x 21" x 3/4" thick griddle plate, (1) 24" x 21" cooktop broil area, cast iron broiler grates, lava rock with cast iron bottom grates, stainless steel exterior, 4" stainless steel legs, manual controls, 186,000 BTU, NSF, ETL

From The Manufacturer

Hotplate/Griddle/Char-Broiler Combination, countertop, gas, 72" wide x 28" deep frame, (4) Four star burners (Front burner 24,000 BTU) (Rear burner 30,000 BTU), (1) 24" x 21" x 3/4" thick griddle plate, (1) 24" x 21" cooktop broil area, cast iron broiler grates, lava rock with cast iron bottom grates, stainless steel exterior, 4" stainless steel legs, manual controls, 224,000 BTU, 3/4" gas connection, NSF, ETL
