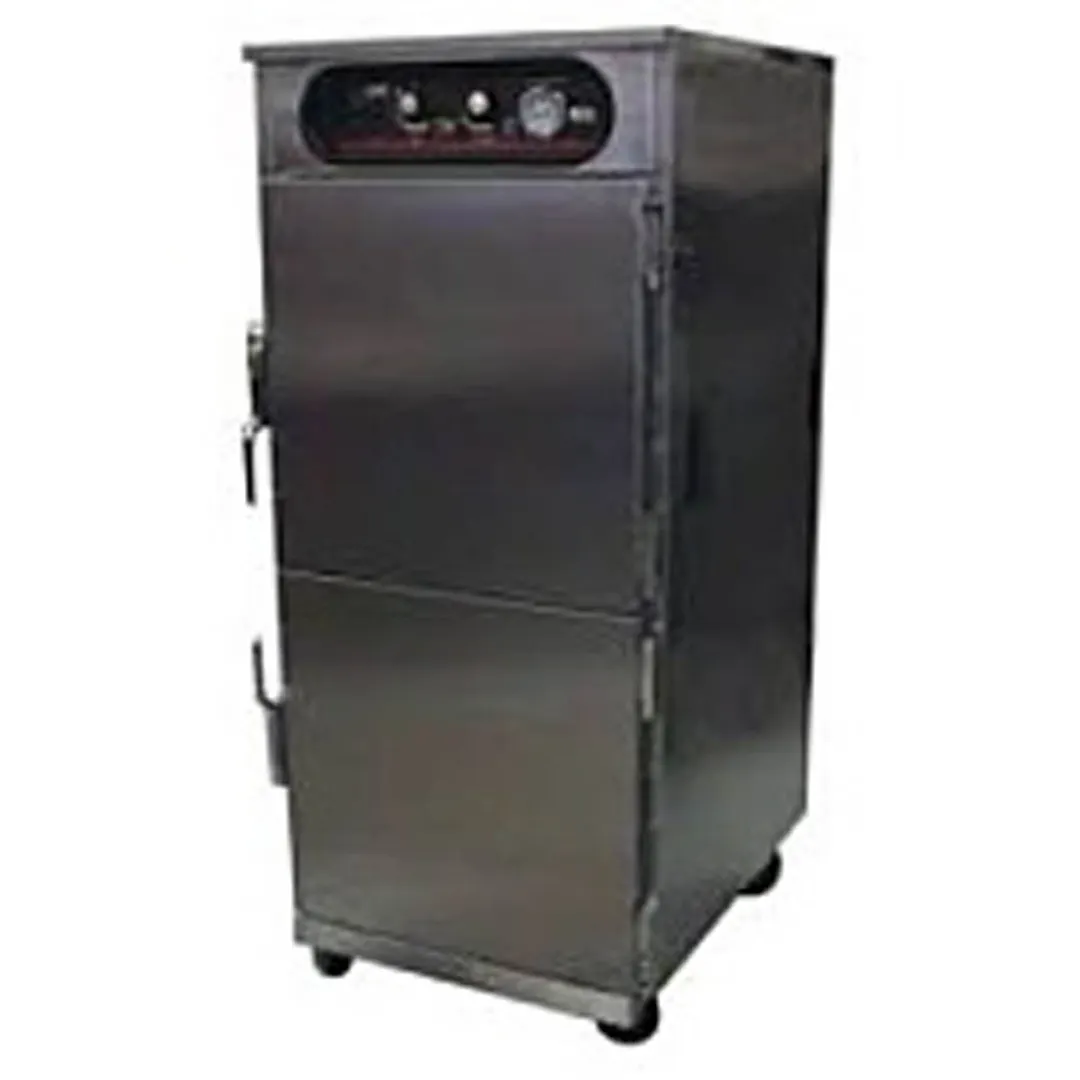

Carter-Hoffmann HL9-14 1-Compartment 3/4 Height Heated Holding Cabinet, Solid Door, 28×12"x20" or 14×18"x26" Pan Capacity, Stainless Steel

General Info

hotLOGIX HL9 Series Heated Humidified Food Holding Cabinets are designed to hold cooked food warm and ready for serving. They are constructed of sanitary insulated stainless steel and feature a top-mounted heat and humidity system. Dial controls for heat and humidity and precision engineered ducts for even air flow throughout the cabinet. They come in undercounter, half height, ¾ height and full height.

Carter-Hoffmann HL9-14 Standard Features

• Dial control for easy temperature setting; dial thermometer with remote sensing bulb; on/off switch with power indicating light
• Top mounted blower heater, capable of heating to 200°F (93°C); pre-heat to 160°F (71°C) in approximately 25 minutes
• Double wall, insulated stainless steel construction; filled with 2” thick high-density fiberglass wrap-around insulation; 20 gauge interior and 20 gauge polished exterior stainless steel; full depth caster bolster with perimeter supports welded to bolsters
• Double panel door filled with 2” thick high-density fiberglass insulation; heavy-duty edge mounted, chrome-plated latch with magnetic catch
• High temperature magnetic door gasket
• 5” diameter casters with rubber tread, all-swivel, two fitted with brakes; 3” casters on HL7-5
• Adjustable, self-closing, edge mount hinges with chrome plate finish
• Removable tray racks with universal stainless steel slides; standard spacing at 3”, adjustable on 1.5” centers
• Accommodates 12”x20” steam table pans, 18”x26” sheet pans and GN 2/1 or 1/2 pans
• Four sizes: under-counter, ½ height, ¾ height and full height

Carter-Hoffmann HL9-14 Specifications

• Pan Capacity :
  • 12”x20” / GN 1/1 Pans: 28
  • 18”x26” / GN 2/1 Pans: 14
• Overall Dimensions (in/mm) : 64-3/8" 1635mm H X 33-1/16" 840mm D X 28" 711mm W
• Caster Diameter in (mm) : 5" 127mm
• Shipping weight lbs(kgs) : 413(189)
• Other Details : See spec. sheet
