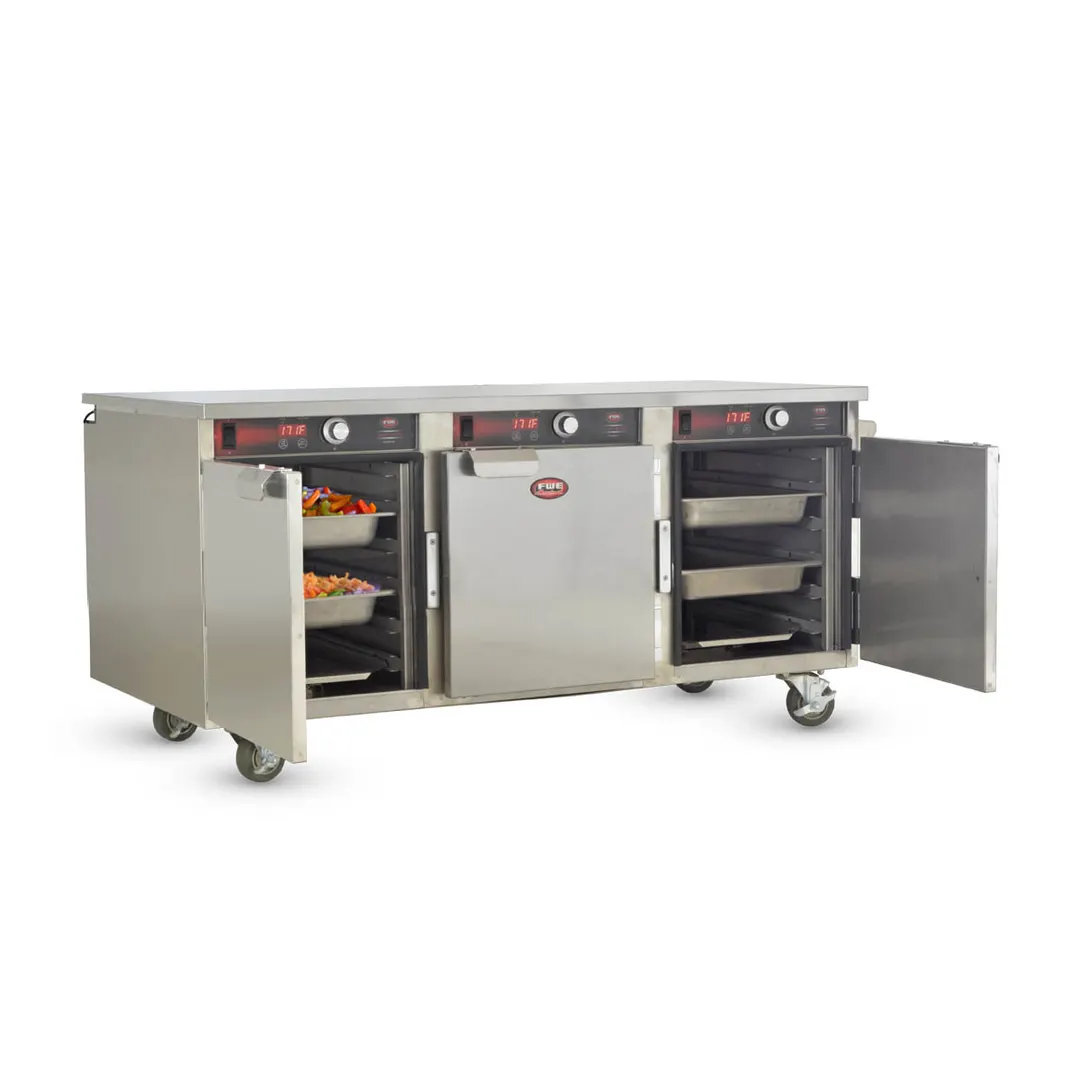

FWE HLC-5H-15 3-Section Heated Holding Cabinet, 3-Door, Solid Doors, Undercounter Height, Stainless Steel

SKU FWE-HLC-5H-15

$6,712.82/Each

FWE HLC-5H-15 3-Section Heated Holding Cabinet, 3-Door, Solid Doors, Undercounter Height, Stainless Steel

FWE HLC-5H-15 3-Section Heated Holding Cabinet, 3-Door, Solid Doors, Undercounter Height, Stainless Steel

The image above may not exactly represent the product

$6,712.82/Each

0% Interest for 30 Days with

Calculate Estimated Shipping Cost

View Comparelist

Financing Available

Small payments, big returns—view financing details now!

Resources

resources of Spec Sheet

FWE HLC-5H-15 Specs

Manufacturer	FWE
Model Number	HLC-5H-15
Weight	255 lbs
Width	52″
Depth	27.5″
Height	27.5″
Installation Type	mobile
Height (Range)	25" - 30"
Size	3 compartment
Sections	3 section
Pan Capacity (12"x20")	(5) pans
Door Type	solid door(s)
Door Style	full door(s)
Insulation	insulated
Exterior Finish	all stainless steel exterior
Heater System Type	bottom mounted

View All FWE Products >

Description

Reviews

FWE HLC-5H-15 UnderCounter Heated Holding Cabinets

General Informations

HLC-5H-15, triple-cavity, heated holding cabinet. Provided with (7) pair of tray slides at 2.625" spacing, PER CAVITY, 21 total pair per unit. Fixed slides accommodate 12" x 20", 18" x 13", GN 1/1 pans. Custom slide spacing available at time of order.

Construction

Stainless Steel / Insulated - Constructed of stainless steel, with welded base frame for added strength and durability - fully insulated cabinet and door provide energy efficient heating and longer holding times.

Control Panel

Electronic Controls - Electronic controls featuring easy to read digital display of cabinet temperature (with recall capacity of temperature set point and actual cabinet temperature), equipped with a programmable low temperature alarm, master ON/OFF switch with power indicator light.

Heat System

Radiant Heat System - FWE's natural convection heat system allows a soft heat to radiate throughout the compartment. Heat rises naturally and circulates from bottom to top without blowers. Radiant heat is best suited for short term heated holding.

Slides and Shelves

Fixed Slides for 12x20 Pans - Accommodates shallow and and deep 12" x 20" pans , 18" x 13" trays and GN 1/1 containers. Unique pan slides racks' front edges are relieved for easy loading, one piece die stamped stainless steel for extra strength, and removable for easy cleaning.

FWE HLC-5H-15 Specifications

OVERALL EXTERIOR DIMENSIONS IN. (mm) : 25.5″ (648) H X 27.5" (698) D X 52" (1321) W
CASTER SIZE : 3,5″
SHIP WT. LBS.(KG) : 260 (117)
OTHER DETAILS : See Spec. Sheet

From The Manufacturer

Handy Line Heated Cabinet, mobile, (3) doors, undercounter height, (3) compartment, insulated, front controls, stainless steel removable pan racks fixed on 2-5/8" OC for (5) 12" x 20" x 2-1/2" pans per compartment, 20 gauge stainless steel exterior with 22 gauge stainless steel interior construction, UL, cUL, UL EPH Classified, IPX4
