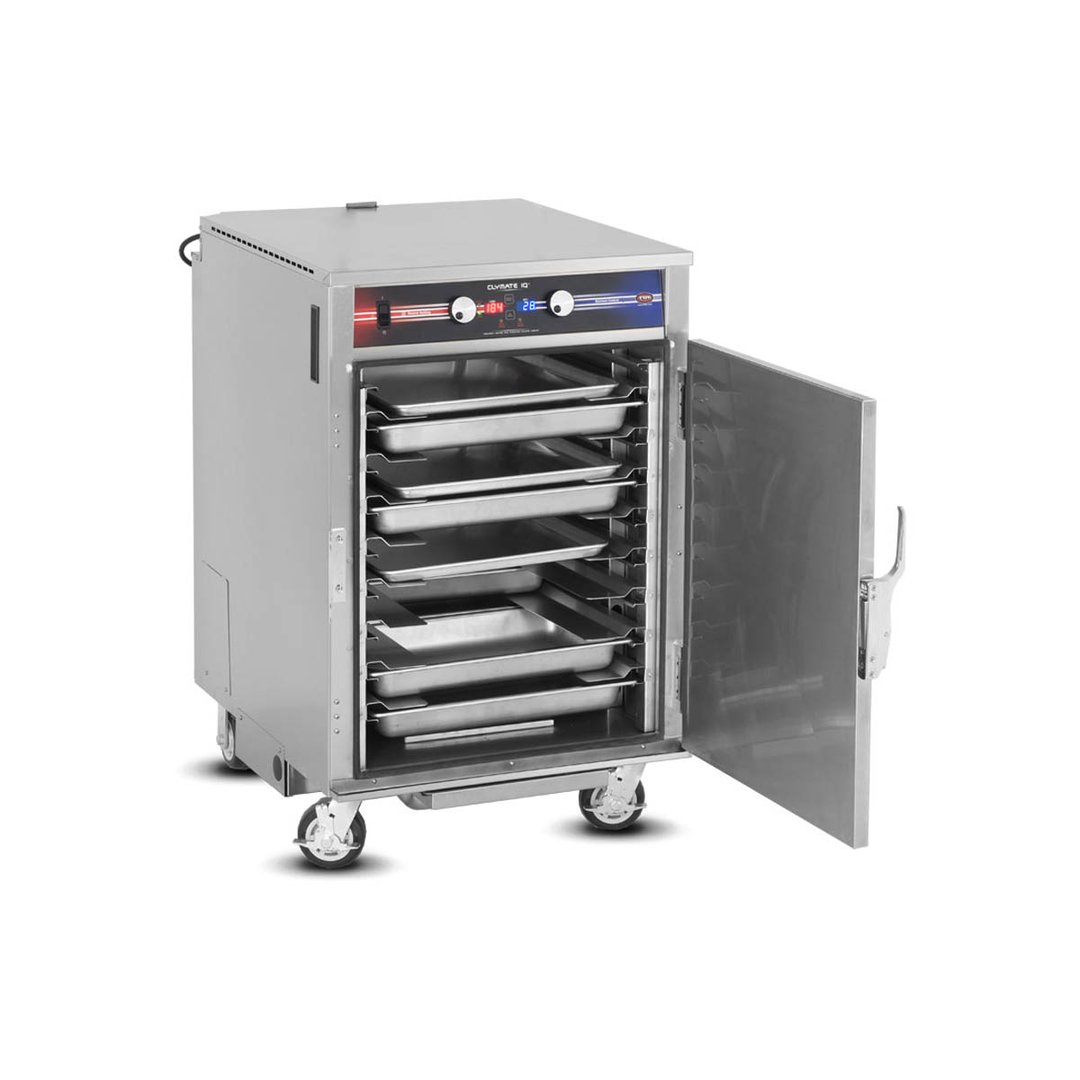

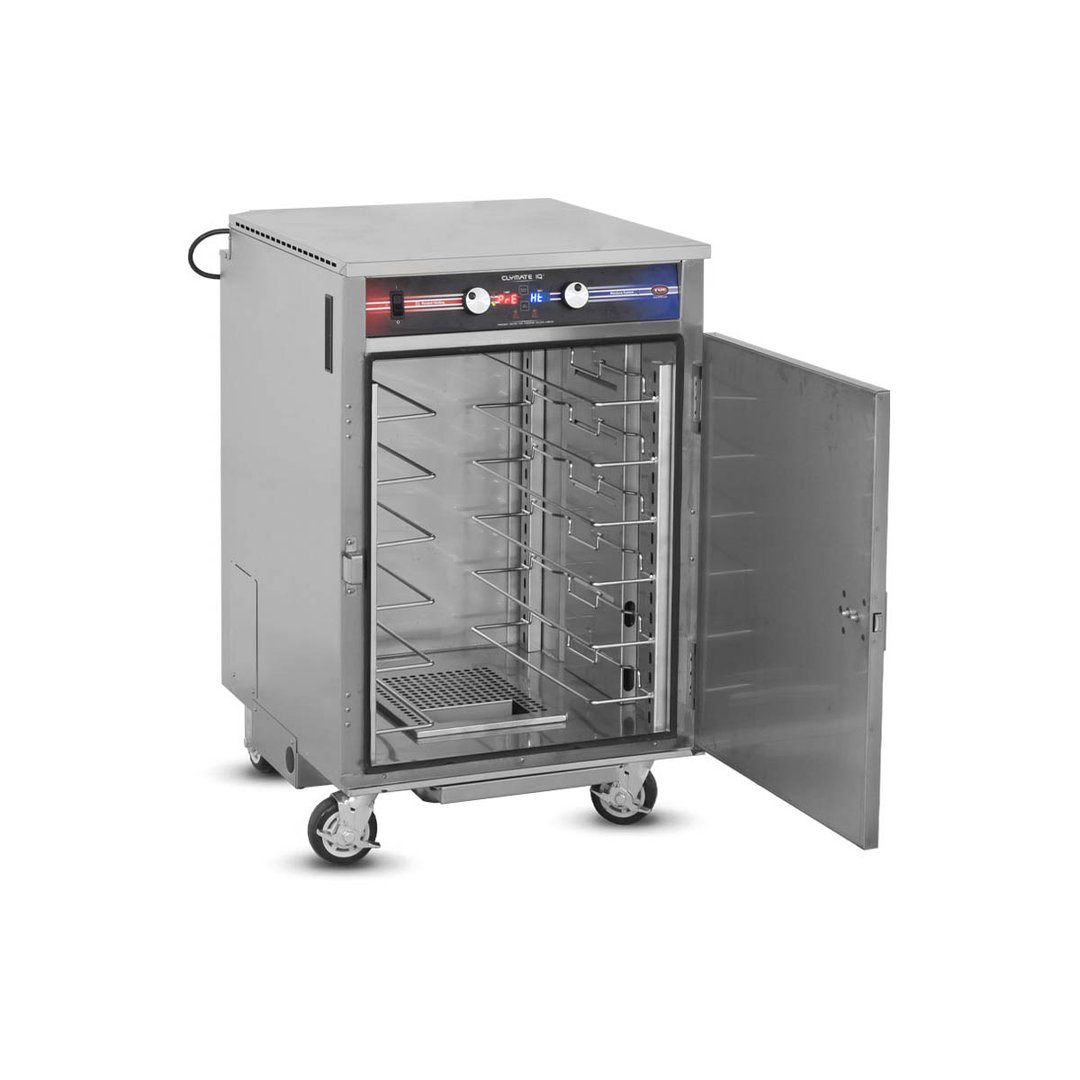

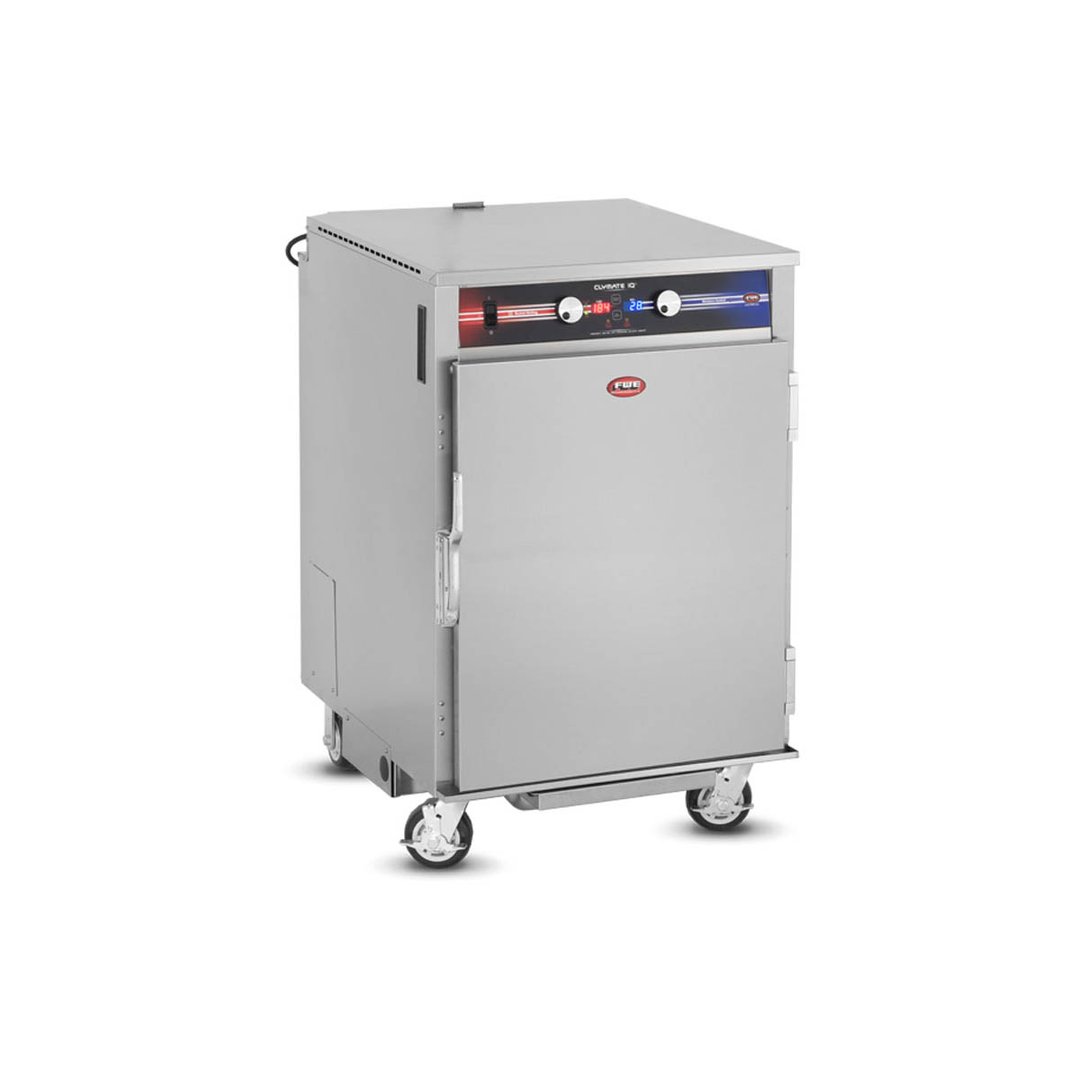

FWE PHTT-6-CV Insulated Mobile Heated Cabinet

General Informations

PHTT-6-CV, Moisture Holding, 6 pair of slides are provided at standard 4.5" spacing. If required additional slides and shelves are available.

Construction

Stainless Steel / Insulated - Constructed of stainless steel, with welded base frame for added strength and durability - fully insulated cabinet and door provide energy efficient heating and longer holding times.

Control Panel

• PHTT Controls - Simple to use - user-friendly, easy to read, easy to set, color-coded controls allow you to set the unit from 0% - 90% relative humidity and 90F - 200F. Equipped with low water and temperature alarms.
• Electronic Controls - Electronic controls featuring easy to read digital display of cabinet temperature (with recall capacity of temperature set point and actual cabinet temperature), equipped with a programmable low temperature alarm, master ON/OFF switch with power indicator light.

Humidity Pan

Removable humidity pan: 12" x 20" pan provides large water reservoir - removable, easy to clean and replace.

Heat System

Clymate IQ Heat System - Achieve extended holding times with controlled moisture. Provide the best food quality from precision heated moisture for either long-term or short-term holding applications. Precision heat and humidity achieved by a unique push/pull air distribution system to provide uniform temperature and humidity on every level, throughout the unit.

Slides and Shelves

Adjustable Universal Slides Stainless Steel - Unique universal design holds 12" x 20" pans, 18" x 26" sheet trays or GN containers on fully adjustable stainless steel tray slides. Slides are removable for thorough interior cleaning.

FWE PHTT-6-CV Specifications

• OVERALL EXTERIOR DIMENSIONS IN. (mm) : 44.75″ (1137mm) H X 35,25" (896mm) D X 27,75" (705mm) W
• NO.OF DOOR : 1
• CASTER SIZE : 5″
• SHIP WT. LBS.(KG) : 330 (150)
