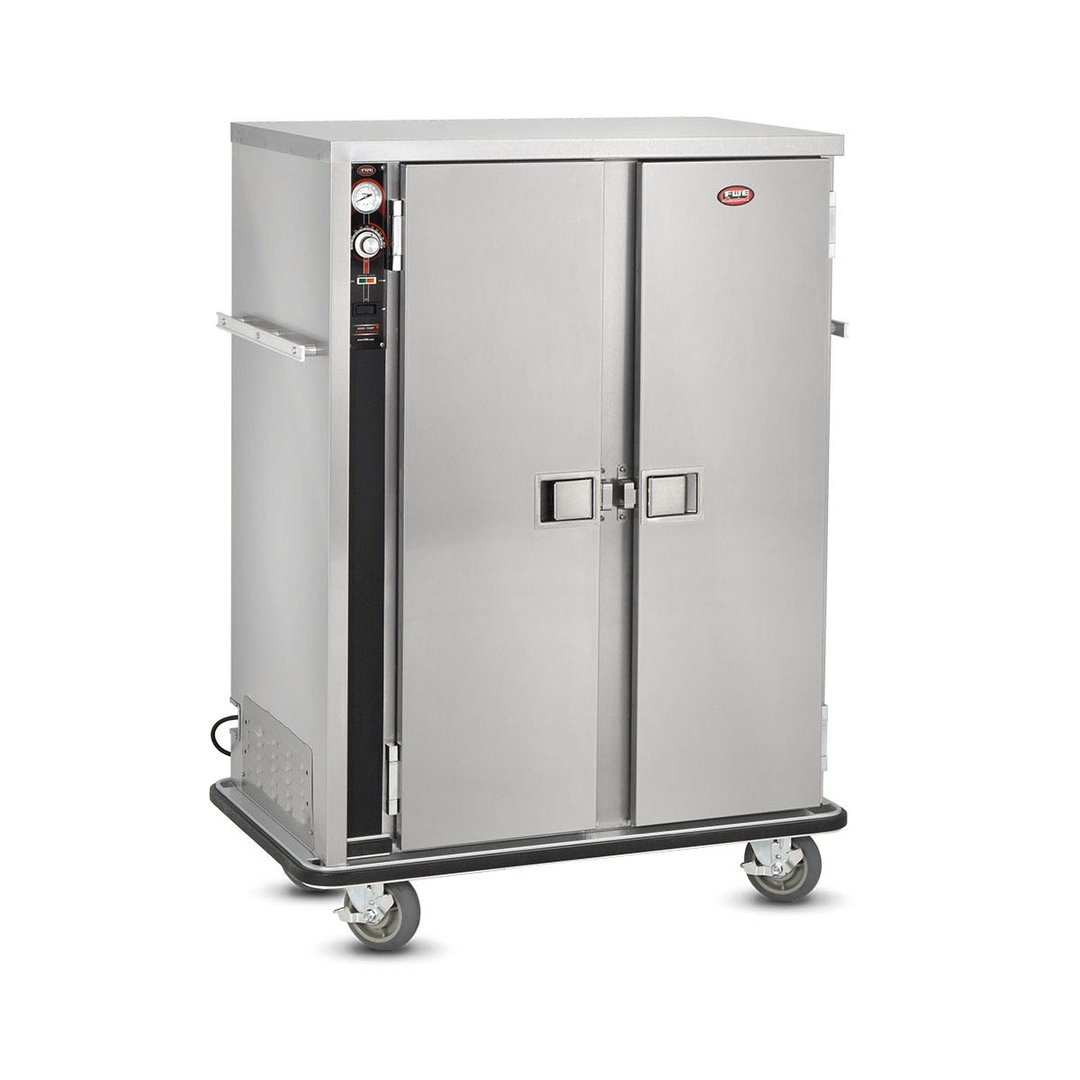

FWE PS-1220-30 Humidified Heated Holding Transport Cabinet

Genereal Informations

PS-1220-30, Heated Holding, Transport & Serving 30 pair of slides are provided at 2.625" spacing. Custom pan slide spacings are available at time of order.

Construction

Stainless Steel / Insulated - Constructed of stainless steel, with welded base frame for added strength and durability - fully insulated cabinet and door provide energy efficient heating and longer holding times.

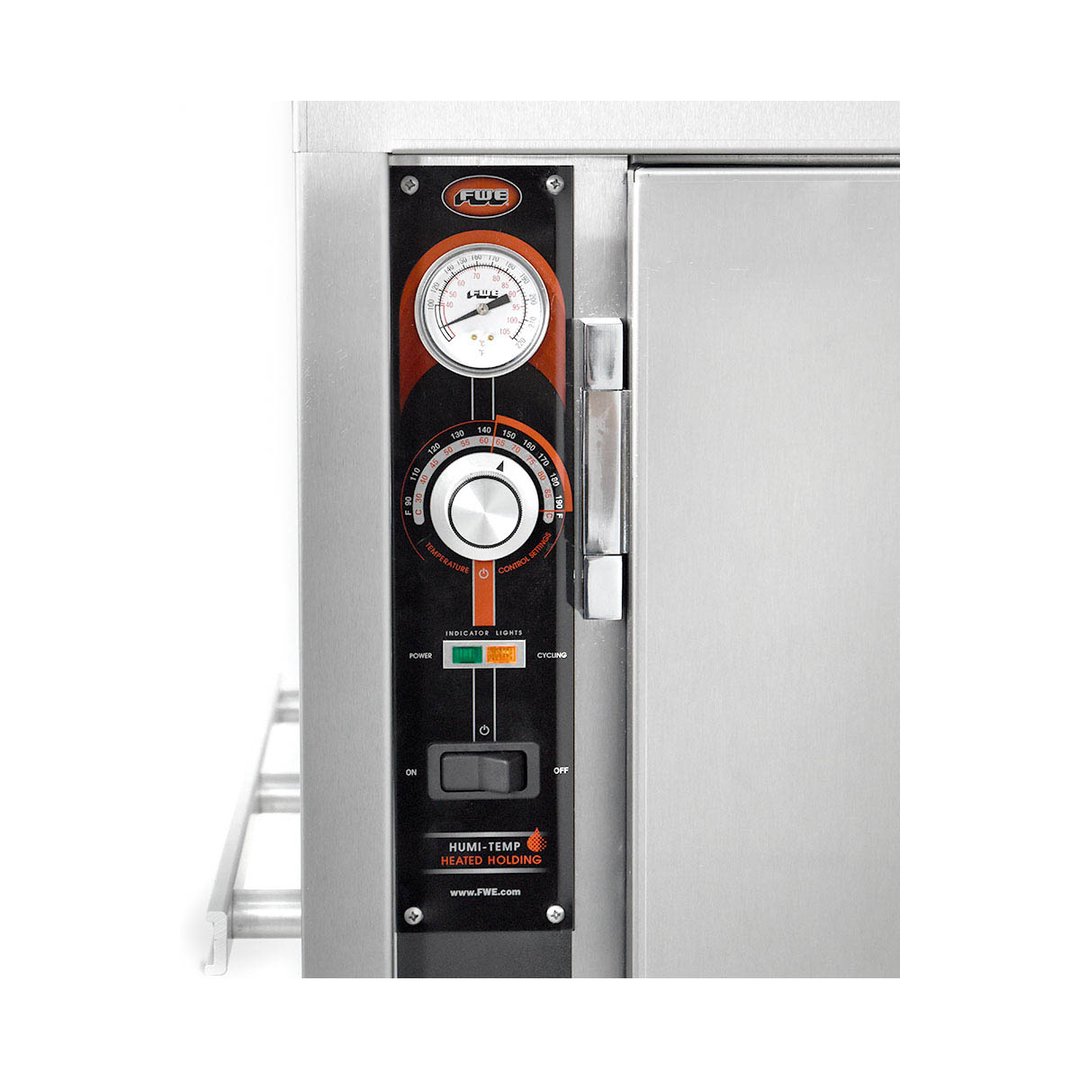

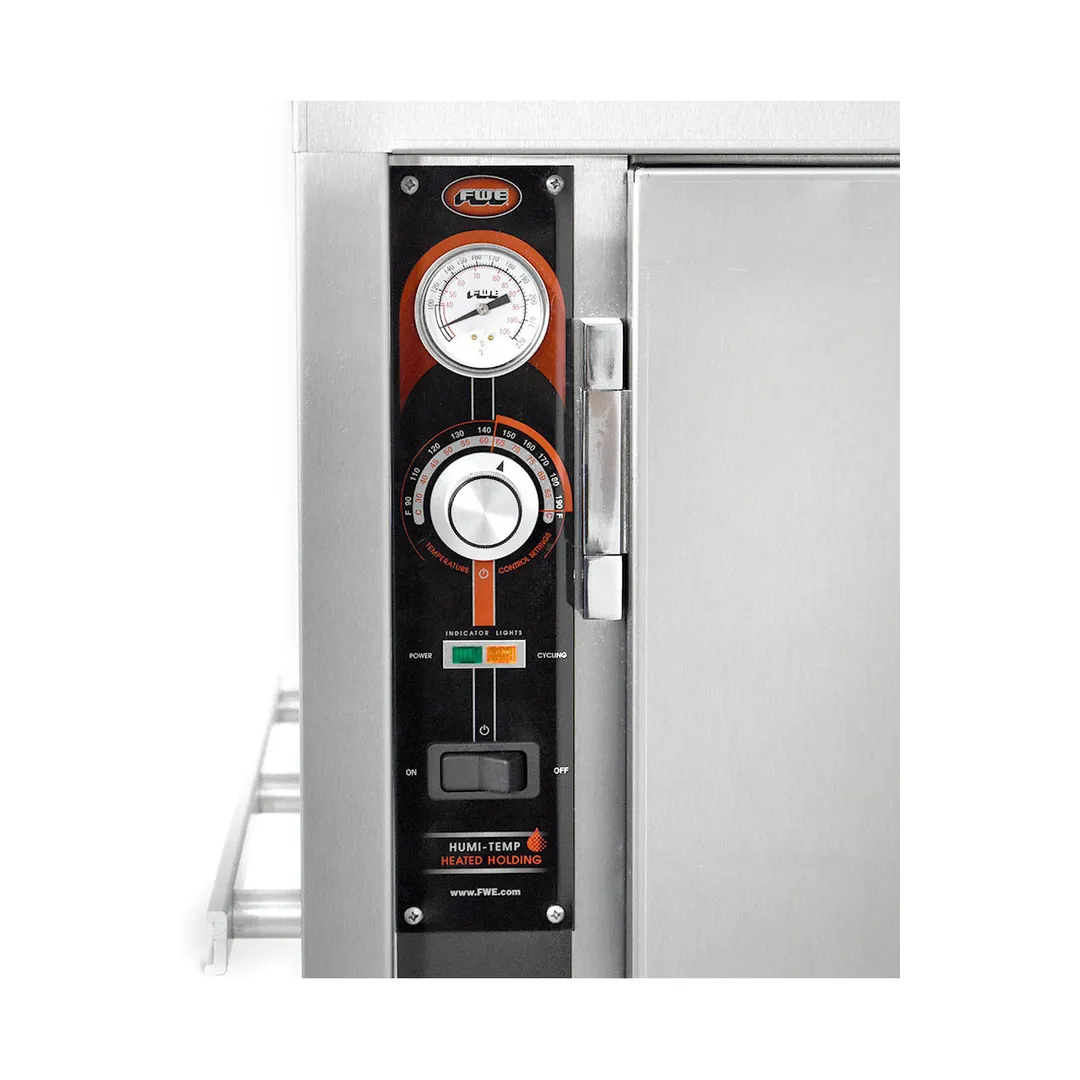

Control Panel

Mechanical Controls - Mechanical controls
Humi-Temp Controls - Controls are up-front, easy to read and set, and include a full range F/C thermostat for easy operation. Thermometer continuously reads cabinet temperature - even without power source!

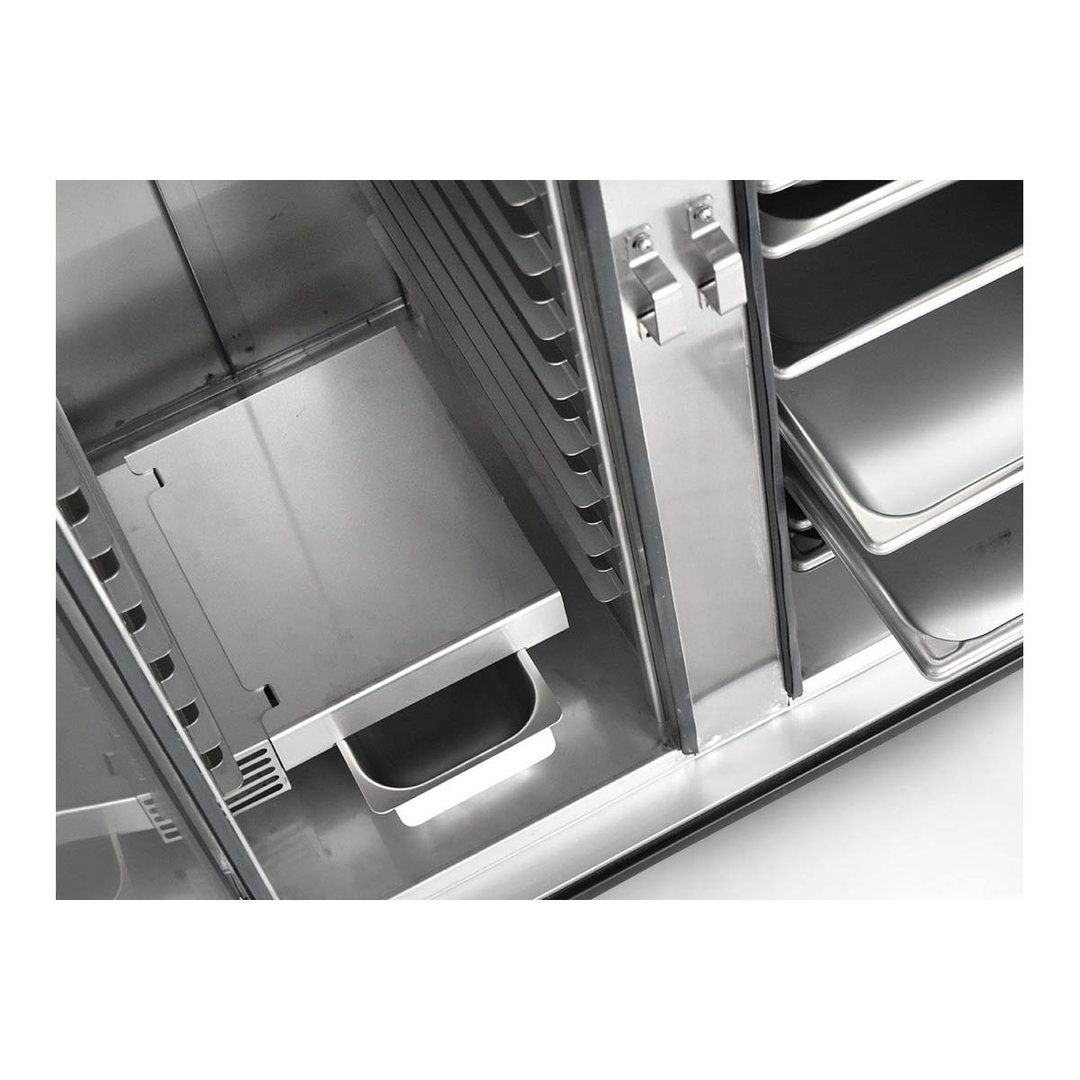

Passive Humidity Pan

Passive humidity pan; provided to add optional humidity to cabinet environment and to prevent drying out food, improving food quality.

Heat System

Humi-Temp Heat System - Heat source with passive humidity circulates heat evenly throughout cabinet.

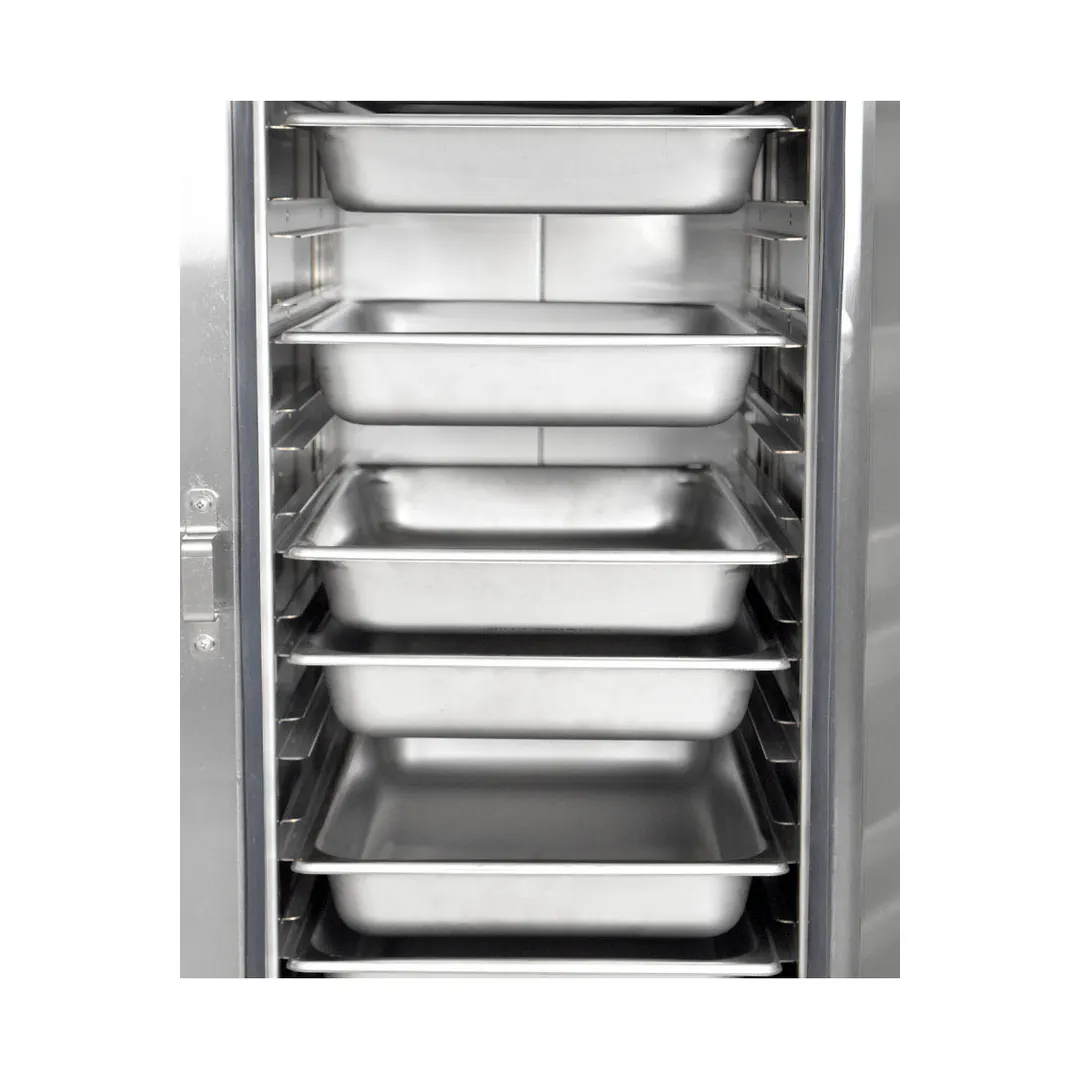

Slides and Shelves

Fixed Slides for 12x20 Pans - Accommodates shallow and and deep 12" x 20" pans , 18" x 13" trays and GN 1/1 containers. Unique pan slides racks' front edges are relieved for easy loading, one piece die stamped stainless steel for extra strength, and removable for easy cleaning.

FWE PS-1220-30 Specifications

OVERALL EXTERIOR DIMENSIONS IN. (mm) : 57.5″ (1461mm) H X 26,75" (679mm) D X 42" (1067mm) W
NO.OF DOOR : 2
CASTER SIZE : 5"
SHIP WT. LBS.(KG) : 350 (159)

From The Manufacturer

Heated Cabinet, mobile, (30) 12" x 20" x 2-1/2" pan capacity, 2-5/8" fixed spacing, Humi-temp heat & humidity system, adjustable thermostat, recessed controls, insulated, removable humidifier pan, (2) flush mounted doors, push bars, wraparound bumper, stainless steel interior & exterior, 6" casters (2) rigid & (4) swivel with brakes, cULus, UL EPH Classified, IPX4

Manufacturer	FWE
Model Number	PS-1220-30
Weight	350 lbs
Width	43″
Depth	26.75″
Height	57.5″
Size	1 compartment
Door Type	solid door
Door Style	full door(s)
Insulation	insulated
Exterior Finish	all stainless steel exterior
Heater	bottom mounted
Slide Centers	fixed on 2-5/8"
Section	2 section
