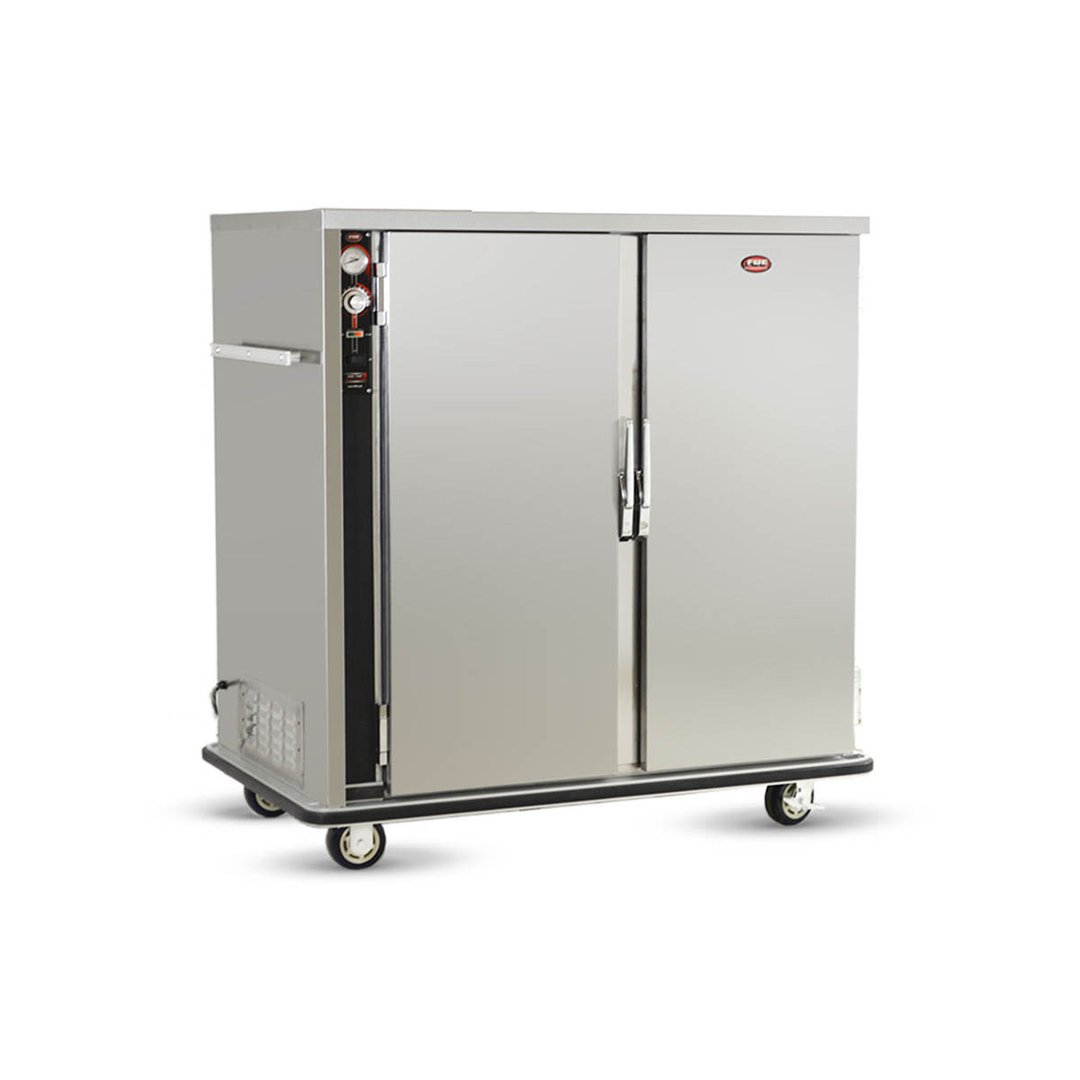

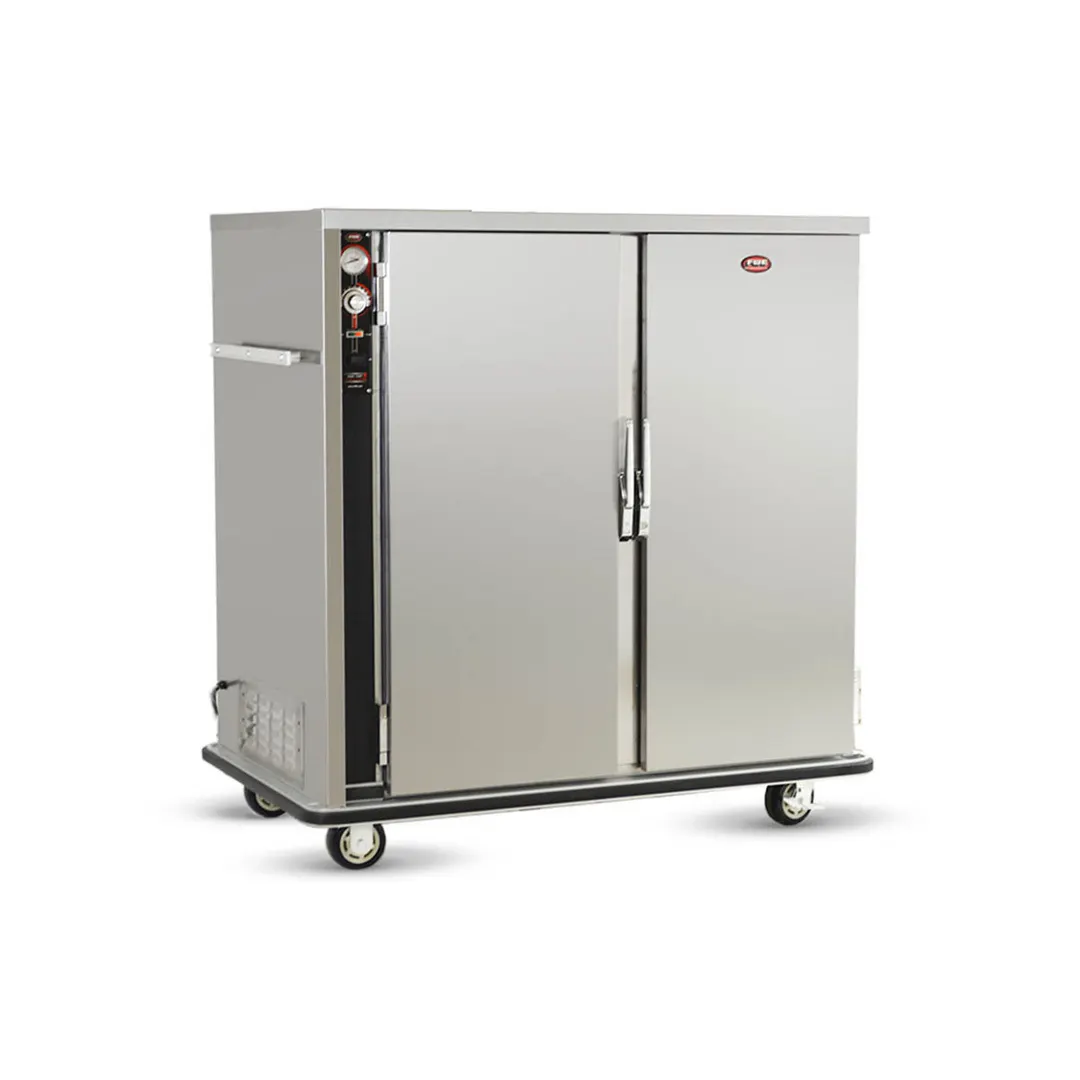

FWE TS-1826-30 Humidified Heated Holding Transport Cabinets

Benefits

Tray server keeps bulk foods hot, moist and oven fresh.

Construction

Stainless Steel / Insulated - Constructed of stainless steel, with welded base frame for added strength and durability - fully insulated cabinet and door provide energy efficient heating and longer holding.

Control Panel

Humi-Temp Controls - Controls are up-front, easy to read and set, and include a full range F/C thermostat for easy operation. Thermometer continuously reads cabinet temperature - even without power source!
Mechanical Controls - Mechanical controls

Handles

Push Pull Handles - Push/pull handles allow for easy maneuvering. Handles are secured to the unit with reinforced backing plate. Ergonomically designed to be easy on the hands.

Heat System

Humi-Temp Heat System - Heat source with passive humidity circulates heat evenly throughout cabinet.

Slides and Shelves

Adjustable Slides for 18x26 Trays - Unique tray slide design holds trays or pans by the bottom for greater support for heavy food items - tray slides are adjustable and removable for thorough interior cleaning

FWE TS-1826-30 Specifications

OVERALL EXTERIOR DIMENSIONS IN. (mm) : 61.5″ (1562mm) H X 33,25" (845mm) D X 54" (1372mm) W
NO OF DOORS : 2
CASTER SIZE : 6"
SHIP WT. LBS.(KG) : 465 (211)

From The Manufacturer

Heated Cabinet, mobile, insulated, (2) doors, humi-temp heat system with eye level controls, (20) pair universal tray slides, 4-1/2" OC, adjustable on 1-1/2" increments, for 18" x 26", 14" x 18", 12" x 20" & GN 1/1, removable slides & uprights, includes push bar handles on each end & full perimeter bumper, stainless steel interior & exterior, 6" casters (2) rigid & (4) swivel, UL, cULus, NSF, IPX4

Manufacturer	FWE
Model Number	TS-1826-30
Weight	465 lbs
Width	54″
Depth	33.25″
Height	61.5″
Size	1 compartment
Door Type	solid door
Door Style	full door(s)
Insulation	insulated
Exterior Finish	all stainless steel exterior
Heater	bottom mounted
Slide Centers	adjustable on 1-1/2"
Section	2 section

	FWE UHST-20 Insulated Mobile Heated Cabinet	FWE UHS-20 Full Height Insulated Mobile Heated Cabinet	FWE TS-1826-30 Full Height Insulated Mobile Heated Cabinet	FWE TS-1826-24 Full Height Insulated Mobile Heated Cabinet	FWE TS-1826-14 1/2 Height Insulated Mobile Heated Cabinet	FWE PS-1220-20 1/2 Height Insulated Mobile Heated Cabinet	FWE PHTT-10 Full Height Insulated Mobile Heated Cabinet	FWE PHTT-10-CV Insulated Mobile Heated Cabinet	FWE TST-30 Insulated Mobile Heated Cabinet
Customer Rating	Customer Rating	Customer Rating	Customer Rating	Customer Rating	Customer Rating	Customer Rating	Customer Rating	Customer Rating	Customer Rating
Price	Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping	ShippingFree Shipping
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)54	WIDTH (SIDE - SIDE)58.5	WIDTH (SIDE - SIDE)54	WIDTH (SIDE - SIDE)54	WIDTH (SIDE - SIDE)54	WIDTH (SIDE - SIDE)43	WIDTH (SIDE - SIDE)27.75	WIDTH (SIDE - SIDE)27.75	WIDTH (SIDE - SIDE)51.75
Manufacturer	ManufacturerFWE	ManufacturerFWE	ManufacturerFWE	ManufacturerFWE	ManufacturerFWE	ManufacturerFWE	ManufacturerFWE	ManufacturerFWE	ManufacturerFWE
Door Type	Door Typesolid door	Door Typesolid door	Door Typesolid door	Door Typesolid door	Door Typesolid door	Door Typesolid door	Door Typesolid door	Door Typesolid door	Door Typesolid door
Size	Size1 compartment	Size1 compartment	Size1 compartment	Size1 compartment	Size1 compartment	Size1 compartment	Size1 compartment	Size1 compartment	Size1 compartment
Full Size Sheet Pan Capacity	Full Size Sheet Pan Capacity(20) 18" x 26" pans	Full Size Sheet Pan Capacity(20) 18" x 26" pans	Full Size Sheet Pan Capacity(20) 18" x 26" pans	Full Size Sheet Pan Capacity(12) 18" x 26" pans	Full Size Sheet Pan Capacity(10) 18" x 26" pans	Full Size Sheet Pan Capacity-	Full Size Sheet Pan Capacity(10) 18" x 26" pans	Full Size Sheet Pan Capacity(10) 18" x 26" pans	Full Size Sheet Pan Capacity(20) 18" x 26" pans
Height	Height61" - 66"	Height61" - 66"	Height61" - 66"	Height49" - 54"	Height31" - 36"	Height43" - 48"	Height61" - 66"	Height61" - 66"	Height61" - 66"
Half Size Sheet Pan Capacity	Half Size Sheet Pan Capacity(40) 13" x 18" pans	Half Size Sheet Pan Capacity(40) 13" x 18" pans	Half Size Sheet Pan Capacity(40) 13" x 18" pans	Half Size Sheet Pan Capacity(32) 13" x 18" pans	Half Size Sheet Pan Capacity(20) 13" x 18" pans	Half Size Sheet Pan Capacity-	Half Size Sheet Pan Capacity(20) 13" x 18" pans	Half Size Sheet Pan Capacity(20) 13" x 18" pans	Half Size Sheet Pan Capacity(40) 13" x 18" pans
Full Size Hotel Pan Capacity	Full Size Hotel Pan Capacity(40) 12" x 20" pans	Full Size Hotel Pan Capacity(40) 12" x 20" pans	Full Size Hotel Pan Capacity(20) 12" x 20" pans	Full Size Hotel Pan Capacity(12) 12" x 20" pans	Full Size Hotel Pan Capacity(10) 12" x 20" pans	Full Size Hotel Pan Capacity(20) 12" x 20" pans	Full Size Hotel Pan Capacity(20) 12" x 20" pans	Full Size Hotel Pan Capacity(20) 12" x 20" pans	Full Size Hotel Pan Capacity(20) 12" x 20" pans
Insulation	Insulationinsulated	Insulationinsulated	Insulationinsulated	Insulationinsulated	Insulationinsulated	Insulationinsulated	Insulationinsulated	Insulationinsulated	Insulationinsulated
Exterior Finish	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior
Door Style	Door Stylefull door(s)	Door Stylefull door(s)	Door Stylefull door(s)	Door Stylefull door(s)	Door Stylefull door(s)	Door Stylefull door(s)	Door Stylefull door(s)	Door Stylefull door(s)	Door Stylefull door(s)
Heater	Heatertop mounted	Heaterbottom mounted	Heaterbottom mounted	Heaterbottom mounted	Heaterbottom mounted	Heaterbottom mounted	Heaterbottom mounted	Heaterbottom mounted	Heatertop mounted
G/N Capacity	G/N Capacity(20) 2/1 pans	G/N Capacity(20) 2/1 pans	G/N Capacity(20) 1/1 pans	G/N Capacity(12) 1/1 pans	G/N Capacity(10) 1/1 pans	G/N Capacity(20) 1/1 pans	G/N Capacity(20) 1/1 pans	G/N Capacity(20) 1/1 pans	G/N Capacity(30) 1/1 pans
Slide Centers	Slide Centersadjustable on 1-1/2"	Slide Centersadjustable on 1-1/2"	Slide Centersadjustable on 1-1/2"	Slide Centersadjustable on 1-1/2"	Slide Centersadjustable on 1-1/2"	Slide Centersfixed on 2-5/8"	Slide Centersadjustable on 1-1/2"	Slide Centersadjustable on 1-1/2"	Slide Centersadjustable on 1-1/2"
Section	Section2 section	Section2 section	Section2 section	Section2 section	Section2 section	Section2 section	Section1 section	Section1 section	Section2 section

FWE TS-1826-30 Full Height Insulated Mobile Heated Cabinet
