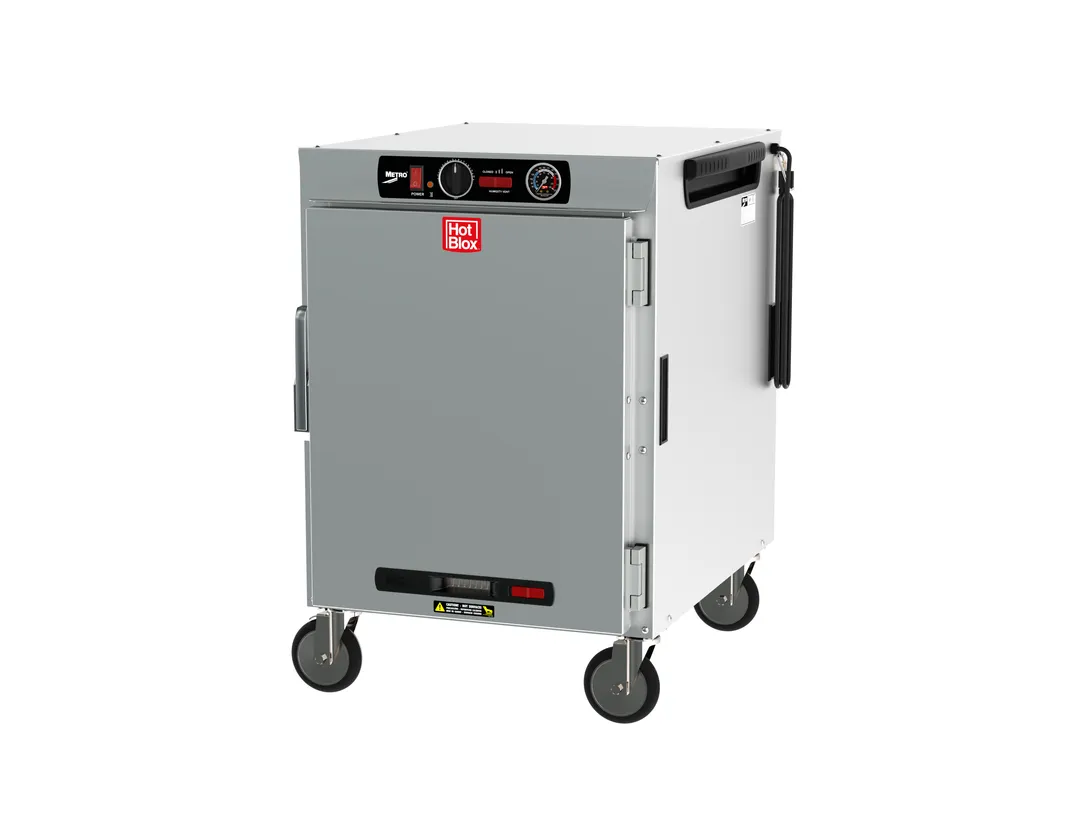

Metro HBCW8-ASPC-M HotBlox Insulated Holding Cabinet, Mobile, Pass-Thru, 8-Pan Capacity, Analog Ctrl, Solid Front & Clear Rear Door, 120V 875W

Metro HotBlox

Versatile, right-sized holding that adapts to your unique space & menu needs.

Features

• 3 space saving sizes to fit in narrow spaces, under counters or on top, or stackable for vertical space efficiency.
• Flexibility to hold moist or crispy food with the same cabinet using Metro's hybrid convection–radiant heating technology
• Simple Analog Control Option: Electro-mechanical thermostat and "always-on" thermometer is a more cost effective option and ideal for transport applications.
• Doors: Solid insulated for better energy efficiency & rigidity.

Specifications

• Cabinet Construction: .063" (1.8mm) thick aluminum body with high-density fiberglass insulation.
• N8 & W8 with 2" (51mm) polyolifin casters
• Solid Doors: 063" (1.8mm) aluminum with welded corners, fully insulated with 1" (25.4mm) thick fiberglass insulation. Each door includes adjustable fresh air intake vent. Field reversible, double hinged, 180° swing.
• Door Latch: Flush mounted, chrome plated high strength magnetic latch with lever action release.
• Door Gaskets: High temperature, cabinet mounted santoprene gaskets. Removable without tools.
• Pan Slides: Nickel chrome plated fixed wire, spaced on 2.75" (70mm) centers.
• Power Cord: 6' (183cm) long cord with NEMA 5-15P plug on 120V models and NEMA 6-15P on 220-240V models
• Heating System: Thermostatically controlled hybrid convection - radiant system. 675W heating element, circulating fan, ducted air circulating system with 200W radiant heating element under floor surface
• Performance: 90°F (32°C) to 190°F (88°C) temperature range. Achievable humidity with pan of water on floor at 160°F (71°C) is approximately 33% RH
• Recommended Clearances for Enclosures: 1.5" (38mm) on cabinet sides and back. Always maintain at least 1" of space under cabinet to countertop surface.
• Stacking Requirements: Maximum stacked height shall never exceed 68" (1727mm). Maximum (3) N4 cabinets per stacked unit. Stacked cabinets must maintain 2" (51mm) spacing using proper stacking kit with proper ventilation.
